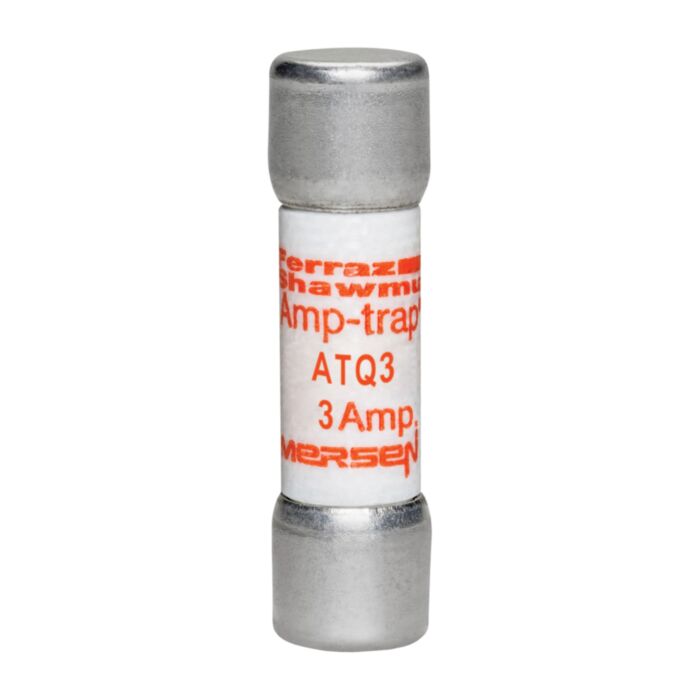

MERSEN FUSE 500V 3A TD MIDGET FUSE ATQ3
MPN: ATQ3
Special Price
£5.92
£4.93
Regular Price
£13.14
MERSEN FUSE 500V 3A TD MIDGET FUSE ATQ3 is available to buy in increments of 10
Why Choose the Fuse ATQ - Midget - Time-Delay 500VAC 30A Ferrule Amp-Trap®?
The Fuse ATQ - Midget provides reliable circuit protection with its time-delay characteristic, making it ideal for circuits with temporary inrush currents. Rated at 500VAC and 30A, it ensures dependable operation in both commercial and industrial electrical panels.
Its compact midget design enables easy installation in space-restricted applications, while robust Amp-Trap® construction guarantees long-term performance and reduced nuisance tripping. Choose this fuse for enhanced safety and efficient equipment protection.
Product Code: ATQ30
Key Benefits
- Time-delay feature protects against temporary overloads and inrush currents.
- Compact midget size allows installation in tight spaces.
- High breaking capacity of 10 kA ensures safety during fault conditions.
- Durable Amp-Trap® construction reduces nuisance tripping and extends fuse life.
- Tin-plated copper ferrule terminals provide reliable electrical connections.
Compatibility
This fuse is compatible with standard clip mounting fuse holders designed for midget size fuses and is suitable for use in low voltage UL/CSA fuse applications requiring 30A, 500VAC time-delay protection.
Applications
- Commercial and industrial electrical panels
- Motor circuits with temporary inrush currents
- Lighting and heating circuits
- General purpose circuit protection in machinery and equipment
Technical Specifications
- Item number: ATQ30
- Description: Fuse ATQ - Midget - Time-Delay 500VAC 30A Ferrule Amp-Trap®
- EAN/UPC Code: 782001904630
- Rated voltage AC UL: 500 V
- Frequency (Hz): 50/60 Hz
- Ampere Rating: 30 A
- AC or DC: AC
- Fuse Class: Midget
- Speed/Characteristic: Time Delay
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 10 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Ferrule
- Product Diameter: 10.3 mm
- Product Length: 38.1 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.068 kg
- Sell Pack Width: 22.4 mm
- Sell Pack Length: 41.4 mm
- Sell Pack Height: 54.1 mm
- Product group: Low Voltage UL/CSA Fuses
- Body/Insulating Material: GMG
- Product Weight: 0.0064 kg
Frequently Asked Questions
What does time-delay mean for this fuse?
Time-delay means the fuse can tolerate temporary current surges, such as motor start-up currents, without blowing immediately. This helps prevent unnecessary interruptions.
Is this fuse suitable for DC applications?
No, this fuse is rated for AC applications only, specifically at 500VAC as per its specifications.
Can this fuse be used in residential circuits?
While primarily designed for commercial and industrial use, it can be used in residential circuits if the electrical requirements match the fuse’s ratings and characteristics.
What is the breaking capacity of this fuse?
The fuse has a maximum interrupting rating of 10 kA at AC, ensuring safe disconnection during fault conditions.
Common Search Terms
ATQ fuse, midget fuse 30A, time-delay fuse 500VAC, Amp-Trap fuse, clip mount fuse, 10kA breaking capacity fuse, industrial circuit protection fuse
| Manufacturer Part Number | ATQ3 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 0782001906061 |
| Height | 38.1mm |
| Width | 10.3mm |
| Depth | 10.3mm |
| HS Code | 85361010 |
| Country of Manufacture | Mexico |
| Manufacturer | Mersen |
