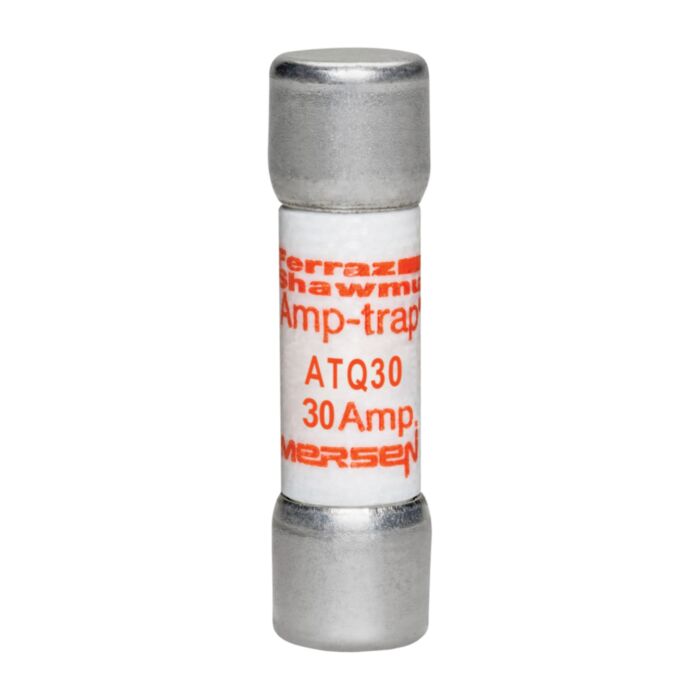

MERSEN FUSE 500V 30A TD MIDGET FUSE ATQ30
MPN: ATQ30
Special Price
£5.92
£4.93
Regular Price
£13.14
MERSEN FUSE 500V 30A TD MIDGET FUSE ATQ30 is available to buy in increments of 10
Why Choose the Fuse ATQ - Midget - Time-Delay 500VAC 30A Ferrule Amp-Trap®?
The ATQ30 fuse delivers reliable circuit protection for demanding applications, offering a 30A time-delay performance at up to 500VAC. Its midget ferrule design ensures easy integration into compact control panels and fuse holders.
Engineered for enhanced safety and reduced nuisance tripping, the Amp-Trap® time-delay feature accommodates inrush currents, safeguarding sensitive equipment and improving system uptime.
Technical Specifications
- Item number: ATQ30
- Description: Fuse ATQ - Midget - Time-Delay 500VAC 30A Ferrule Amp-Trap®
- EAN/UPC Code: 782001904630
- Rated voltage AC UL: 500 V
- Frequency (Hz): 50/60 Hz
- Ampere Rating: 30 A
- AC or DC: AC
- Fuse Class: Midget
- Speed/Characteristic: Time Delay
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 10 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Ferrule
- Product Diameter: 10.3 mm
- Product Length: 38.1 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.068 kg
- Sell Pack Width: 22.4 mm
- Sell Pack Length: 41.4 mm
- Sell Pack Height: 54.1 mm
- Product group: Low Voltage UL/CSA Fuses
- Body/Insulating Material: GMG
- Product Weight: 0.0064 kg
Product Code: ATQ30
Key Benefits
- Time-delay feature reduces nuisance tripping during inrush currents.
- Compact midget ferrule design for easy installation in tight spaces.
- High breaking capacity of 10 kA ensures robust circuit protection.
- Tin-plated copper terminals provide reliable and corrosion-resistant connections.
- Compatible with standard clip mounting for quick replacement.
Compatibility
The ATQ30 fuse is compatible with a wide range of control panels and fuse holders designed for midget time-delay fuses. It meets UL and CSA standards for low voltage applications and is suitable for use in AC circuits up to 500 V.
Applications
- Industrial motor protection circuits
- Control panel circuit protection
- HVAC systems
- Lighting circuits
- General-purpose electrical equipment requiring time-delay fuses
Frequently Asked Questions
What does time-delay mean on this fuse?
Time-delay means the fuse can tolerate temporary current surges, such as motor start-up currents, without blowing. This prevents unnecessary interruptions while still protecting against sustained overloads.
Can this fuse be used in DC circuits?
No, the ATQ30 fuse is rated for AC circuits only, with a maximum voltage of 500 V AC.
What is the breaking capacity of this fuse?
The fuse has a maximum interrupting rating of 10 kA at rated voltage, ensuring it can safely interrupt high fault currents.
Is this fuse suitable for motor protection?
Yes, the time-delay characteristic makes it ideal for protecting motors and other equipment with inrush currents.
Common Search Terms
ATQ30 fuse, midget time-delay fuse, 30 amp fuse 500VAC, Amp-Trap fuse, ferrule fuse, motor protection fuse, clip mount fuse, UL CSA fuse
| Manufacturer Part Number | ATQ30 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 0782001904630 |
| Height | 38.1mm |
| Width | 10.3mm |
| Depth | 10.3mm |
| HS Code | 85361050 |
| Country of Manufacture | Mexico |
| Manufacturer | Mersen |
