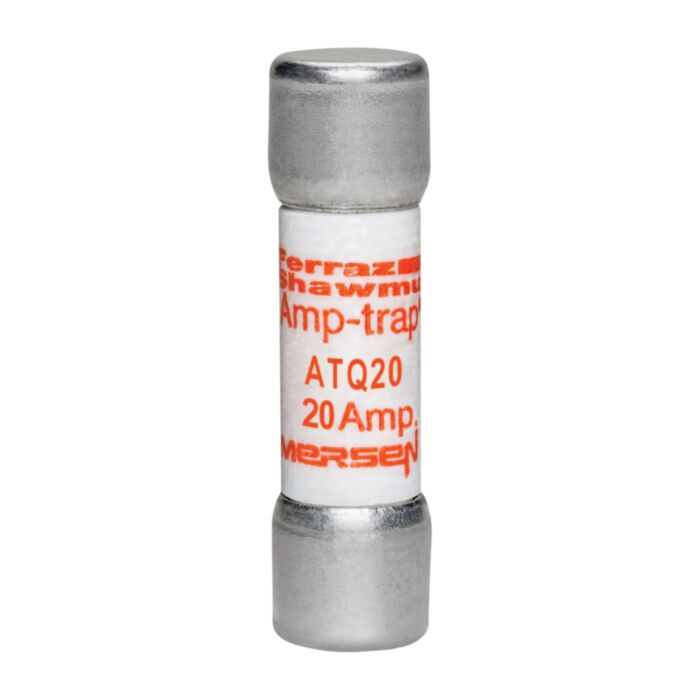

MERSEN FUSE 500V 20A TD MIDGET FUSE ATQ20
MPN: ATQ20
Special Price
£5.92
£4.93
Regular Price
£13.14
MERSEN FUSE 500V 20A TD MIDGET FUSE ATQ20 is available to buy in increments of 10
Why Choose the Fuse ATQ – Midget – Time-Delay 500VAC 20A Ferrule Amp-Trap®?
The Fuse ATQ20 delivers reliable time-delay performance for circuits with moderate inrush currents, making it ideal for safeguarding lighting, control boards, and power supply applications up to 500VAC. Its compact midget design allows for flexible integration into standard 13/32" x 1-1/2" fuse holders.
Engineered with precision, the 20A Amp-Trap® Ferrule configuration ensures stable, low-loss connections while providing superior overcurrent protection and extended equipment lifespan. Certified to critical safety standards, it offers consistent operation in demanding industrial environments.
Technical Specifications
- Item number: ATQ20
- Description: Fuse ATQ - Midget - Time-Delay 500VAC 20A Ferrule Amp-Trap®
- EAN/UPC Code: 782001904616
- Rated voltage AC UL: 500 V
- Frequency (Hz): 50/60 Hz
- Ampere Rating: 20 A
- AC or DC: AC
- Fuse Class: Midget
- Speed/Characteristic: Time Delay
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 10 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Ferrule
- Product Diameter: 10.3 mm
- Product Length: 38.1 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.068 kg
- Sell Pack Width: 22.4 mm
- Sell Pack Length: 41.4 mm
- Sell Pack Height: 54.1 mm
- Product group: Low Voltage UL/CSA Fuses
- Body/Insulating Material: GMG
- Product Weight: 0.0064 kg
Product Code: ATQ20
Key Benefits
- Reliable time-delay protection for circuits with moderate inrush currents
- Compact midget design fits standard fuse holders
- Stable, low-loss connections with tin-plated copper ferrule terminals
- High breaking capacity of 10 kA for enhanced safety
- Durable GMG insulating body ensures long service life
Compatibility
The ATQ20 fuse is compatible with standard 13/32" x 1-1/2" midget fuse holders designed for time-delay fuses and is suitable for use in industrial control panels, lighting circuits, and power supply protection systems operating up to 500VAC.
Applications
- Lighting circuit protection
- Control board safeguarding
- Power supply overcurrent protection
- Industrial machinery and equipment
- HVAC system circuits
Frequently Asked Questions
What is the breaking capacity of the ATQ20 fuse?
The ATQ20 fuse has a maximum breaking capacity of 10 kA at 500VAC.
Can the ATQ20 fuse be used in DC circuits?
No, this fuse is rated for AC applications only.
What type of fuse holder is compatible with the ATQ20?
It fits standard 13/32" x 1-1/2" midget fuse holders designed for time-delay fuses.
What material are the terminals made from?
The terminals are made from tin-plated copper for reliable conductivity and corrosion resistance.
Common Search Terms
ATQ fuse, 20 amp time-delay fuse, midget fuse 500VAC, Amp-Trap fuse, ferrule terminal fuse, industrial fuse 20A, low voltage fuse, UL CSA fuse
| Manufacturer Part Number | ATQ20 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 0782001904616 |
| Height | 38.1mm |
| Width | 10.3mm |
| Depth | 10.3mm |
| HS Code | 85361050 |
| Country of Manufacture | Mexico |
| Manufacturer | Mersen |
