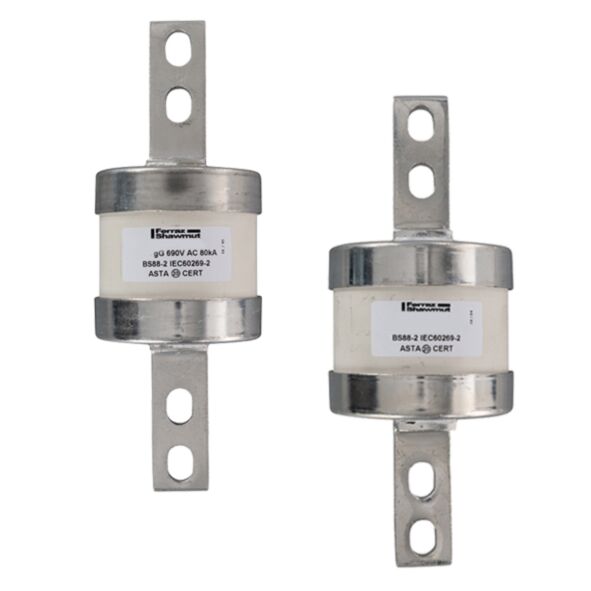

MERSEN FUSE 500A69C2 BTTM69V500

Why Choose the BS88 gG Type C2 690VAC 69V500A BTTM Central Bolted Tag Fuse-Link?

Engineered to IEC BS88 standards, the BTTM69V500 fuse-link delivers reliable circuit protection for industrial and commercial power systems rated up to 690VAC. Its robust gG Type C2 design ensures full-range fault interruption and sustained performance under demanding conditions.

The central bolted tag configuration supports secure, low-resistance terminations, making it ideal for panel builders and OEM applications where dependability and safety are paramount. Choose BTTM69V500 for proven protection and long-term operational integrity.

Technical Specifications

• Item number: Z1006640
• Catalogue No: BTTM69V500
• Description: British Standard fuse-link IEC BS88 gG Type C2 690VAC 69V500A BTTM Central Bolted Tag
• EAN/UPC Code: 3605340485219
• Rated voltage AC IEC: 690 V
• In M Ich: 69V500 A
• RoHS Compliant: Yes
• AC or DC: AC
• Speed/Characteristic: gG
• Fuse Size: C2
• Mounting: Bolted
• Clearing I2t At Rated Voltage: 4250000 A²s
• Melting I2t: 850000 A²s
• AC Max I.R./Breaking Capacity: I1: 80 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Central Bolted Tag
• Product Diameter: 74.4 mm
• Product Length: 212 mm
• Sell Pack Quantity: 1 EA
• Sell Pack Weight: 1.11 kg
• Sell Pack Width: 83 mm
• Sell Pack Length: 215 mm
• Sell Pack Height: 78 mm
• Product group: Low Voltage IEC Fuses
• Body/Insulating Material: Ceramic
• Product Weight: 1.11 kg
• Power Dissipation at Rated Current Value: 48 W

Product Code: BTTM69V500

Key Benefits

• Complies with IEC BS88 standards for assured quality and safety.
• Full-range gG characteristic provides comprehensive protection against overloads and short circuits.
• High breaking capacity of 80 kA ensures reliable interruption of fault currents.
• Central bolted tag terminals offer secure, low-resistance connections for enhanced performance.
• Ceramic body construction delivers excellent mechanical strength and heat resistance.
• RoHS compliant, supporting environmentally responsible installations.

Compatibility

The BTTM69V500 fuse-link is compatible with standard IEC BS88 fuse holders designed for C2 size fuses with bolted connections. It integrates seamlessly into low voltage industrial and commercial power distribution systems operating up to 690VAC.

Applications

• Industrial power distribution panels and switchgear.
• Commercial electrical installations requiring high fault current protection.
• OEM equipment requiring standardised fuse protection with bolted tag terminals.
• Protection of motors, transformers, and cables in low voltage networks.
