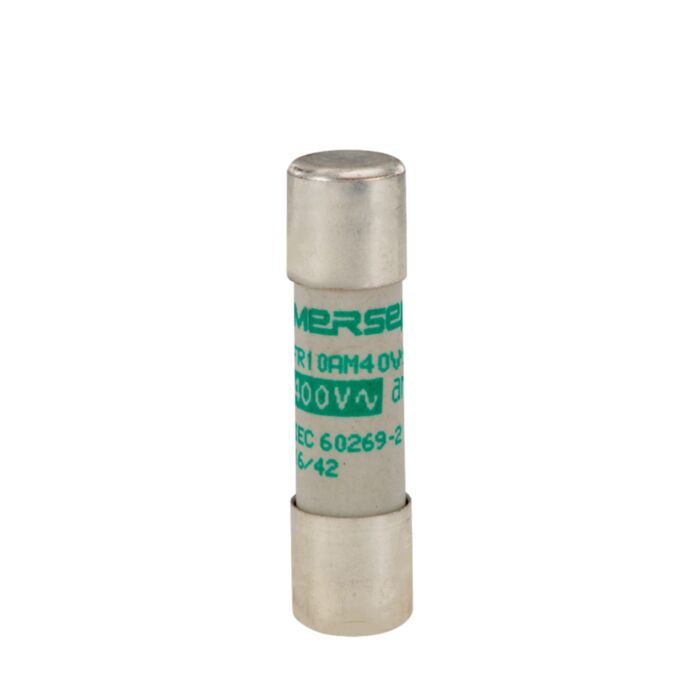

MERSEN FUSE 400V CP 10X38 AM 25A S/I G217172
MPN: G217172
Alt. SKU: FR10AM40V25
Special Price
£0.6930
£0.5775
Regular Price
£1.26
MERSEN FUSE 400V CP 10X38 AM 25A S/I G217172 is available to buy in increments of 10
Why Choose the Cylindrical Fuse-Link aM Size 10x38 IEC 400VAC 25A (FR10AM40V25)?
Engineered for demanding industrial applications, this cylindrical fuse-link provides reliable protection for motor circuits up to 25A at 400VAC, conforming to IEC standards. Its compact 10x38mm design facilitates straightforward integration into space-constrained panels and assemblies.
With rapid response to overloads and short-circuit conditions, the FR10AM40V25 minimises downtime and enhances system safety. Robust construction and proven performance make this fuse-link a dependable choice for safeguarding your electrical installations.
Technical Specifications
- Item number: G217172
- Catalogue No: FR10AM40V25
- Description: Cylindrical fuse-link aM Size 10x38 IEC 400VAC 25A
- EAN/UPC Code: 8430399008103
- Rated voltage AC IEC: 400 V
- Ampere Rating: 25 A
- AC or DC: AC
- Speed/Characteristic: aM
- Fuse Size: 10x38
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 120 kA
- Connection/Terminal Material: Silver-Plated Copper
- Connection/Terminal Type: Ferrule
- Product Diameter: 10.3 mm
- Product Length: 38 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.083 kg
- Sell Pack Width: 55 mm
- Sell Pack Length: 81 mm
- Sell Pack Height: 14 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.0083 kg
- Power Dissipation at Rated Current Value: 1.2 W
Product Code: FR10AM40V25
Key Benefits
- Reliable protection for motor circuits with 25A rating at 400VAC
- Compact 10x38mm size ideal for space-constrained installations
- Rapid response to overloads and short-circuit conditions minimising downtime
- High breaking capacity of 120 kA ensures enhanced system safety
- Durable ceramic body for long-lasting performance
- Silver-plated copper terminals provide excellent conductivity and corrosion resistance
Compatibility
This fuse-link is compatible with IEC standard fuse holders and clips designed for 10x38 size fuses. It is suitable for use in low voltage industrial motor protection circuits and can be integrated into control panels and distribution boards requiring aM characteristic fuses.
Applications
- Protection of industrial motor circuits
- Control panels and distribution boards in manufacturing plants
- Overload and short-circuit protection in AC electrical installations
- Electrical equipment requiring IEC-compliant fuse protection
Frequently Asked Questions
What does the 'aM' characteristic mean?
The 'aM' characteristic indicates a motor protection fuse that provides selective tripping for motor circuits, allowing temporary overloads during motor start-up while protecting against short circuits.
Can this fuse be used in DC circuits?
No, this particular fuse is rated for AC applications only, as specified by its 400VAC rating.
What is the breaking capacity of this fuse?
The fuse has a maximum breaking capacity of 120 kA at 400VAC, suitable for high fault current environments.
How is this fuse mounted?
This fuse is designed for clip mounting, compatible with standard 10x38 fuse clips.
Common Search Terms
cylindrical fuse-link, aM fuse 25A, 10x38 fuse, IEC fuse 400VAC, motor protection fuse, industrial fuse-link, ceramic fuse 25 amp, high breaking capacity fuse
| Manufacturer Part Number | G217172 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 8430399008103 |
| Height | 38mm |
| Width | 10.3mm |
| Depth | 10.3mm |
| HS Code | 85361050 |
| Manufacturer | Mersen |
| Alternative Product SKU | FR10AM40V25 |
