MERSEN FUSE 355A69C1 BTM69V355
MPN: S1006634
Alt. SKU: BTM69V355
Special Price
£68.29
£56.91
Regular Price
£195.12

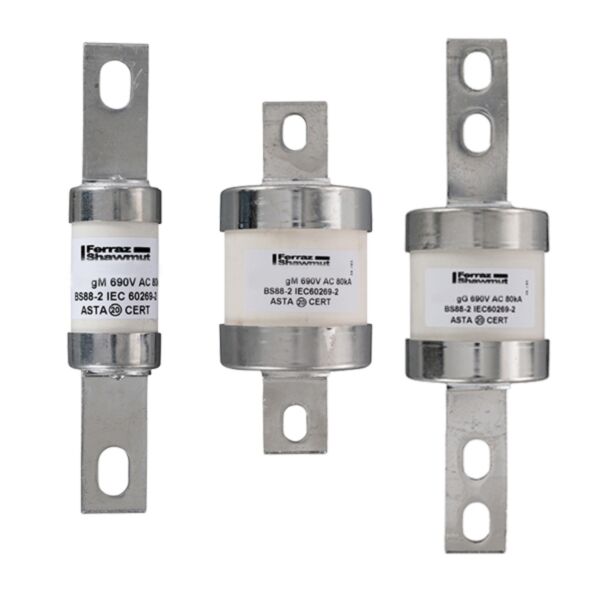

Why Choose the BS88 gM Type C1 690VAC 460VDC 355A BTM Central Bolted Tag BTM69V355?
Engineered to IEC and BS88 standards, the BTM69V355 fuse-link delivers reliable circuit protection for industrial and commercial low-voltage applications up to 690VAC and 460VDC. Its gM characteristic ensures both overload and motor circuit protection, making it versatile for demanding environments.
The 355A central bolted tag design allows secure, stable installation and efficient heat dissipation. Manufactured with high-quality materials, the BTM69V355 offers consistent performance, longevity, and compliance with strict electrical safety requirements.
Technical Specifications
- Item number: S1006634
- Catalogue No: BTM69V355
- Description: British Standard fuse-link IEC BS88 gM Type C1 690VAC 460VDC 355A BTM Central Bolted Tag
- EAN/UPC Code: 3605340485189
- Rated voltage AC IEC: 690 V
- Rated voltage DC IEC: 460 V
- Ampere Rating: 355 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gM
- Fuse Size: C1
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 1975000 A²s
- Melting I2t: 395000 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Central Bolted Tag
- Product Diameter: 59.1 mm
- Product Length: 212 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 0.69 kg
- Sell Pack Width: 67 mm
- Sell Pack Length: 210 mm
- Sell Pack Height: 60 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.69 kg
- Power Dissipation at Rated Current Value: 32 W
Product Code: BTM69V355
Key Benefits
- Complies with IEC and BS88 standards for assured quality and safety.
- gM characteristic provides both overload and motor circuit protection.
- High breaking capacity of 80 kA AC and 40 kA DC ensures robust fault clearing.
- Central bolted tag design allows secure installation and excellent heat dissipation.
- Ceramic body material enhances durability and electrical insulation.
- RoHS compliant, supporting environmental and regulatory requirements.
Compatibility
The BTM69V355 fuse-link is compatible with low voltage IEC fuse holders and switchgear designed for BS88 gM type fuses, particularly those accommodating C1 size fuse-links with central bolted tag connections. It is suitable for use in industrial motor circuits and general power distribution systems requiring 690VAC or 460VDC protection.
Applications
- Industrial motor protection circuits.
- Low voltage power distribution panels.
- Commercial electrical installations requiring reliable fuse protection.
- Control and automation systems with high fault current capabilities.
- Renewable energy systems operating within voltage and current ratings.
Frequently Asked Questions
What does the gM characteristic mean?
The gM characteristic indicates that the fuse is designed to provide protection against both overloads and short-circuits in motor circuits, ensuring sensitive and reliable protection for motors and associated equipment.
Can this fuse be used in DC applications?
Yes, the BTM69V355 is rated for use up to 460V DC, making it suitable for certain DC applications within its voltage and current limits.
What is the significance of the central bolted tag connection?
The central bolted tag provides a secure and stable connection point, ensuring reliable electrical contact and ease of installation or replacement.
Is this fuse RoHS compliant?
Yes, the BTM69V355 fuse-link complies with RoHS regulations, ensuring it meets environmental standards for hazardous substances.
Common Search Terms
BS88 fuse-link, gM fuse 355A, 690V fuse, 460V DC fuse, central bolted tag fuse, IEC low voltage fuse, motor protection fuse, ceramic body fuse, industrial fuse 355A, high breaking capacity fuse
