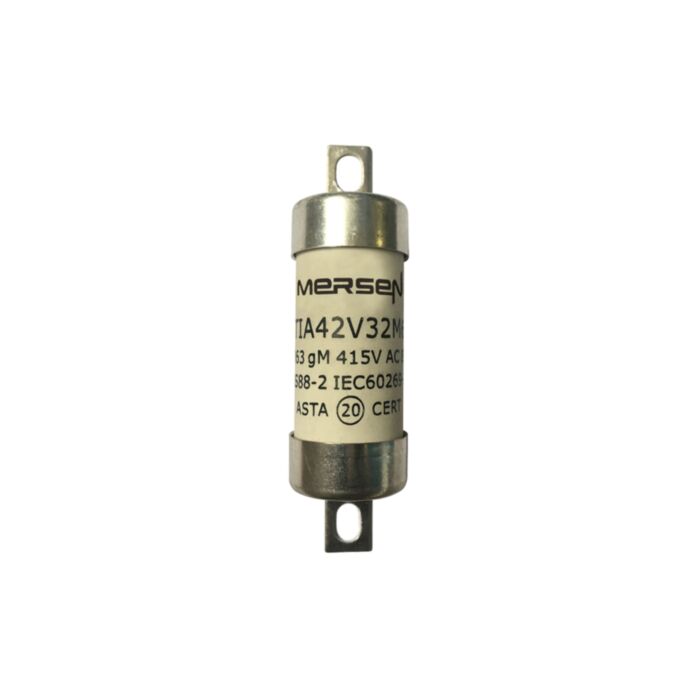

MERSEN FUSE 32M63A2 BTIA42V32M63
MPN: K226283
Alt. SKU: BTIA42V32M63
Special Price
£4.51
£3.76
Regular Price
£12.89
MERSEN FUSE 32M63A2 BTIA42V32M63 is available to buy in increments of 10
Why Choose the BS88 gM Type A2 415VAC 250VDC 32M63A BTIA Offset Tag BTIA42V32M63 Fuse-Link?
This high-performance BS88 IEC gM Type A2 fuse-link offers robust circuit protection for both industrial and commercial electrical systems, supporting up to 415VAC and 250VDC with a rated current of 32M63A. Engineered with an offset tag design, it ensures secure installation and reliable connectivity in demanding applications.
Certified to strict British Standards, the BTIA42V32M63 delivers dependable short-circuit and overload protection, safeguarding critical components and reducing downtime. Ideal for engineers and installers seeking proven performance and safety compliance in power distribution systems.
Technical Specifications
- Item number: K226283
- Catalogue No: BTIA42V32M63
- Description: British Standard fuse-link IEC BS88 gM Type A2 415VAC 250VDC 32M63A BTIA Offset Tag
- EAN/UPC Code: 3605340267587
- Rated voltage AC IEC: 415 V
- Rated voltage DC IEC: 250 V
- In M Ich: 32M63 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gM
- Fuse Size: A2
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 13900 A²s
- Melting I2t: 4000 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Tag
- Product Diameter: 21.9 mm
- Product Width: 23.5 mm
- Product Length: 86 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.54 kg
- Sell Pack Width: 85 mm
- Sell Pack Length: 110 mm
- Sell Pack Height: 50 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.054 kg
- Power Dissipation at Rated Current Value: 2.4 W
Product Code: BTIA42V32M63
Key Benefits
- Reliable protection for industrial and commercial electrical circuits.
- High breaking capacity: 80 kA AC and 40 kA DC for enhanced safety.
- Offset tag terminal design ensures secure and easy installation.
- Ceramic body provides excellent insulation and durability.
- RoHS compliant, meeting environmental and safety standards.
- Suitable for both AC and DC applications up to 415VAC and 250VDC.
Compatibility
The BS88 gM Type A2 fuse-link BTIA42V32M63 is compatible with standard BS88 fuse holders and switchgear designed for IEC low voltage fuses. Its offset tag terminals fit securely into bolted mounting systems commonly used in industrial power distribution panels and control gear assemblies.
Applications
- Industrial motor protection circuits.
- Power distribution boards and switchgear.
- Commercial electrical installations requiring BS88 compliant fuses.
- DC and AC circuit protection in manufacturing plants.
- Renewable energy systems with DC voltage requirements.
Frequently Asked Questions
What does the 'gM' characteristic mean for this fuse?
The 'gM' characteristic indicates that the fuse provides full-range protection against overloads and short circuits, suitable for motor circuits and general industrial applications.
Can this fuse be used in DC circuits?
Yes, this fuse is rated for both AC and DC applications, with a maximum rated DC breaking capacity of 40 kA at 250 VDC.
What is the significance of the offset tag terminal?
The offset tag terminal design ensures a secure and reliable connection, reducing the risk of loose contacts in bolted mounting systems.
Is this fuse RoHS compliant?
Yes, the BTIA42V32M63 fuse-link complies with RoHS directives, ensuring it is free from hazardous substances.
Common Search Terms
BS88 fuse, gM type fuse, 32M63A fuse-link, 415VAC fuse, 250VDC fuse, offset tag fuse, IEC fuse-link, industrial fuse, low voltage fuse, ceramic body fuse
| Manufacturer Part Number | K226283 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340267587 |
| Height | 86mm |
| Width | 23.5mm |
| Depth | 21.9mm |
| HS Code | 85361050 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BTIA42V32M63 |
