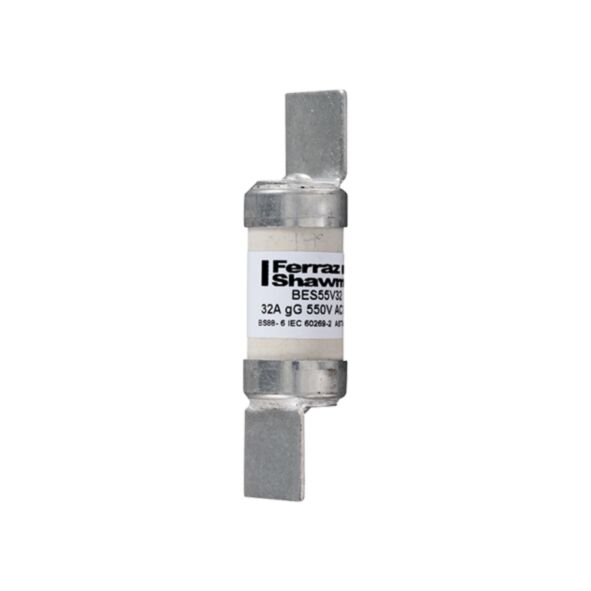

MERSEN FUSE 32A55F2 BES55V32
MPN: K1006650
Alt. SKU: BES55V32
Special Price
£3.70
£3.08
Regular Price
£10.56
MERSEN FUSE 32A55F2 BES55V32 is available to buy in increments of 10
Why Choose the BS88 gG Type F2 550VAC 32A BES Plain Blades BES55V32?
The BS88 gG Type F2 550VAC 32A BES55V32 fuse-link provides reliable circuit protection for industrial and commercial applications, fully compliant with IEC and BS88 standards. Designed for 550VAC operation, it delivers consistent performance and rapid fault interruption to safeguard equipment and minimise downtime.
Featuring robust plain blades for secure installation, the BES55V32 ensures low power loss and high breaking capacity. Ideal for panel builders and maintenance engineers seeking long-lasting, trusted protection in demanding electrical environments.
Product Code: BES55V32
Key Benefits
- High breaking capacity of 80 kA AC and 40 kA DC ensures maximum safety.
- Compliance with IEC and BS88 standards guarantees reliable performance.
- Ceramic body provides excellent insulation and durability.
- Low power dissipation of 2.9 W minimises energy loss during operation.
- Robust tin-plated copper offset blade terminals for secure and efficient connections.
- Compact size (17.1 mm diameter, 69 mm length) fits standard fuse holders.
Compatibility
The BES55V32 fuse-link is compatible with standard BS88 Type F2 fuse holders and clips designed for 32A, 550VAC applications. It is suitable for use in low voltage IEC fuse panels and switchgear requiring gG characteristic fuses for general purpose protection.
Applications
- Industrial motor protection circuits.
- Commercial electrical distribution panels.
- Control and automation systems.
- Transformer and capacitor protection.
- General purpose circuit protection in manufacturing plants.
Technical Specifications
- Item number: K1006650
- Catalogue No: BES55V32
- Description: British Standard fuse-link IEC BS88 gG Type F2 550VAC 32A BES Plain Blades
- EAN/UPC Code: 3605340485318
- Rated voltage AC IEC: 550 V
- Ampere Rating: 32 A
- RoHS Compliant: Yes
- AC or DC: AC
- Speed/Characteristic: gG
- Fuse Size: F2
- Mounting: Clip
- Clearing I2t At Rated Voltage: 3350 A²s
- Melting I2t: 670 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Blade
- Product Diameter: 17.1 mm
- Product Length: 69 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.29 kg
- Sell Pack Width: 75 mm
- Sell Pack Length: 87 mm
- Sell Pack Height: 36 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.029 kg
- Power Dissipation at Rated Current Value: 2.9 W
Frequently Asked Questions
What does the gG characteristic mean for this fuse?
The gG characteristic indicates a general purpose fuse suitable for protection of cables and equipment against overload and short circuits.
Is this fuse suitable for DC applications?
This fuse is primarily designed for AC applications up to 550 V, but it also has a maximum rated breaking capacity of 40 kA for DC.
Can I use this fuse in a panel with different fuse sizes?
No, this fuse is specifically size F2 and must be used in fuse holders designed to accommodate this size for proper fit and safety.
What is the expected lifespan of this fuse?
Lifespan depends on operating conditions, but the ceramic body and quality materials ensure long-term reliability under normal use.
Common Search Terms
BS88 fuse 32A, gG fuse 550VAC, Type F2 fuse-link, industrial fuse 32 amp, IEC fuse-link, ceramic body fuse, high breaking capacity fuse, plain blade fuse BES55V32
| Manufacturer Part Number | K1006650 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340485318 |
| Height | 69mm |
| Width | 17.1mm |
| Depth | 17.1mm |
| HS Code | 85361050 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BES55V32 |
