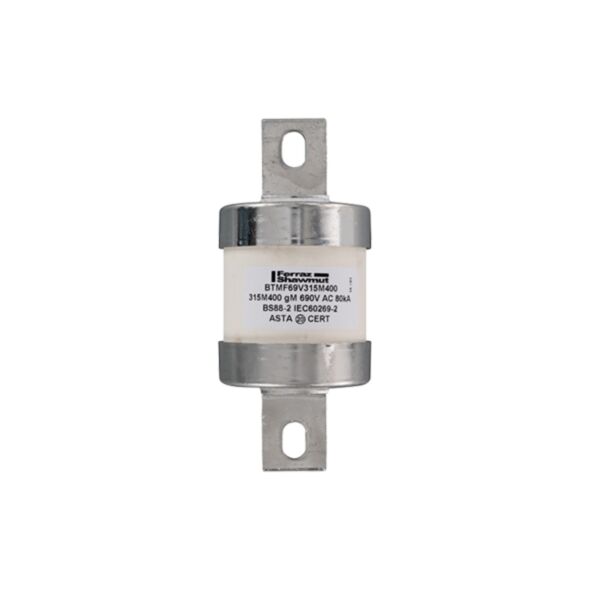

MERSEN FUSE 315M400A69B4 BTMF69V315M400
MPN: N1006630
Alt. SKU: BTMF69V315M400
Special Price
£68.18
£56.82
Regular Price
£194.81
Why Choose the BS88 gM Type B4 690VAC 460VDC 315M400A BTMF Central Bolted Tag BTMF69V315M400?
Engineered to meet IEC BS88 standards, the BTMF69V315M400 fuse-link delivers reliable circuit protection for industrial and commercial low voltage systems, supporting both AC (up to 690V) and DC (up to 460V) applications. Its gM characteristic ensures effective protection of motor circuits during both start-up and fault conditions.
The central bolted tag design guarantees secure installation and optimal conductivity, while robust construction offers long-term performance and safety. Choose this fuse-link for enhanced system reliability and consistent compliance with British electrical safety requirements.
Technical Specifications
- Item number: N1006630
- Catalogue No: BTMF69V315M400
- Description: British Standard fuse-link IEC BS88 gM Type B4 690VAC 460VDC 315M400A BTMF Central Bolted Tag
- EAN/UPC Code: 3605340485158
- Rated voltage AC IEC: 690 V
- Rated voltage DC IEC: 460 V
- In M Ich: 315M400 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gM
- Fuse Size: B4
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 2525000 A²s
- Melting I2t: 505000 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Central Bolted Tag
- Product Diameter: 59.1 mm
- Product Length: 138 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 0.617 kg
- Sell Pack Width: 70 mm
- Sell Pack Length: 137 mm
- Sell Pack Height: 62 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.617 kg
- Power Dissipation at Rated Current Value: 30 W
Product Code: BTMF69V315M400
Key Benefits
- Complies with IEC BS88 standards ensuring high safety and reliability.
- Suitable for both AC (690V) and DC (460V) applications.
- gM characteristic provides effective motor circuit protection during start-up and fault conditions.
- Robust ceramic body for enhanced durability and electrical insulation.
- Central bolted tag design for secure and stable installation.
- High breaking capacity: 80 kA AC and 40 kA DC.
- RoHS compliant, supporting environmental safety.
Compatibility
This fuse-link is compatible with low voltage industrial and commercial electrical systems requiring BS88 gM Type B4 fuses. It fits fuse holders and switchgear designed for central bolted tag mounting and supports applications involving motor protection and general circuit safeguarding under both AC and DC voltages up to the specified ratings.
Applications
- Protection of motor circuits in industrial machinery.
- Low voltage distribution boards and switchgear.
- Commercial electrical installations requiring BS88 compliant fuses.
- AC and DC circuit protection in manufacturing plants.
- Systems requiring reliable fuse-links with high breaking capacity.
Frequently Asked Questions
What does the gM characteristic mean?
The gM characteristic indicates that the fuse is designed for motor protection, capable of withstanding the high inrush currents during motor start-up while providing fast interruption during faults.
Can this fuse-link be used in DC circuits?
Yes, the BTMF69V315M400 is rated for DC voltages up to 460V, making it suitable for both AC and DC applications.
What is the significance of the central bolted tag?
The central bolted tag provides a secure and stable connection point, ensuring optimal conductivity and ease of installation in compatible fuse holders.
Is this fuse RoHS compliant?
Yes, this fuse-link complies with RoHS directives, ensuring it meets environmental and safety standards.
Common Search Terms
BS88 fuse, gM fuse-link, 690V fuse, 460V DC fuse, motor protection fuse, central bolted tag fuse, IEC BS88 fuse, industrial fuse-link, low voltage fuse, ceramic fuse-link
| Manufacturer Part Number | N1006630 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 3605340485158 |
| Height | 138mm |
| Width | 59.1mm |
| Depth | 59.1mm |
| HS Code | 85361090 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BTMF69V315M400 |
