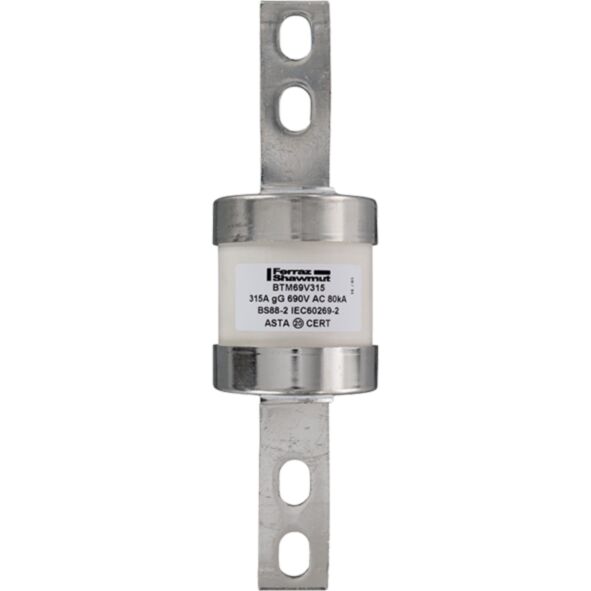

MERSEN FUSE 315A69C1 BTM69V315
MPN: R1006633
Alt. SKU: BTM69V315
Special Price
£66.95
£55.79
Regular Price
£191.28
Why Choose the BS88 gM Type C1 690VAC 460VDC 315A BTM Central Bolted Tag BTM69V315?
Engineered for reliability and high performance, the BS88 gM Type C1 fuse-link provides effective circuit protection up to 690VAC and 460VDC at 315A, fully conforming to IEC and BS88 standards. The central bolted tag design enables robust, secure connections ideal for demanding industrial and commercial installations.
Its gM characteristic supports both motor and general protection, streamlining inventory and specification. The BTM69V315 excels in short-circuit and overload scenarios, ensuring safety and minimising downtime for critical equipment.
Technical Specifications
- Item number: R1006633
- Catalogue No: BTM69V315
- Description: British Standard fuse-link IEC BS88 gM Type C1 690VAC 460VDC 315A BTM Central Bolted Tag
- EAN/UPC Code: 3605340485172
- Rated voltage AC IEC: 690 V
- Rated voltage DC IEC: 460 V
- Ampere Rating: 315 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gM
- Fuse Size: C1
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 1350000 A²s
- Melting I2t: 270000 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Central Bolted Tag
- Product Diameter: 59.1 mm
- Product Length: 212 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 0.69 kg
- Sell Pack Width: 67 mm
- Sell Pack Length: 210 mm
- Sell Pack Height: 60 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.69 kg
- Power Dissipation at Rated Current Value: 31 W
Product Code: BTM69V315
Key Benefits
- High breaking capacity: 80 kA AC and 40 kA DC for superior protection.
- Dual voltage rating supports both AC (690 V) and DC (460 V) applications.
- Robust ceramic body ensures durability and reliable insulation.
- Central bolted tag terminals provide secure and easy installation.
- gM characteristic suitable for motor and general circuit protection.
- RoHS compliant, ensuring environmental safety and regulatory adherence.
- Compact design with a length of 212 mm and diameter of 59.1 mm for versatile mounting.
Compatibility
The BTM69V315 fuse-link is compatible with IEC BS88 Type C1 fuse bases and holders designed for bolted tag mounting. It is suitable for integration into industrial motor control panels, power distribution units, and general electrical protection systems requiring gM characteristic fuses.
Applications
- Protection of industrial motors and motor circuits.
- General-purpose circuit protection in industrial and commercial installations.
- Power distribution and control panels operating at up to 690VAC or 460VDC.
- Overload and short-circuit protection in manufacturing facilities.
- Electrical equipment requiring high breaking capacity fuses with reliable performance.
Frequently Asked Questions
What does the gM characteristic mean?
The gM characteristic indicates that the fuse-link is designed for motor protection with the ability to safely interrupt both overloads and short circuits, making it suitable for motor circuits and general applications.
Can this fuse be used in DC circuits?
Yes, the BTM69V315 is rated for use in DC circuits up to 460 V, providing reliable protection in both AC and DC applications.
What type of mounting does this fuse require?
This fuse-link uses a central bolted tag connection for secure and robust mounting in compatible fuse bases or holders.
Is this fuse RoHS compliant?
Yes, the BTM69V315 is RoHS compliant, ensuring it meets environmental and safety standards.
Common Search Terms
BS88 fuse-link, gM fuse 315A, IEC fuse 690VAC, DC rated fuse 460V, central bolted tag fuse, motor protection fuse, industrial fuse-link, Type C1 fuse, high breaking capacity fuse, ceramic body fuse
| Manufacturer Part Number | R1006633 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 3605340485172 |
| Height | 212mm |
| Width | 59.1mm |
| Depth | 59.1mm |
| HS Code | 85361090 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BTM69V315 |
