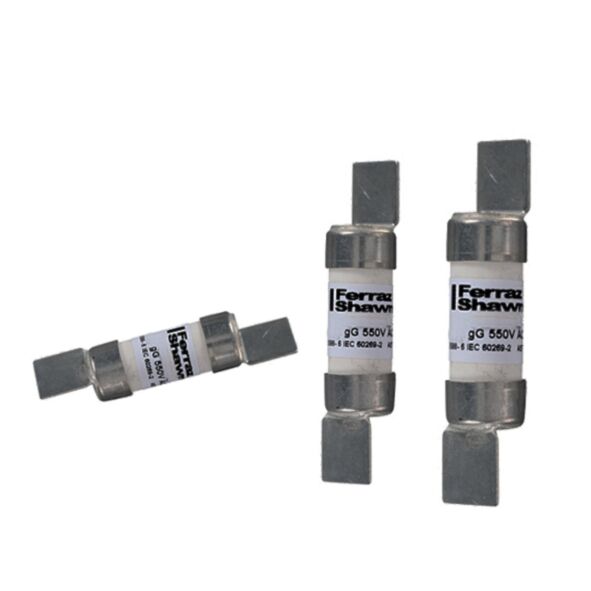

MERSEN FUSE 2A55F1 BNS55V2
MPN: C1006643
Alt. SKU: BNS55V2
Special Price
£1.70
£1.42
Regular Price
£4.87
MERSEN FUSE 2A55F1 BNS55V2 is available to buy in increments of 10
Why Choose the BS88 gM Type F1 20M25A BNS Offset Blade Fuse-Link?
This BS88 gM Type F1 fuse-link provides reliable protection for both general industrial and motor circuit applications, combining high breaking capacity with precise fault response. Rated for 20-25A at 550VAC and 250VDC, it supports flexible deployment across AC and DC systems.
Engineered with an offset blade design for secure, straightforward installation, the BNS55V20M25 ensures robust, consistent performance and low maintenance in demanding environments. Conformity to IEC and British Standards guarantees trusted circuit protection and operational safety.
Technical Specifications
- Item number: W1019218
- Catalogue No: BNS55V20M25
- Description: British Standard fuse-link IEC BS88 gM Type F1 550VAC 250VDC 20M25A BNS Offset Blade
- EAN/UPC Code: 3605340517170
- Rated voltage AC IEC: 550 V
- Rated voltage DC IEC: 250 V
- In M Ich: 20M25 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gM
- Fuse Size: F1
- Mounting: Clip
- Clearing I2t At Rated Voltage: 2100 A²s
- Melting I2t: 420 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Blade
- Product Diameter: 13.5 mm
- Product Length: 61 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.173 kg
- Sell Pack Width: 37 mm
- Sell Pack Length: 73 mm
- Sell Pack Height: 70 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.0173 kg
- Power Dissipation at Rated Current Value: 1.6 W
Product Code: BNS55V20M25
Key Benefits
- High breaking capacity ensures superior protection in both AC and DC circuits.
- Offset blade design facilitates secure and easy installation.
- Compliance with IEC and British Standards guarantees safety and reliability.
- Ceramic body provides excellent insulation and thermal stability.
- RoHS compliant, supporting environmental and safety regulations.
- Compact size suitable for low voltage industrial applications.
Compatibility
This fuse-link is compatible with BS88 fuse holders designed for gM Type F1 fuses with offset blades. It is suitable for integration into motor control circuits, general industrial electrical panels, and systems requiring both AC and DC protection up to 550VAC and 250VDC.
Applications
- Motor circuit protection in industrial machinery.
- General purpose industrial electrical protection.
- Control panels requiring high breaking capacity fuses.
- AC and DC power distribution systems.
- Renewable energy systems where DC protection is necessary.
Frequently Asked Questions
What does the 'gM' characteristic mean?
The 'gM' characteristic indicates a general-purpose fuse suitable for motor circuit protection, capable of interrupting both overload and short-circuit currents with high breaking capacity.
Can this fuse be used in DC circuits?
Yes, this fuse is rated for use in DC circuits up to 250V, making it suitable for various DC applications.
What is the significance of the offset blade design?
The offset blade design ensures a secure and reliable connection in compatible fuse holders, reducing the risk of poor contact and enhancing safety.
Is this fuse RoHS compliant?
Yes, the BNS55V20M25 fuse-link is RoHS compliant, meeting environmental standards for hazardous substances.
Common Search Terms
BS88 fuse, gM Type F1 fuse, 20A fuse-link, 25A fuse, offset blade fuse, IEC fuse-link, motor protection fuse, industrial fuse, 550VAC fuse, 250VDC fuse, ceramic fuse-link, high breaking capacity fuse
| Manufacturer Part Number | C1006643 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340485240 |
| Height | 61mm |
| Width | 13.5mm |
| Depth | 13.5mm |
| HS Code | 85361010 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BNS55V2 |
