MERSEN FUSE 200M250B2 BTF42V200M250
MPN: X226317
Alt. SKU: BTF42V200M250
Special Price
£18.20
£15.17
Regular Price
£52.01

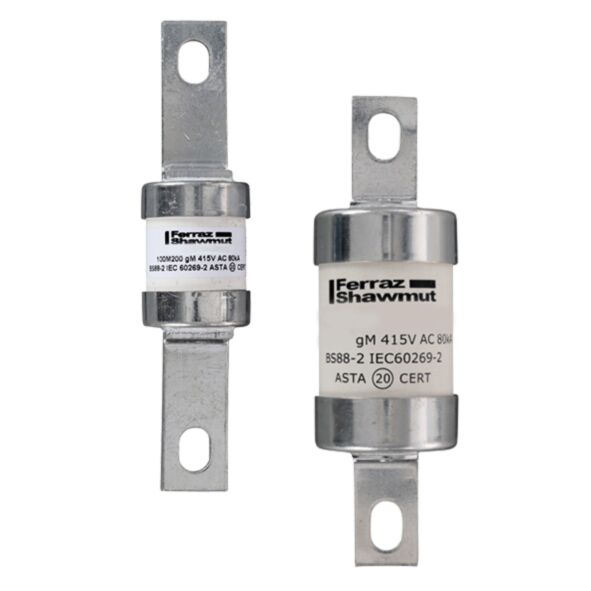

Why Choose the BS88 gM Type B2 Central Bolted Tag Fuse-Link BTF42V200M250?
The BTF42V200M250 offers robust circuit protection for industrial and commercial applications, compliant with IEC BS88 standards. Rated for up to 415VAC and 240VDC with a 200–250A current range, it ensures reliable performance in demanding environments.
Its gM characteristic allows for both cable and motor protection, while the central bolted tag design guarantees secure installation and optimal conductivity. Choose this fuse-link for superior protection, durability, and straightforward integration into your existing systems.
Product Code: BTF42V200M250
Key Benefits
- Complies with IEC BS88 standards for assured quality and safety.
- Dual voltage rating supports both AC (415V) and DC (240V) applications.
- gM characteristic provides comprehensive protection for cables and motors.
- Central bolted tag terminal ensures secure and reliable connections.
- Ceramic body offers excellent insulation and durability under high stress.
- High breaking capacity (80 kA AC, 40 kA DC) for effective fault clearing.
Compatibility
This fuse-link is compatible with BS88 Type B2 fuse holders and switchgear designed for IEC low voltage fuses. It integrates seamlessly into industrial and commercial electrical systems requiring gM characteristic protection.
Applications
- Industrial motor protection circuits.
- Commercial electrical distribution systems.
- Cable protection in low voltage installations.
- Switchgear and control panels requiring high breaking capacity fuses.
Technical Specifications
- Item number: X226317
- Catalogue No: BTF42V200M250
- Description: British Standard fuse-link IEC BS88 gM Type B2 415VAC 240VDC 200M250A BTF Central Bolted Tag
- EAN/UPC Code: 3605340267945
- Rated voltage AC IEC: 415 V
- Rated voltage DC IEC: 240 V
- In M Ich: 200M250 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gM
- Fuse Size: B2
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 532000 A²s
- Melting I2t: 190000 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Central Bolted Tag
- Product Diameter: 41.9 mm
- Product Length: 138 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 0.29 kg
- Sell Pack Width: 50 mm
- Sell Pack Length: 135 mm
- Sell Pack Height: 41 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.29 kg
- Power Dissipation at Rated Current Value: 19.2 W
Frequently Asked Questions
What does the gM characteristic mean?
The gM characteristic indicates that the fuse is designed for full-range protection of both cables and motors, providing reliable disconnection under short-circuit and overload conditions.
Is this fuse suitable for DC applications?
Yes, the BTF42V200M250 is rated for 240 VDC, making it suitable for certain DC circuits within its rated current and breaking capacity limits.
Can this fuse be used in existing BS88 Type B2 fuse holders?
Yes, this fuse-link is designed to fit standard BS88 Type B2 holders with central bolted tag connections.
What is the breaking capacity of this fuse?
The fuse has a maximum rated breaking capacity of 80 kA for AC and 40 kA for DC applications.
Common Search Terms
BS88 fuse-link, gM fuse, Type B2 fuse, central bolted tag fuse, IEC BS88 fuse, motor protection fuse, industrial fuse-link, 200A fuse, 250A fuse, low voltage fuse, ceramic fuse-link
| Manufacturer Part Number | X226317 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 3605340267945 |
| Height | 138mm |
| Width | 41.9mm |
| Depth | 41.9mm |
| HS Code | 85361090 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BTF42V200M250 |
