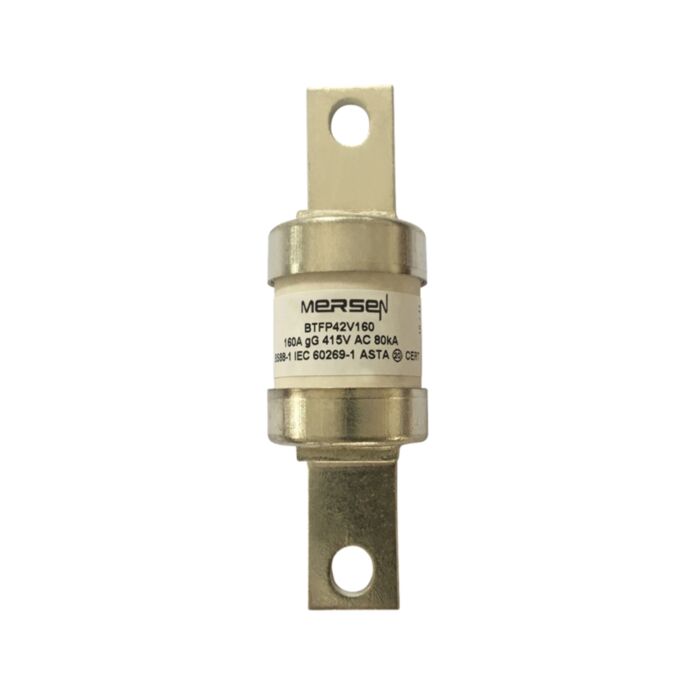

MERSEN FUSE 160A4XC BTFP42V160
MPN: E226301
Alt. SKU: BTFP42V160
Special Price
£15.12
£12.60
Regular Price
£43.20
MERSEN FUSE 160A4XC BTFP42V160 is available to buy in increments of 5
Why Choose the BS88 gG Type A4 415VAC 240VDC 160A BTFP Offset Tag BTFP42V160?
The BS88 gG Type A4 fuse-link provides reliable circuit protection for industrial and commercial low-voltage power distribution up to 415VAC and 240VDC. Designed in accordance with IEC and BS88 standards, it ensures consistent performance and high rupture capacity for demanding applications.
The offset tag (BTFP) configuration enables straightforward installation and secure connections, while the robust 160A rating offers dependable protection for circuits and equipment. Ideal for electrical panels requiring compliance, safety, and long service life.
Product Code: BTFP42V160
Key Benefits
- High breaking capacity of 80 kA AC and 40 kA DC for enhanced safety.
- Compliance with IEC and BS88 standards ensures reliable performance.
- Offset tag terminals allow easy and secure bolted mounting.
- Ceramic body provides excellent insulation and durability.
- Suitable for both AC and DC applications up to 415VAC and 240VDC.
- RoHS compliant, supporting environmental and safety regulations.
Compatibility
This fuse-link is compatible with standard BS88 fuse holders and switchgear designed for A4 size fuses. It is suitable for integration into industrial and commercial low-voltage distribution systems requiring gG type protection.
Applications
- Industrial power distribution panels.
- Commercial electrical installations.
- Protection of motors, transformers, and cables.
- Control panels and switchgear assemblies.
- Renewable energy systems with DC circuits.
Technical Specifications
- Item number: E226301
- Catalogue No: BTFP42V160
- Description: British Standard fuse-link IEC BS88 gG Type A4 415VAC 240VDC 160A BTFP Offset Tag
- EAN/UPC Code: 3605340267761
- Rated voltage AC IEC: 415 V
- Rated voltage DC IEC: 240 V
- Ampere Rating: 160 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gG
- Fuse Size: A4
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 150000 A²s
- Melting I2t: 57000 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Tag
- Product Diameter: 31 mm
- Product Width: 32 mm
- Product Length: 110 mm
- Sell Pack Quantity: 5 EA
- Sell Pack Weight: 0.725 kg
- Sell Pack Width: 112 mm
- Sell Pack Length: 178 mm
- Sell Pack Height: 40 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.145 kg
- Power Dissipation at Rated Current Value: 10.7 W
Frequently Asked Questions
What does the gG characteristic mean?
The gG characteristic indicates that the fuse is a general-purpose fuse-link suitable for protection of cables and equipment against overload and short-circuit currents.
Can this fuse be used for both AC and DC circuits?
Yes, this fuse-link is rated for use in both AC (up to 415V) and DC (up to 240V) applications, providing versatile protection.
What is the significance of the offset tag terminal?
The offset tag terminal design allows for secure bolted connections and easier installation in fuse holders designed for this configuration.
Is this fuse RoHS compliant?
Yes, the BS88 gG Type A4 fuse-link BTFP42V160 is RoHS compliant, ensuring it meets environmental safety standards.
Common Search Terms
BS88 fuse, gG type fuse, A4 fuse-link, 160A fuse, 415VAC fuse, 240VDC fuse, offset tag fuse, industrial fuse, IEC fuse, low voltage fuse, bolted fuse terminal
| Manufacturer Part Number | E226301 |
|---|---|
| Packed Quantity | 5 |
| Barcode | 3605340267761 |
| Height | 110mm |
| Width | 32mm |
| Depth | 31mm |
| HS Code | 85361090 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BTFP42V160 |
