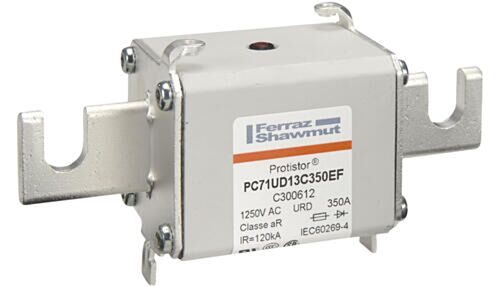

MERSEN FUSE 12,5 URD 71 EF 0350 C300612
MPN: C300612
Alt. SKU: PC71UD13C350EF
Special Price
£102.08
£85.07
Regular Price
£185.60
MERSEN FUSE 12,5 URD 71 EF 0350 C300612 is available to buy in increments of 3
Why Choose the Square Body High-Speed Fuse Protistor® Size 71 aR 1250VAC IEC 1300VAC UL 350A With Striker Open Slot Blades PC71UD13C350EF?
Engineered for demanding industrial power protection, this Protistor® fuse ensures reliable circuit safeguarding with fast-acting aR performance for semiconductor and other sensitive equipment. Its robust square body design supports high fault current interruption up to 350A at 1250VAC IEC and 1300VAC UL, meeting stringent international standards.
Equipped with an integrated striker and open slot blades, installation and visual status indication are simplified, reducing downtime and maintenance effort. Choose this fuse for enhanced electrical protection, operational safety, and dependable performance in critical applications.
Product Code: C300612
Key Benefits
- Fast-acting aR characteristic for semiconductor protection
- High voltage rating: 1250VAC IEC and 1300VAC UL
- Robust ceramic square body for durability and safety
- Integrated striker indication system for easy status monitoring
- Silver-plated copper open slot blades ensure reliable connections
- High breaking capacity of 126 kA for fault current interruption
- Bolted mounting for secure installation
Compatibility
This fuse is compatible with industrial electrical systems requiring high-speed semiconductor protection at voltages up to 1300VAC UL and 1250VAC IEC. It is suitable for use in bolted fuse holders designed for Size 71 fuses with open slot blade terminals.
Applications
- Protection of semiconductor devices such as thyristors and diodes
- Industrial motor drives and power converters
- High-power electrical equipment and control panels
- Renewable energy systems including solar inverters
- Critical manufacturing and processing plants requiring fast fault clearance
Technical Specifications
- Item number: C300612
- Catalogue No: PC71UD13C350EF
- Description: Square Body High-Speed Fuse Protistor® Size 71 aR 1250VAC IEC 1300VAC UL 350A With Striker Open Slot Blades
- EAN/UPC Code: 3605340330977
- Rated voltage AC UL: 1300 V
- Rated voltage AC IEC: 1250 V
- Ampere Rating: 350 A
- AC or DC: AC
- Speed/Characteristic: aR
- Fuse Size: 71
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 178 kA²s
- Melting I2t: 22 kA²s
- AC Max I.R./Breaking Capacity: I1: 126 kA
- Indication System: Yes
- Indication System Type: Striker
- Connection/Terminal Material: Silver-Plated Copper
- Connection/Terminal Type: Open Slot Blades
- Product Width: 51 mm
- Product Length: 149.4 mm
- Product Height: 56.5 mm
- Sell Pack Quantity: 3 EA
- Sell Pack Weight: 1.62 kg
- Sell Pack Width: 140 mm
- Sell Pack Length: 174 mm
- Sell Pack Height: 71 mm
- Product group: Semiconductor Protection Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.54 kg
- Power Dissipation at Rated Current Value: 80 W
Frequently Asked Questions
What does the aR characteristic mean for this fuse?
The aR (partial range) characteristic indicates that the fuse is designed to protect semiconductor devices by clearing short-circuit faults quickly while allowing for normal inrush currents, providing selective and reliable protection.
Is this fuse suitable for DC applications?
No, this particular fuse is rated for AC applications only, as specified in the technical specifications.
How does the striker indication system work?
The striker is a mechanical indicator that visibly pops out when the fuse has operated (blown), providing a clear visual status indication to facilitate quick maintenance.
Can this fuse be used in any fuse holder?
This fuse requires a bolted mounting fuse holder compatible with Size 71 fuses and open slot blade terminals to ensure proper installation and performance.
Common Search Terms
high-speed fuse, semiconductor protection fuse, Protistor fuse, aR fuse 350A, Size 71 fuse, 1250VAC fuse, 1300VAC fuse, striker fuse, open slot blade fuse, industrial power fuse, bolted mounting fuse
| Manufacturer Part Number | C300612 |
|---|---|
| Packed Quantity | 3 |
| Barcode | 3605340330977 |
| Height | 149.4mm |
| Width | 51mm |
| Depth | 56.5mm |
| HS Code | 85351000 |
| Manufacturer | Mersen |
| Alternative Product SKU | PC71UD13C350EF |
