MERSEN FUSE 12,5 URD 70 TT F 0050 12,5URD70TTF0050
MPN: C301095
Alt. SKU: PC70UD13C50TF
Special Price
£57.66
£48.05
Regular Price
£104.84
MERSEN FUSE 12,5 URD 70 TT F 0050 12,5URD70TTF0050 is available to buy in increments of 3

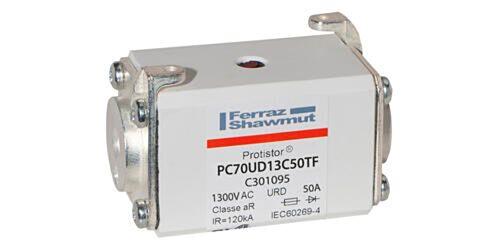

Why Choose the Square Body High-Speed Fuse Protistor® Size 70 aR 1250VAC IEC 1300VAC UL 50A With Striker Flush Ends Metric Threads PC70UD13C50TF?
Engineered for demanding industrial and power electronics applications, the Protistor® PC70UD13C50TF square body high-speed fuse delivers reliable protection for semiconductor devices. With ratings of 1250VAC (IEC) and 1300VAC (UL), and a 50A current capacity, it ensures rapid fault interruption and safeguards critical equipment against overloads and short circuits.
Precision-crafted with flush striker indicator and metric threads, this Size 70 fuse simplifies panel integration and enhances operational safety. Certified to both IEC and UL standards, it guarantees compliance, performance, and peace of mind for engineers specifying robust circuit protection in mission-critical systems.
Technical Specifications
- Item number: C301095
- Catalogue No: PC70UD13C50TF
- Description: Square Body High-Speed Fuse Protistor® Size 70 aR 1250VAC IEC 1300VAC UL 50A With Striker Flush ends metric threads
- EAN/UPC Code: 3605340336764
- Rated voltage AC UL: 1300 V
- Rated voltage AC IEC: 1250 V
- Ampere Rating: 50 A
- AC or DC: AC
- Speed/Characteristic: aR
- Fuse Size: 70
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 980 A²s
- Melting I2t: 120 A²s
- AC Max I.R./Breaking Capacity: I1: 126 kA
- Indication System: Yes
- Indication System Type: Striker
- Connection/Terminal Material: Silver-Plated Brass
- Connection/Terminal Type: Flush ends
- Product Width: 39.8 mm
- Product Length: 74 mm
- Product Height: 49.5 mm
- Sell Pack Quantity: 3 EA
- Sell Pack Weight: 1.017 kg
- Sell Pack Width: 85 mm
- Sell Pack Length: 133 mm
- Sell Pack Height: 55 mm
- Product group: Semiconductor Protection Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.339 kg
- Power Dissipation at Rated Current Value: 16 W
Product Code: C301095
Key Benefits
- High-speed aR characteristic ensures rapid fault clearing to protect sensitive semiconductor devices.
- Dual certification to IEC and UL standards guarantees global compliance and reliability.
- Flush striker indicator provides clear and immediate visual fault indication.
- Metric threaded flush ends simplify installation and secure mounting in industrial panels.
- Ceramic body construction offers excellent thermal and mechanical durability.
- High breaking capacity (126 kA) ensures safe interruption of high fault currents.
Compatibility
This fuse is compatible with Size 70 fuse holders and panels designed for bolted mounting with metric threads. It is suitable for use in industrial power electronics, semiconductor protection circuits, and systems requiring high-speed fault interruption at voltages up to 1300VAC.
Applications
- Protection of power semiconductor devices such as thyristors, diodes, and IGBTs.
- Industrial motor drives and variable frequency drives (VFDs).
- Power supply units and inverters in renewable energy systems.
- High-voltage industrial control panels and switchgear.
- Overcurrent protection in critical manufacturing and process control equipment.
Frequently Asked Questions
What does the aR speed characteristic mean?
The aR (partial range) characteristic means the fuse is designed to protect semiconductor devices by quickly interrupting short-circuit faults while allowing for inrush currents typical in power electronics.
Can this fuse be used in DC circuits?
No, this particular fuse is rated for AC applications only, as indicated by its AC voltage ratings and specifications.
How does the striker indicator work?
The striker indicator provides a visual signal by ejecting a striker when the fuse element melts, allowing for quick identification of a blown fuse without disassembly.
What is the significance of metric threaded flush ends?
Metric threaded flush ends ensure secure mechanical and electrical connection in panels designed for metric fasteners, improving installation reliability and safety.
Common Search Terms
high-speed fuse, Protistor fuse, Size 70 fuse, semiconductor protection fuse, 50A fuse, 1250VAC fuse, 1300VAC fuse, aR fuse, flush ends fuse, striker indicator fuse, ceramic body fuse, industrial fuse, bolted mounting fuse
| Manufacturer Part Number | C301095 |
|---|---|
| Packed Quantity | 3 |
| Barcode | 3605340336764 |
| Height | 74mm |
| Width | 39.8mm |
| Depth | 49.5mm |
| HS Code | 85351000 |
| Manufacturer | Mersen |
| Alternative Product SKU | PC70UD13C50TF |
