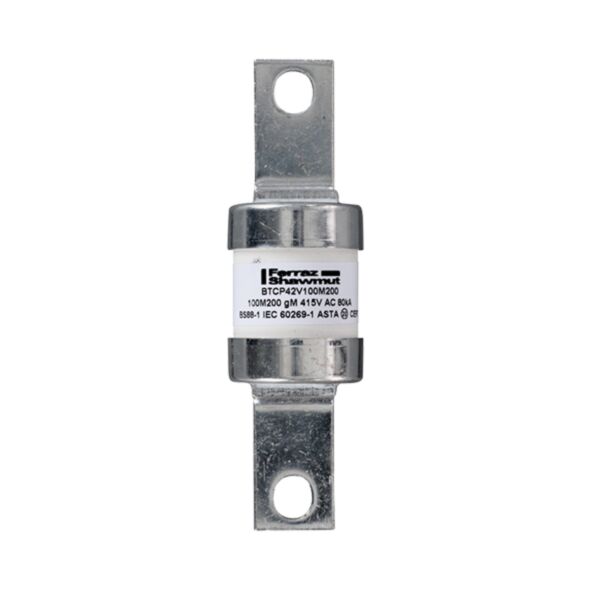

MERSEN FUSE 100M200A4C BTCP42V100M200
MPN: C226299
Alt. SKU: BTCP42V100M200
Special Price
£13.88
£11.57
Regular Price
£39.68
MERSEN FUSE 100M200A4C BTCP42V100M200 is available to buy in increments of 5
Why Choose the BS88 gM Type A4 415VAC 240VDC 100M200A BTCP Offset Tag BTCP42V100M200 Fuse-Link?
The BTCP42V100M200 fuse-link is manufactured to IEC BS88 standards, ensuring reliable circuit protection for both AC (up to 415V) and DC (up to 240V) installations. Its gM characteristic supports both motor and general applications, providing rapid response to overloads and short circuits.
Featuring an offset tag design for straightforward installation and replacement, this robust 100M200A fuse-link delivers dependable performance in demanding industrial environments. Ideal for engineers seeking maximum safety, longevity, and compliance with British standards.
Product Code: BTCP42V100M200
Key Benefits
- Complies with IEC BS88 standards for assured quality and safety.
- Suitable for both AC (415V) and DC (240V) applications.
- gM characteristic provides protection for motor circuits and general applications.
- Offset tag terminals allow for easy and secure bolted mounting.
- Ceramic body ensures high durability and heat resistance.
- High breaking capacity: 80 kA AC and 40 kA DC for reliable fault clearing.
- RoHS compliant, supporting environmental sustainability.
Compatibility
This fuse-link is compatible with fuse holders and switchgear designed for IEC BS88 gM Type A4 fuses, particularly those requiring a 100M200A rating. It is ideal for use in industrial motor circuits and general low voltage electrical installations requiring bolted offset tag connections.
Applications
- Industrial motor protection circuits.
- General purpose low voltage electrical installations.
- Control panels and switchgear requiring high breaking capacity fuses.
- Protection of electrical equipment in manufacturing plants.
- Power distribution systems with AC/DC loads.
Technical Specifications
- Item number: C226299
- Catalogue No: BTCP42V100M200
- Description: British Standard fuse-link IEC BS88 gM Type A4 415VAC 240VDC 100M200A BTCP Offset Tag
- EAN/UPC Code: 3605340267747
- Rated voltage AC IEC: 415 V
- Rated voltage DC IEC: 240 V
- In M Ich: 100M200 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gM
- Fuse Size: A4
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 293000 A²s
- Melting I2t: 105000 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Tag
- Product Diameter: 31 mm
- Product Width: 32 mm
- Product Length: 110 mm
- Sell Pack Quantity: 5 EA
- Sell Pack Weight: 0.8 kg
- Sell Pack Width: 110 mm
- Sell Pack Length: 178 mm
- Sell Pack Height: 40 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.16 kg
- Power Dissipation at Rated Current Value: 8.1 W
Frequently Asked Questions
What does the gM characteristic mean?
The gM characteristic indicates that the fuse is suitable for motor protection and general applications, providing full-range protection against overloads and short circuits.
Can this fuse-link be used in DC circuits?
Yes, the BTCP42V100M200 is rated for DC applications up to 240V, making it suitable for both AC and DC installations.
What type of mounting does this fuse support?
This fuse-link features offset tag terminals designed for bolted mounting, ensuring secure and reliable connections.
Is this fuse RoHS compliant?
Yes, the BTCP42V100M200 complies with RoHS standards, ensuring it meets environmental and safety regulations.
Common Search Terms
BS88 fuse-link, gM type fuse, 100M200A fuse, 415V AC fuse, 240V DC fuse, offset tag fuse, IEC BS88 fuse, motor protection fuse, industrial fuse-link, bolted mounting fuse
| Manufacturer Part Number | C226299 |
|---|---|
| Packed Quantity | 5 |
| Barcode | 3605340267747 |
| Height | 110mm |
| Width | 32mm |
| Depth | 31mm |
| HS Code | 85361090 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BTCP42V100M200 |
