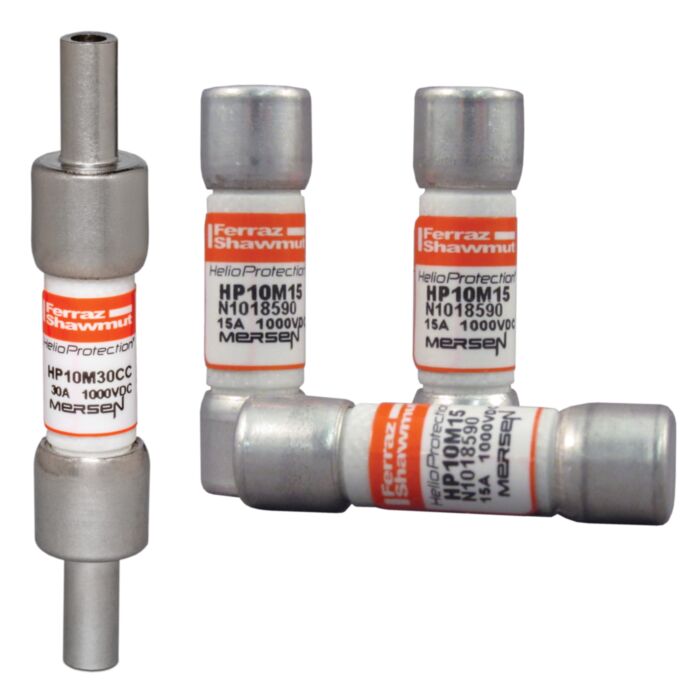

MERSEN FUSE 1000VDC 15A MIDGET PV FUSE HP10M15
MPN: HP10M15
Special Price
£5.81
£4.84
Regular Price
£9.67
MERSEN FUSE 1000VDC 15A MIDGET PV FUSE HP10M15 is available to buy in increments of 10
Why Choose the Photovoltaic Fuse gPV 1000VDC UL 15A With Ferrule For Clip?
Engineered for reliable circuit protection in photovoltaic systems, this gPV 1000VDC UL 15A fuse offers high interrupt capacity and precise overcurrent response, safeguarding solar installations against faults and overloads. Its ferrule ends are designed for secure, low-resistance connections in clip-mounted assemblies, facilitating quick installation and maintenance.
Certified to IEC and UL standards, the fuse ensures international compliance and consistent performance in demanding DC environments. With robust construction and superior thermal cycling resistance, it is an ideal choice for protecting string and array sections in commercial and utility-scale solar PV applications.
Product Code: HP10M15
Key Benefits
- High interrupt capacity of 50 kA ensures robust protection against short circuits.
- Ferrule connection provides secure and low-resistance terminal contacts.
- Clip mounting allows for easy installation and replacement in photovoltaic systems.
- Complies with IEC and UL standards for international safety and performance assurance.
- Compact dimensions (10.4 mm diameter, 38.1 mm length) save space in fuse holders.
- Durable GMG insulating body material offers excellent thermal and mechanical stability.
Compatibility
This photovoltaic fuse is compatible with standard clip-mounted fuse holders designed for 10.4 mm diameter fuses and is suitable for use in DC photovoltaic string and array protection systems operating up to 1000 V DC. It integrates seamlessly with solar inverters, combiner boxes, and junction boxes requiring UL certified photovoltaic fuses.
Applications
- Protection of solar photovoltaic strings and arrays in commercial and utility-scale installations.
- Overcurrent protection in solar combiner boxes and DC distribution panels.
- Safeguarding photovoltaic modules and inverters from fault currents and overloads.
- Use in renewable energy systems requiring UL and IEC certified photovoltaic fuses.
Technical Specifications
- Item number: HP10M15
- Description: Photovoltaic fuse gPV 1000VDC UL 15A With Ferrule For Clip
- EAN/UPC Code: 782001429959
- Rated voltage DC UL: 1000 V
- Frequency (Hz): 50/60 Hz
- Ampere Rating: 15 A
- AC or DC: DC
- Fuse Class: Photovoltaic
- Speed/Characteristic: gPV
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 50 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Ferrule
- Product Diameter: 10.4 mm
- Product Length: 38.1 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.0953 kg
- Sell Pack Width: 22.4 mm
- Sell Pack Length: 41.4 mm
- Sell Pack Height: 54.1 mm
- Product group: Special Purpose Fuses
- Body/Insulating Material: GMG
- Product Weight: 0.0091 kg
Frequently Asked Questions
What is the maximum voltage rating of this fuse?
The fuse is rated for a maximum DC voltage of 1000 V, suitable for most photovoltaic system requirements.
Can this fuse be used in AC circuits?
No, this fuse is specifically designed for DC photovoltaic applications and should not be used in AC circuits.
What type of mounting does this fuse require?
This fuse is designed for clip mounting, allowing for easy installation and replacement in compatible fuse holders.
Is this fuse compliant with international standards?
Yes, it is certified to IEC and UL standards, ensuring safety and reliability in photovoltaic systems worldwide.
Common Search Terms
photovoltaic fuse, gPV fuse 1000V, UL 15A fuse, solar panel fuse, clip mount fuse, DC fuse 1000V, ferrule terminal fuse, solar array protection, photovoltaic system fuse, special purpose fuse
| Manufacturer Part Number | HP10M15 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 0782001429959 |
| Height | 38.1mm |
| Width | 10.4mm |
| Depth | 10.4mm |
| HS Code | 85361050 |
| Country of Manufacture | Mexico |
| Manufacturer | Mersen |
