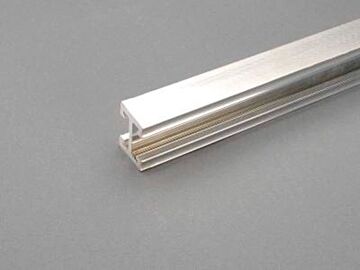

01224 Wohner double-T section busbar 500 mm²
MPN: 01224
Alt. SKU: 01224000
£425.41
£354.51
Why Choose the Double-T Section Busbar 500 mm² (01224)?
The double-T section busbar 500 mm² is crafted from high-purity copper Cu-ETP (No. CW004A) in accordance with EN 13601, ensuring excellent conductivity and mechanical strength. Its tin-plated surface significantly reduces the effort required to prepare contact points and offers effective protection against aggressive environmental media. Designed as part of the 60Classic centre feed unit system, this busbar is a reliable and durable choice for industrial electrical installations.
Key Benefits
- Manufactured from 99.9% pure copper with strength class R300 (300 N/mm²) for robust mechanical performance.
- Tin-plated finish reduces contact preparation time and enhances corrosion resistance.
- Halogen-free material ensures safer operation and environmental compliance.
- Complies with multiple international approvals including UL 508, CSA, and DNV GL, ensuring high quality and safety standards.
- Long length of 3.60 m suitable for various installation requirements.
- Mechanical product only; does not carry current directly but serves as a structural and conductive support element.
Technical Specifications
- Item number: 01224
- Description: double-T section busbar 500 mm²
- Dimensions (W x H x D): 3600 x 30 x 40 mm
- Weight: 1596.0 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: H500-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What material is the double-T section busbar made from?
It is made from copper Cu-ETP (No. CW004A) with 99.9% copper content, complying with EN 13601 standards.
Is the busbar suitable for carrying electrical current?
This is a mechanical product designed to provide structural support and conductivity but does not carry current directly.
What are the advantages of the tin-plated finish?
The tin plating reduces the effort required to prepare contact points and protects the busbar against aggressive environmental media.
What approvals does this busbar have?
It holds approvals including UL 508, CSA, DNV GL, and is suitable for UL feeder circuits over 250V.
Where can I find technical documentation and CAD models?
Technical information, CAD models, drawings, and conformity declarations are available for download from the product page.
| Manufacturer Part Number | 01224 |
|---|---|
| Barcode | 4021267012243 |
| Height | 30mm |
| Width | 3600mm |
| Depth | 40mm |
| Country of Manufacture | Belgium |
| HS Code | 74071000 |
| Alternative Product SKU | 01224000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Device type | Profile |
