852-1411/000-001 Wago Industrial-ECO-Switch;5-port 1000Base-T;4 * Power over Ethernet
MPN: 852-1411/000-001
Alt. SKU: 8521411000001
Special Price
£388.80
£324.00
Regular Price
£457.42
Why Choose the WAGO 852-1411/000-001 Industrial ECO Switch?

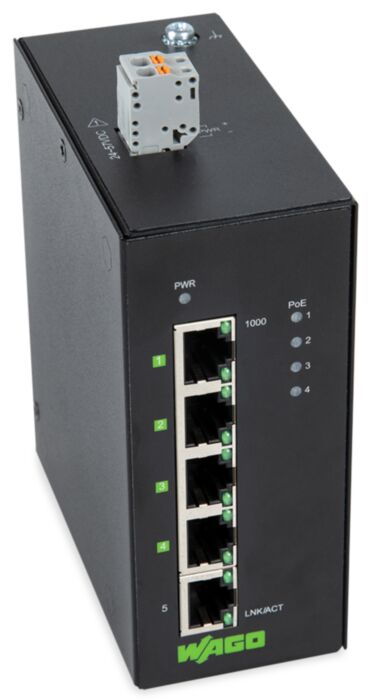

The WAGO 852-1411/000-001 is a robust, unmanaged industrial Ethernet switch featuring five 10/100/1000BASE-T RJ45 ports, four of which support Power over Ethernet Plus (PoE+) at 30 W. Designed for high-performance automation networks, it provides reliable data transmission and power delivery in a compact, DIN-rail mountable form factor. Its extended temperature range ensures dependable operation in harsh industrial environments.
Technical Specifications
- Ports: 5 x 10/100/1000 Mbps RJ45, with 4 x PoE+ (IEEE 802.3at) supporting up to 30 W per port
- Switching Method: Store-and-forward, non-blocking
- MAC Address Table: 8,000 entries
- Auto-Negotiation: Supported on all ports
- Auto MDI/MDI-X: Supported on all ports
- Power Supply: 24 V DC (integrated voltage transformer)
- Power Consumption: Max. 3.2 W (without PoE load)
- Operating Temperature: -40°C to +70°C
- Protection: IP30-rated metal housing
- Mounting: DIN-35 rail
- Dimensions: 30 mm (W) x 110 mm (H) x 70 mm (D)
- Weight: Approx. 200g
- Certifications: CE, RoHS compliant
Applications
Ideal for industrial automation, machine control networks, and process engineering systems requiring Gigabit speed and reliable data transmission. Its PoE+ capability allows for the simultaneous power supply of up to four PoE end devices, eliminating the need for separate power sources and simplifying installation.
Frequently Asked Questions
- Is the WAGO 852-1411/000-001 plug-and-play?
- Does it support redundant power inputs?
- Can all PoE+ ports be used simultaneously?
What Customers Say
"The WAGO 852-1411/000-001 offers reliable performance in our industrial network. Its PoE+ capability and extended temperature range are significant advantages." – Automation Engineer
Key Features of the WAGO 852-1411/000-001
- 5-port unmanaged Ethernet switch with 10/100/1000 Mbps RJ45 ports
- 4 x PoE+ ports (IEEE 802.3at) supporting up to 30 W per port
- Compact design suitable for DIN-rail mounting
- Extended operating temperature range: -40°C to +70°C
- Integrated voltage transformer for 24 V DC operation
- Robust metallic housing with IP30 protection
Comparison with Other Industrial Switches
Compared to other unmanaged switches, the WAGO 852-1411/000-001 offers Gigabit speed, PoE+ capability, and an extended temperature range, making it a preferred choice for industrial applications requiring reliable data transmission and power delivery in harsh environments.
Yes, as an unmanaged switch, it offers plug-and-play functionality without the need for configuration.
The WAGO 852-1411/000-001 supports a single 24 V DC power input.
Yes, all four PoE+ ports can be used simultaneously to power PoE end devices, each supporting up to 30 W.
| Height | 233mm |
|---|---|
| Width | 184mm |
| Depth | 68mm |
| Barcode | 4055143933179 |
| Packed Quantity | 1 |
| RJ-45 Ports | 5 port 1000base-t |
| HS Code | 85176200 |
| Type of Ethernet Switch | Managed |
| Product Image | For Illustration Purposes Only |
| Country of Manufacture | Taiwan |
| Manufacturer | Wago |
| Manufacturer Part Number | 852-1411/000-001 |
| Alternative Product SKU | 8521411000001 |
