Wago 750-362 FC Modbus TCP

Why Choose the WAGO 750-362 Modbus TCP Fieldbus Coupler?

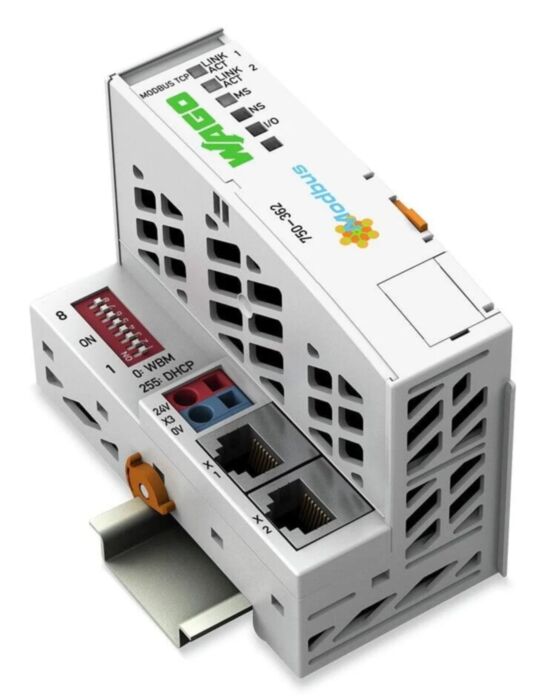

The WAGO 750-362 is a Modbus TCP/UDP fieldbus coupler designed to connect the modular WAGO I/O System 750/753 to industrial Ethernet networks. It acts as the communication interface between distributed field devices and PLC or SCADA systems, enabling reliable data exchange between connected I/O modules and Modbus-based automation controllers.

During system start-up, the coupler automatically detects all connected digital, analogue and specialty I/O modules and creates a local process image. This process image maps all signals from the I/O modules and transfers them through the Modbus TCP/UDP interface for communication with automation systems. :contentReference

The device features dual RJ-45 Ethernet interfaces with an integrated switch, allowing simple line topology wiring without the need for additional network switches or hubs. This makes the coupler ideal for distributed industrial automation systems and modern Ethernet-based control architectures. :contentReference

Key Advantages

• Reliable Modbus TCP/UDP communication over industrial Ethernet.
• Automatic detection and configuration of connected I/O modules.
• Integrated dual Ethernet ports with switch for line topology.
• Supports mixed installations of digital, analogue and specialty modules.
• Scalable architecture supporting up to 64 I/O modules per node.
• Web-based configuration and diagnostics via integrated web server.

Key Features

• Modbus TCP/UDP fieldbus coupler for WAGO I/O System 750/753.
• Communication speed up to 10/100 Mbit/s Ethernet.
• Integrated two RJ-45 Ethernet interfaces.
• Supports standard Ethernet protocols such as HTTP, DHCP, DNS and SNMP.
• Automatic creation of a local process image.
• DIP switch configuration for IP address assignment.
• DIN rail mounting for industrial control cabinets.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750 / 753
• Model: 750-362
• Device type: Modbus TCP fieldbus coupler
• Communication protocols: Modbus TCP, Modbus UDP
• Ethernet protocols: HTTP(S), BootP, DHCP, DNS, SNTP, FTP(S), SNMP
• Network connection: 2 × RJ-45 Ethernet
• Transmission speed: 10 / 100 Mbit/s
• Maximum modules per node: 64
• Maximum modules with bus extension: up to 250
• Process image: up to approx. 1020 words input / output
• Supply voltage: 24 V DC (−25% to +30%)
• Mounting: DIN rail (EN 60715)
• Operating temperature: approx. 0 °C to +55 °C
• Ingress protection: IP20

Industrial Ethernet Automation Integration

Industrial Ethernet networks are widely used in modern automation systems for connecting PLC controllers, I/O devices and supervisory systems. The WAGO 750-362 enables distributed field devices to communicate with control systems through the widely adopted Modbus TCP protocol, allowing easy integration into SCADA, PLC and industrial control environments. :contentReference

Within the WAGO I/O architecture, signals from connected modules are automatically mapped into the Ethernet process image and transmitted through the Modbus network. This simplifies system configuration and enables scalable distributed automation architectures. :contentReference

Typical Applications

• Distributed PLC I/O systems using Modbus TCP networks.
• Industrial machine automation.
• Factory automation and production systems.
• Process monitoring and control installations.
• Integration of sensors, actuators and analogue devices.

Trusted by Automation Engineers

WAGO Modbus TCP couplers are widely used by automation engineers to integrate distributed I/O modules into Ethernet-based industrial control networks.
