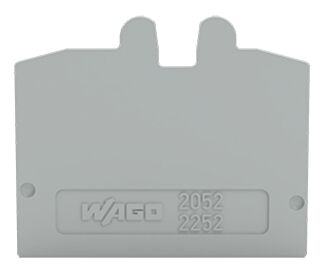

2052-1291 Wago End plate;gray
MPN: 2052-1291
Alt. SKU: 20521291
Special Price
£0.1344
£0.1120
Regular Price
£0.1680
2052-1291 Wago End plate;gray is available to buy in increments of 100
Why Choose the WAGO 2052-1291 Compact PCB Terminal Block?
The WAGO 2052-1291 is a compact surface-mount PCB terminal block designed for reliable conductor termination on printed circuit boards. Featuring WAGO’s proven Push-in CAGE CLAMP® spring pressure technology, the terminal enables fast, tool-free connection of solid or ferruled conductors while ensuring secure electrical contact and long-term reliability.
Part of the advanced WAGO PCB interconnection range, the 2052 series is engineered for high-density electronic assemblies where compact design and dependable electrical performance are essential. The terminal’s low profile and surface-mount configuration make it suitable for automated PCB assembly processes.
The Push-in connection technology allows conductors to be inserted directly into the terminal without tools, reducing wiring time while maintaining vibration-resistant electrical connections. This makes the component ideal for modern electronics, control modules and industrial device manufacturing.
Key Advantages
- Compact surface-mount PCB terminal block for high-density electronic assemblies.
- Push-in CAGE CLAMP® connection technology for tool-free conductor insertion.
- Reliable spring pressure contact for long-term electrical stability.
- Optimised for automated PCB assembly processes.
- Compact design reduces space requirements on printed circuit boards.
- Secure connection suitable for industrial electronics and control systems.
Key Features
- PCB terminal block for surface-mount technology (SMT).
- Push-in CAGE CLAMP® connection.
- 1 pole connection.
- Supports solid and ferruled conductors.
- Compact design for high-density circuit boards.
- Designed for automated SMT assembly.
- Reliable vibration-resistant electrical contact.
Technical Specifications
- Manufacturer: WAGO
- Model: 2052-1291
- Series: 2052 PCB terminal blocks
- Connection technology: Push-in CAGE CLAMP®
- Number of poles: 1
- Mounting type: Surface-mount (SMT)
- Conductor size: approx. 0.14 mm² to 1.5 mm²
- Rated voltage: up to 160 V
- Rated current: up to 10 A
- Contact material: Copper alloy
- Insulation material: High-temperature thermoplastic
- Application: PCB interconnection and device electronics
Reliable PCB Interconnection for Electronic Devices
Modern electronic equipment requires compact, reliable interconnection systems to link external wiring with printed circuit boards. PCB terminal blocks such as the WAGO 2052-1291 provide dependable electrical connections while supporting automated production and high-density circuit layouts.
Spring pressure termination technology eliminates the need for screw connections, reducing installation time while maintaining stable contact pressure even under vibration or thermal cycling.
Typical Applications
- Industrial control electronics.
- Automation device PCB assemblies.
- Electronic modules and control boards.
- Building automation and smart device electronics.
- Power distribution modules and interface boards.
Frequently Asked Questions
What is the WAGO 2052-1291 used for?
The 2052-1291 is a PCB terminal block used to connect external conductors to printed circuit boards in electronic and industrial devices.
What connection technology does it use?
The terminal uses WAGO’s Push-in CAGE CLAMP® spring pressure connection, allowing tool-free insertion of solid or ferruled conductors.
What conductor sizes are supported?
The terminal supports conductor sizes from approximately 0.14 mm² to 1.5 mm² depending on application requirements.
Is the terminal suitable for automated assembly?
Yes. The device is designed for surface-mount PCB assembly, making it suitable for automated production processes.
Where are PCB terminal blocks typically used?
They are commonly used in industrial electronics, automation controllers, building automation devices and electronic modules.
Trusted by Electronics Engineers
WAGO PCB terminal blocks are widely used by electronics manufacturers and automation engineers to create reliable, compact wiring connections in modern electronic devices.
| Manufacturer Part Number | 2052-1291 |
|---|---|
| Height | 222mm |
| Width | 94mm |
| Depth | 48mm |
| Manufacturer | Wago |
| Packed Quantity | 100 |
| HS Code | 85389099 |
| Barcode | 4066966154719 |
| Country of Manufacture | Germany |
| Alternative Product SKU | 20521291 |
