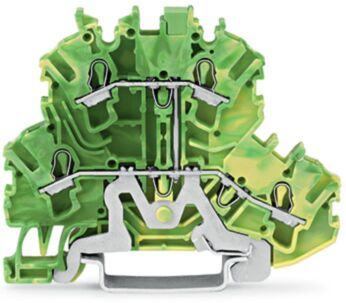

2002-2207 Wago Double-deck terminal block;4-conductor ground terminal block;2.5 mm²;green-yellow

Why Choose the WAGO 2002-2207 TOPJOB S Double-Deck Terminal Block?

The WAGO 2002-2207 is a reliable double-deck feed-through terminal block from the trusted WAGO TOPJOB S series. It provides two independent wiring levels within a compact housing, allowing engineers to maximise wiring density while maintaining clear and organised connections in industrial control panels.

Using WAGO’s proven CAGE CLAMP® spring pressure connection technology, the terminal block ensures secure conductor termination with consistent contact force. This spring-clamp system eliminates loose screw connections and delivers vibration-resistant electrical connections ideal for demanding industrial environments.

The terminal block mounts onto standard 35 mm DIN rails and supports conductor cross-sections up to 2.5 mm². Its double-deck configuration allows efficient signal routing and wiring distribution in PLC systems, automation panels and machine control installations.

Key Advantages

• Compact double-deck design increases wiring density.
• Reliable CAGE CLAMP® spring pressure connection.
• Supports conductors up to 2.5 mm².
• Ideal for signal distribution and control wiring.
• Quick and secure wiring with tool-operated spring clamp.
• Compatible with the full range of TOPJOB S accessories.

Key Features

• Double-deck feed-through terminal block.
• Part of the WAGO TOPJOB S terminal block system.
• CAGE CLAMP® spring pressure connection.
• Two wiring levels for compact panel layouts.
• DIN rail mounting for control cabinet installations.
• Compatible with marking systems and cross-connection jumpers.

Technical Specifications

• Manufacturer: WAGO
• Series: TOPJOB S
• Model: 2002-2207
• Terminal type: Double-deck feed-through terminal block
• Number of connections: 4 (two wiring levels)
• Connection technology: CAGE CLAMP® spring pressure
• Rated cross-section: 2.5 mm²
• Conductor range (solid): approx. 0.25 – 4 mm²
• Conductor range (stranded): approx. 0.25 – 2.5 mm²
• Rated voltage: up to 800 V
• Rated current: up to 24 A
• Mounting type: DIN rail (TS 35)
• Housing material: Polyamide (PA66)
• Operating temperature: approx. −60 °C to +105 °C
• Application: Industrial control panel wiring

Efficient Wiring for Industrial Control Panels

Double-deck terminal blocks allow engineers to increase wiring density without expanding panel size. By stacking connection levels vertically, they provide an efficient way to manage signals, control circuits and distribution wiring within compact automation cabinets.

The WAGO TOPJOB S ecosystem combines terminal blocks with accessories such as cross-connectors, end plates, marker carriers and test adapters. This modular system allows engineers to design flexible and maintainable wiring solutions for industrial automation and electrical distribution systems.

Typical Applications

• Industrial control cabinet wiring.
• PLC signal and control wiring.
• Machine automation systems.
• Electrical distribution panels.
• High-density automation panel installations.

Trusted by Panel Builders

WAGO TOPJOB S terminal blocks are widely trusted by automation engineers and panel builders for reliable connections, fast installation and organised industrial wiring systems.
