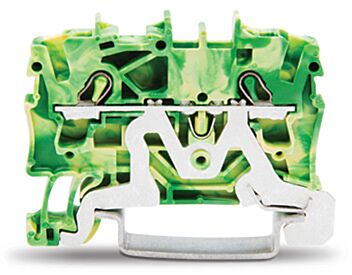

2002-1207 Wago 2-conductor ground terminal block;2.5 mm²;suitable for Ex e II applications;green-yellow

Why Choose the WAGO 2002-1207 TOPJOB S Terminal Block?

The WAGO 2002-1207 is a high-quality 2-conductor feed-through terminal block from the reliable WAGO TOPJOB S series, designed for safe and efficient wiring in industrial control panels and electrical installations. It provides secure conductor termination with WAGO’s proven CAGE CLAMP® spring pressure connection technology, ensuring reliable electrical contact even under vibration or thermal cycling.

This terminal block supports conductors up to 2.5 mm² and mounts on standard DIN rail systems, making it ideal for control cabinets, automation equipment and building installations. Its compact design allows high wiring density while maintaining clear conductor identification and easy installation.

TOPJOB S terminal blocks are widely used by panel builders and electrical engineers thanks to their tool-operated spring clamp connection, which allows fast wiring, consistent contact pressure and maintenance-free operation in demanding environments.

Key Advantages

• Reliable CAGE CLAMP® spring pressure connection technology.
• Supports conductors up to 2.5 mm².
• Compact design allows high wiring density in control cabinets.
• Quick and secure wiring using a tool-operated clamp system.
• Compatible with a wide range of TOPJOB S accessories.
• Maintenance-free electrical connection suitable for industrial environments.

Key Features

• 2-conductor feed-through terminal block.
• Part of the WAGO TOPJOB S terminal block series.
• CAGE CLAMP® spring pressure connection.
• Designed for DIN rail mounting.
• Supports conductor cross-sections up to 2.5 mm².
• Compatible with marking systems and accessories.
• Suitable for industrial control panel wiring.

Technical Specifications

• Manufacturer: WAGO
• Series: TOPJOB S
• Model: 2002-1207
• Terminal type: Feed-through terminal block
• Number of connections: 2
• Connection technology: CAGE CLAMP® spring pressure
• Rated cross-section: 2.5 mm²
• Conductor range (solid): approx. 0.25 – 4 mm²
• Conductor range (stranded): approx. 0.25 – 2.5 mm²
• Rated voltage: up to 800 V
• Rated current: up to 24 A
• Mounting type: DIN rail (TS 35)
• Housing material: Polyamide (PA66)
• Operating temperature: −60 °C to +105 °C
• Application: Control panel wiring and electrical distribution

Reliable Terminal Blocks for Industrial Wiring

Terminal blocks are essential components in industrial electrical installations, providing safe and organised connections between field wiring and control systems. Spring clamp technology ensures consistent contact pressure, reducing the risk of loose connections caused by vibration or thermal expansion.

The WAGO TOPJOB S series is widely used in industrial automation, machine building and electrical distribution systems thanks to its modular design and compatibility with accessories such as jumpers, markers and test adapters.

Typical Applications

• Industrial control cabinet wiring.
• Machine automation systems.
• Electrical distribution panels.
• PLC and I/O wiring installations.
• Building automation and electrical infrastructure.

Trusted by Panel Builders

WAGO TOPJOB S terminal blocks are widely trusted by control panel builders and electrical engineers for their reliability, fast installation and maintenance-free spring clamp technology.
