UMI-0007EU-B1 Unitronics | 0.75 kW 3 Phase 380-480VAC | VSD
MPN: UMI-0007EU-B1
Alt. SKU: UMI0007EUB1
Special Price
£244.55
£203.79
Regular Price
£287.70
Why Choose the Unitronics UMI-0007EU-B1 0.75 kW 1 HP B1 Series Variable Frequency Drive
The Unitronics UMI-0007EU-B1 is a compact B1 Series variable frequency drive for precise control of three phase motors on a 380-480 V AC supply. With 0.75 kW output, built in Modbus RTU and Safe Torque Off, it suits OEM panels, conveyors, fans and pumps that need reliable vector control in a small footprint.
At a Glance
- Rated output: 0.75 kW 1 HP
- Supply: 380-480 V AC three phase, 50 or 60 Hz
- Rated output current: 2.5 A typical
- Output frequency: 0-400 Hz
- Control methods: SVPWM and Sensorless Vector Control
- Safety: Safe Torque Off included
- Communication: RS-485 with Modbus RTU built in, expansion options available
- Enclosure: IP20, air cooled
- Approx. dimensions W x H x D: 80 x 185 x 140.5 mm
Key Benefits
- Compact performance: 0.75 kW vector control capability in a slim frame to save panel space.
- Safety ready: Built in STO reduces the need for separate safety contactor modules.
- Easy integration: Native Modbus RTU and optional communication cards for wider networks.
- Robust overload: Heavy duty overload handling up to 200 percent for 1 second helps with high inertia starts.
Technical Specifications
- Model: UMI-0007EU-B1
- Series: Unitronics B1 Series
- Rated power: 0.75 kW 1 HP
- Input: 380-480 V AC three phase, 50 or 60 Hz
- Rated output current: 2.5 A typical
- Output frequency: 0-400 Hz
- Overload capacity: 150 percent for 60 s, 180 percent for 10 s, 200 percent for 1 s
- Control: SVPWM, SVC sensorless vector, auto tune
- Safety: Safe Torque Off
- Communication: Modbus RTU via RS-485, optional Ethernet or fieldbus cards
- Cooling: Air cooling
- Enclosure rating: IP20
- Mounting: Wall, rail or flange depending on frame size
- Approx. dimensions W x H x D: 80 x 185 x 140.5 mm
- Operating temperature: minus 10 to plus 50 °C, apply de rating above 40 °C
- Standards: CE, UL, cULus, STO certified per B1 series documentation
Typical Applications
- Conveyors and packaging machinery
- Fans, pumps and HVAC drives on 400-480 V networks
- OEM control panels needing compact VFDs with safety
- General purpose three phase motor speed control
Installation tip: Match motor full load current to the drive rating, wire STO according to the safety section of the manual, and maintain ventilation clearances. De rate for ambient temperatures above 40 °C.
Frequently Asked Questions
Which motor types are supported
Standard three phase induction motors are supported. Sensorless vector control improves low speed torque and regulation. Check the manual if using special motors.
Does this model include Safe Torque Off
Yes. STO is built into the B1 series and can be wired to meet the required safety performance level when installed correctly.
What overload can it handle
Heavy duty overload is 150 percent for 60 seconds, 180 percent for 10 seconds and 200 percent for 1 second to cover starting and transient loads.
What communications are available
Built in RS-485 with Modbus RTU. Optional cards are available for Ethernet or other fieldbus protocols depending on system requirements.
What are the physical dimensions
Approx. 80 x 185 x 140.5 mm frame size. Allow additional space for cables and airflow inside the panel.
| Manufacturer Part Number | UMI-0007EU-B1 |
|---|---|
| Communication | MODBUS RTU RS-485 |
| Height | 185mm |
| Width | 80mm |
| Depth | 140.5mm |
| Amperage | 2.5A |
| Analog Input | 1 x 0-10V/0-20mA, 1x 0-10V |
| Analog Output | 1 X 0-10V, 0-20mA |
| Compliance | CE, cUL, TUV-SUD, UL |
| Control Method | SVPWM (Space Vector PWM), SVC (Sensorless Vector Control) |
| Coating PCB | Coated PCB |
| Control Panel | Film Keypad |
| Control Setting | Analog, Digital, MODBUS, PID, Pulse |
| Cooling | Air Cooling |
| Digital Inputs | 1 x 50kHz, 4 x 1kHz |
| Dynamic Breaking Unit | Optional |
| Filter | C3 Filter Optional |
| HP Rating | 1 |
| Input Phases | Three Phase |
| Input Frequency | 50/60Hz |
| Degree of protection (IP) | IP20 |
| KW Rating | 0.75kW |
| Output Frequency | 400Hz |
| Overload Capacity 150% | 60 Seconds |
| Overload Capacity 180% | 10 Seconds |
| Overload Capacity 200% | 1 Second |
| Output Phases | Three phase |
| Supported Motors | Asynchronous Induction Motors, Three Phase Input |
| Voltage | 380/480VAC |
| VSD Range | Unitronics B1 |

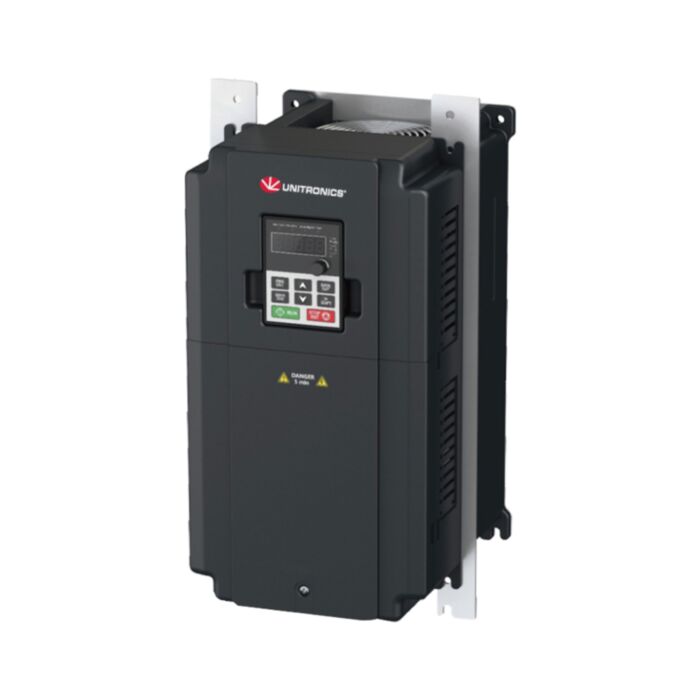

| Product Image | For Illustration Purposes Only |
| Manufacturer | Unitronics |
| Alternative Product SKU | UMI0007EUB1 |
