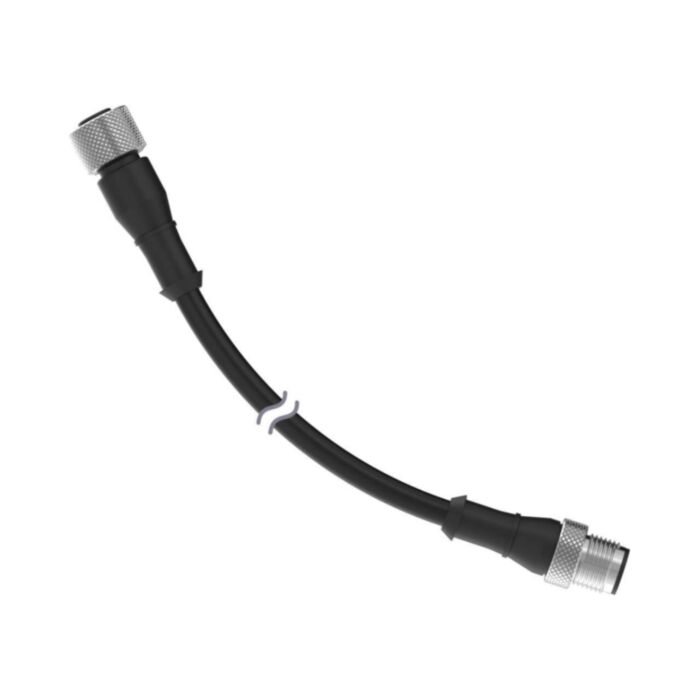

BC-M12F5-M12M5-22-2 Cordset: 2m Double-Ended M12 connections
MPN: BC-M12F5-M12M5-22-2
Alt. SKU: 815149
Why Choose the Banner BC‑M12F5‑M12M5‑22‑2 2 m Double‑Ended M12 Cordset?
The Banner BC‑M12F5‑M12M5‑22‑2 is a rugged, industrial-grade 2 m M12 quick-disconnect cable featuring 5‑pin A‑coded female-to-male connectors. Engineered for demanding environments in industrial automation, machine control, and factory networking, it ensures secure signal and power delivery with its PVC jacket, IP66/IP67/IP68 sealing, and durable nickel-plated brass coupling. Perfect for PLCs, sensors, lighting modules, and control systems requiring reliable and rapid connections in harsh conditions.
Technical Specifications
- Product Code: BC‑M12F5‑M12M5‑22‑2
- Connector A: M12 female, 5‑pin, A‑coded
- Connector B: M12 male, 5‑pin, A‑coded
- Cable Length: 2 m (6.56 ft)
- Jacket Material: Black PVC, round
- Coupling Nuts: Nickel‑plated brass
- Current Rating: 4 A
- Voltage Rating: 60 V AC/DC
- Environmental Protection: IP66, IP67, IP68 (dust-tight, water-resistant, submersible)
- Certifications: RoHS compliant, CE via system compatibility
Key Features
- Quick and secure connection: Tool-free M12 interface ideal for modular installations
- 2 m cable length: Provides flexible placement for sensors, lights, and devices without extensions
- Industrial-rated sealing: IP68 protection guards against water, dust, and environmental damage
- Durable construction: Vibration-resistant nickel-plated connectors and robust PVC sheath
Compatibility & Accessories
Part of Banner’s BC-series cordsets, the BC‑M12F5‑M12M5‑22‑2 is compatible with:
- SD50 status displays
- Banner lighting, photoelectric, and presence sensors
- PLC I/O modules and control boxes
Also available in 1 m, 5 m, 8 m, 10 m, and shielded or angled variants to suit diverse cable routing requirements.
Used by Professionals Worldwide
“Our production line relies on these 2 m M12 cables—they’re robust, agile, and keep everything connected even in wet conditions.” – Panel Wiring Technician
Frequently Asked Questions
- What environments can this cordset withstand?
- Is it resistant to vibration?
- Are other lengths available?
- What connectors are used?
It is rated IP66, IP67, and IP68, meaning it resists dust, water jets, and temporary submersion—ideal for washdown or harsh manufacturing environments.
Yes, the cable complies with IEC standards for vibration and shock, making it suitable for use on machinery, robotics, and mobile platforms.
Yes, Banner offers this cordset series in 1 m, 5 m, 8 m, 10 m and longer, including options with shielding or angled connectors for specific needs.
The cordset features A‑coded M12 connectors: a 5‑pin female on one end and a 5‑pin male on the other, supporting both signal and low-voltage power applications.
| Manufacturer Part Number | BC-M12F5-M12M5-22-2 |
|---|---|
| Alternative Product SKU | 815149 |
| Manufacturer | Turck Banner |
| Packed Quantity | 1 |
| Colour | Black |
