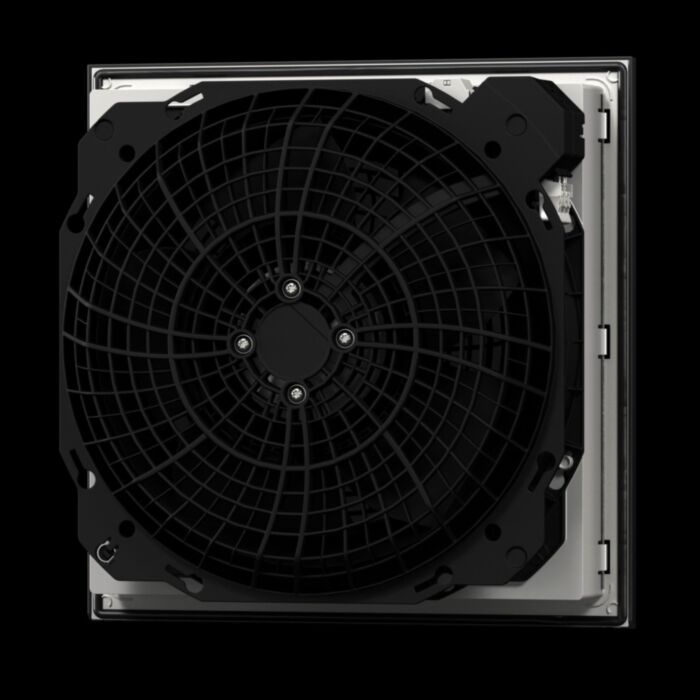

SK3245.910 Rittal Blue e+ EC fan-and-filter unit 1161 m³/h, 100 V-130 V, RAL 7035

Why Choose the Rittal SK 3245.910 Blue e+ Filter Fan?

The Rittal SK 3245.910 is a high-efficiency Blue e+ filter fan unit with EC technology, designed to deliver reliable enclosure cooling while minimising energy consumption. It is engineered for industrial control panels, IT enclosures and automation systems where consistent airflow and thermal management are critical.

Utilising advanced electronically commutated (EC) motor technology, this filter fan offers intelligent control, improved efficiency and enhanced performance compared to traditional AC fans. It also supports modern monitoring interfaces, making it suitable for Industry 4.0 and smart infrastructure applications.

With airflow performance of up to 1,161 m³/h and a compact wall-mounted design, the SK 3245.910 provides powerful ventilation for medium to large enclosures while maintaining low operating costs.

Key Advantages

• High-performance filter fan with EC motor technology.
• Airflow up to 1,161 m³/h for efficient enclosure cooling.
• Energy-efficient design reduces power consumption and operating costs.
• Supports IoT integration and monitoring.
• Improved pressure stability for consistent airflow distribution.
• Tool-free installation and quick filter replacement.

Key Features

• Rittal Blue e+ filter fan unit.
• Diagonal fan with EC motor for stable airflow.
• Integrated pleated filter included as standard.
• Snap-fit mounting system for fast installation.
• 0–10 V / PWM interface for speed control and monitoring.
• Optimised louvre design for improved airflow and protection.
• Compatible with outlet filters for complete airflow systems.

Technical Specifications

• Manufacturer: Rittal
• Series: Blue e+
• Model: SK 3245.910
• Product type: Filter fan unit
• Airflow (free blowing): up to 1,161 m³/h
• Airflow range: approx. 175–1,160 m³/h depending on configuration
• Voltage: 100–130 V AC, single phase
• Frequency: 50 / 60 Hz
• Power consumption: approx. 174.6 W
• Current: approx. 2.52 A
• Protection rating: IP51–IP56 depending on filter configuration
• Dimensions (W × H × D): 323 × 323 × 156 mm
• Installation depth: approx. 136 mm
• Operating temperature: -25 °C to +55 °C
• Noise level: approx. 72 dB(A)
• Weight: approx. 4.17 kg

Advanced Cooling for Industrial Enclosures

The SK 3245.910 is designed to maintain stable internal temperatures by removing excess heat and ensuring consistent airflow. Its diagonal fan technology improves pressure stability, resulting in more even air distribution throughout the enclosure.

The integrated filter system prevents dust and contaminants from entering the enclosure, protecting sensitive electronics and reducing maintenance requirements in demanding industrial environments.

Typical Applications

• Industrial control panels and automation systems.
• Electrical enclosures and switchgear cabinets.
• Data cabinets and IT infrastructure.
• Manufacturing and processing environments.
• Telecommunications equipment enclosures.
• Energy and power distribution systems.

Trusted by Engineers Worldwide

Rittal Blue e+ filter fan units are widely trusted for delivering energy-efficient, high-performance enclosure cooling in industrial automation and IT applications.
