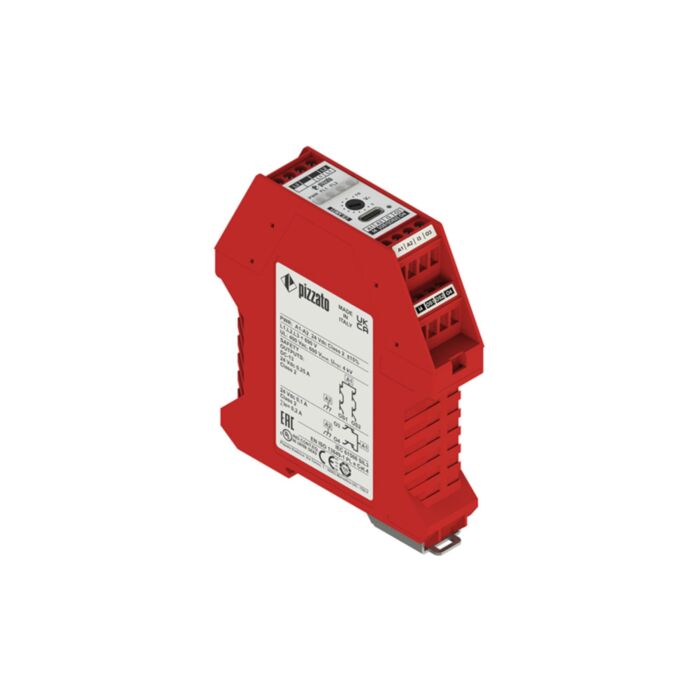

CS AM31P1VU Pizzato CS Series Safety Module with motor standstill detection
MPN: CS AM31P1VU
Alt. SKU: CSAM31P1VU
£897.00
£747.50
Why Choose the CSAM31P1VU
The Pizzato Elettrica CSAM31P1VU is a dedicated safety module from the CS AM series, designed for monitoring motor standstill, speed, and direction of rotation in industrial automation systems. The unit is programmable via a USB port, offering flexible configuration to meet complex safety requirements for motor-driven applications.
Engineered for integration into modern safety architectures, this module features 2 OSSD outputs and utilises reliable screw terminal connections. Certified up to Category 4, SIL 3, PL e, it meets stringent international standards and is backed by multiple approvals to ensure proven performance in demanding environments.
Key Benefits
- Comprehensive safety monitoring for motor standstill, speed, and direction of rotation
- Programmable operation for tailored functionality via USB
- 2 OSSD outputs for integration with safety-related circuits
- Screw terminal connections for secure, reliable wiring
- Certified up to Cat. 4, SIL 3, PL e for demanding applications
- Backed by EAC, TÜV SÜD, and UKCA certifications
Technical Specification
- Manufacturer: Pizzato Elettrica
- Series: CS AM series
- Product type: Safety module for monitoring motor standstill, speed, and direction of rotation
- Device configuration: Programmable with USB port
- Outputs: 2 OSSD outputs
- Connection: Screw terminals
- Standards: Up to Cat. 4, SIL 3, PL e
- Approvals: EAC Certificate, EU Type examination certificate, TÜV SÜD Certificate, UE Declaration of Conformity, UKCA Declaration of Conformity
Applications
- Monitoring electric motor standstill and rotational direction in safety circuits
- Ensuring safe access or intervention when hazardous movement has ceased
- Manufacturing automation and robotic cells where confirmed motor status is critical
- Packing, material handling, and conveyor systems requiring high-integrity stopping assurance
Frequently Asked Questions
What functions does the CSAM31P1VU provide?
It monitors the standstill, speed, and direction of rotation of a motor and provides OSSD safety outputs for system integration.
How is the device configured?
The module is programmable via an onboard USB port, allowing detailed configuration to match specific application needs.
What are OSSD outputs?
OSSD (Output Signal Switching Device) outputs are solid-state signals commonly used in safety-related automation for high-integrity communication to safety PLCs or relays.
What certifications does the module carry?
The CSAM31P1VU holds EAC Certificate, EU Type examination certificate, TÜV SÜD Certificate, UE Declaration of Conformity, and UKCA Declaration of Conformity.
Which safety performance standards does it meet?
It is certified up to Category 4, SIL 3, and PL e, providing compatibility with advanced safety architectures.
How is the module connected in the control panel?
Integration is straightforward using screw terminal connections, offering secure and reliable wiring for industrial environments.
| Manufacturer | Pizzato |
|---|---|
| Range | CSAM3 |
| HS Code | 85369095 |
| Barcode | 8018851676741 |
| Packed Quantity | 1 |
| Alternative Product SKU | CSAM31P1VU |
| Manufacturer Part Number | CS AM31P1VU |
