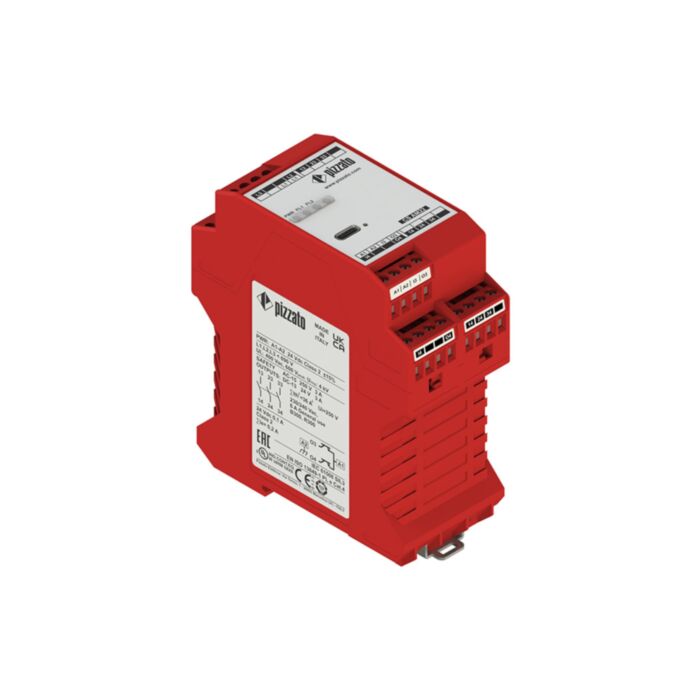

CS AM22P1MU Pizzato CS Series Safety Module with motor standstill detection
MPN: CS AM22P1MU
Alt. SKU: CSAM22P1MU
£804.88
£670.73
Why Choose the CSAM22P1MU
The Pizzato Elettrica CSAM22P1MU is a CS AM series safety module designed for monitoring motor speed and direction of rotation up to Cat. 4, SIL 3, PL e. Its monitoring function is essential for applications requiring reliable detection of motor standstill or abnormal speed to enable safe access or machine operation.
With 3 NO safety contacts for direct integration into safety circuits and a practical connector with screw terminals, the CSAM22P1MU simplifies installation while achieving high integrity levels suitable for demanding requirements in industrial automation.
Key Benefits
- Motor speed and direction monitoring to support safe access and shutdown procedures
- Achieves up to Category 4, SIL 3, PL e safety ratings
- 3 NO safety contacts for integration into a variety of safety architectures
- Screw terminal connector ensures secure and simple wiring
- Enables compliance with rigorous safety standards for machine control
Technical Specification
- Manufacturer: Pizzato Elettrica
- Series: CS AM series
- Product type: Safety module with motor speed detection
- Device configuration: Module for monitoring of motor speed and direction of rotation, up to Cat. 4, SIL 3, PL e
- Contacts: 3 NO safety contacts
- Connection: Connector with screw terminals
What’s Included
- CSAM22P1MU safety module
- Connector with screw terminals for wiring
- Manufacturer documentation
Applications
- Safety circuits requiring motor standstill monitoring
- Guard locking logic based on verified zero-speed
- Industrial machines with high-inertia driven parts
- Machinery with risk of hazardous movement after stop request
Frequently Asked Questions
What does the CSAM22P1MU safety module do?
It monitors the speed and direction of rotation of motors, enabling safety circuits to determine safe standstill or abnormal speed conditions.
Which safety categories does this module support?
It is suitable for circuits up to Category 4, SIL 3, and PL e.
How many safety contacts are available?
The module provides three normally open (NO) safety contacts for integration into safety circuits.
How is the module wired?
The unit features a connector with screw terminals for reliable and straightforward connection to control panels and safety devices.
What types of machines benefit from motor speed detection?
Applications include machines with high-inertia moving parts or where safe access can only be granted after motor standstill is positively verified.
Safety note: This safety module is a key part of machine safety architecture and should be integrated in accordance with the machine risk assessment and applicable standards. Always refer to Pizzato Elettrica documentation for installation and maintenance procedures.
| Manufacturer | Pizzato |
|---|---|
| Range | CSAM2 |
| HS Code | 85369095 |
| Barcode | 8018851660566 |
| Packed Quantity | 1 |
| Alternative Product SKU | CSAM22P1MU |
| Manufacturer Part Number | CS AM22P1MU |
