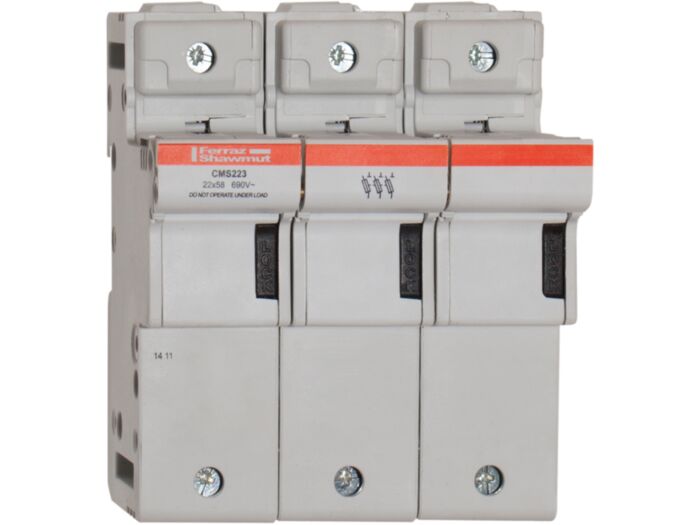

MERSEN FUSE BASE MOD. CMS.22 3P E331135
MPN: E331135
Alt. SKU: CMS223
Special Price
£40.68
£33.90
Regular Price
£73.97
MERSEN FUSE BASE MOD. CMS.22 3P E331135 is available to buy in increments of 2
Why Choose the Modulostar® Fuse Holder 22x58 IEC 690VAC/690VDC 3-Pole+N IP20 with Microswitch (CMS223 Nm)?
The Modulostar® 22x58 fuse holder offers reliable circuit protection for both AC and DC applications up to 690V, supporting 3-pole and neutral configurations. Its compact modular design streamlines panel assembly and enhances safety with comprehensive IP20 touch protection.
Featuring an integrated auxiliary microswitch for status monitoring and fast response, the CMS223 Nm is engineered for easy installation and robust performance in demanding industrial environments. Suitable for switchboards, motor protection, and energy distribution networks.
Technical Specifications
- Item number: T331102
- Catalogue No: CMS223 Nm
- Description: Fuse Holder Modulostar® Size 22x58 IEC 690VAC 690VDC 3-Pole+N IP20 With Microswitch
- EAN/UPC Code: 8430399000497
- Rated voltage AC IEC: 690 V
- Rated voltage DC IEC: 690 V
- Ampere Rating: 125 A
- AC or DC: AC/DC
- Short Circuit Current Rating (SCCR): 100 kA
- Fuse Size: 22x58
- Design Details: CMS22 triple pole + neutral conductor
- Indication System: Yes
- Indication System Type: Microswitch
- Number of Poles: 3-Pole+N
- Torque Rating: 4 Nm
- Rated Impulse Withstand Voltage: 8 kV
- Rated Insulation Voltage: 690 V
- Installation Mounting: DIN rail acc. EN 60715
- Product Width: 140 mm
- Product Length: 76.5 mm
- Product Height: 127.5 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 0.861 kg
- Sell Pack Width: 135 mm
- Sell Pack Length: 235 mm
- Sell Pack Height: 85 mm
- Product group: Fuse Holders
- Conventional Free Air thermal Current With Fuse-Links Ith: 125 A
- Product Weight: 0.861 kg
Product Code: CMS223 Nm
Key Benefits
- High voltage rating suitable for both AC and DC applications up to 690V
- Integrated microswitch for reliable status indication and monitoring
- Compact modular design for easy installation and space-saving panel assembly
- IP20 touch protection enhances user safety during operation and maintenance
- Robust construction ensures durability in demanding industrial environments
- Compatible with standard DIN rail mounting for quick and secure installation
Compatibility
The CMS223 Nm fuse holder is compatible with 22x58 size fuse-links and designed for use with CMS22 triple pole plus neutral conductor systems. It fits standard DIN rails as per EN 60715, making it suitable for integration into a wide range of switchboards, motor protection circuits, and energy distribution panels.
Applications
- Industrial switchboards and control panels
- Motor protection circuits
- Energy distribution networks
- Renewable energy installations
- Machinery and equipment protection
Frequently Asked Questions
What fuse sizes are compatible with this fuse holder?
The CMS223 Nm is designed to accommodate 22x58 size fuse-links.
Can this fuse holder be used for both AC and DC applications?
Yes, it is rated for use with both AC and DC voltages up to 690V.
What type of mounting does this fuse holder require?
It is designed for DIN rail mounting according to EN 60715 standards.
Does the fuse holder provide any indication of fuse status?
Yes, it features an integrated microswitch for status monitoring and indication.
What is the maximum current rating for this fuse holder?
The fuse holder supports up to 125 A conventional free air thermal current.
Common Search Terms
Modulostar fuse holder, 22x58 fuse holder, 690V fuse holder, 3-pole fuse holder with neutral, fuse holder with microswitch, DIN rail fuse holder, industrial fuse holder, CMS223 Nm, high voltage fuse holder, IP20 fuse holder
| Manufacturer Part Number | E331135 |
|---|---|
| Packed Quantity | 2 |
| Barcode | 8430399000404 |
| Height | 76.5mm |
| Width | 105mm |
| Depth | 127.5mm |
| HS Code | 85361090 |
| Country of Manufacture | Tunisia |
| Manufacturer | Mersen |
| Alternative Product SKU | CMS223 |
