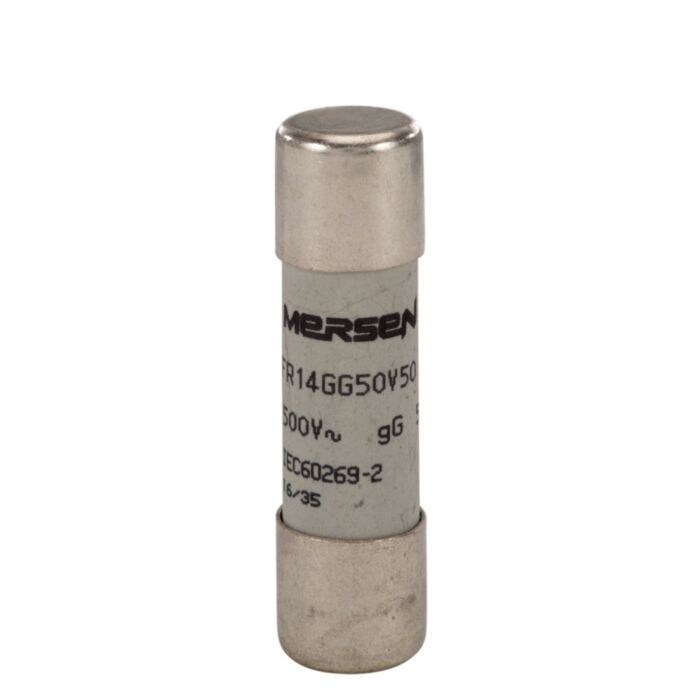

MERSEN FUSE 500V CP 14X51 GG 50A S/I FR14GG50V50
MPN: Z219235
Alt. SKU: FR14GG50V50
Special Price
£1.43
£1.19
Regular Price
£2.60
MERSEN FUSE 500V CP 14X51 GG 50A S/I FR14GG50V50 is available to buy in increments of 10
Why Choose the Cylindrical Fuse-Link gG Size 14x51 IEC 500VAC 50A With Striker FR14GG50V50P?
This high-performance cylindrical fuse-link is engineered for reliable protection of low-voltage circuits rated up to 500VAC, with a robust 50A current rating. Compliant with IEC standards, it ensures dependable interruption capacity and circuit safety in demanding industrial applications.
Featuring a built-in striker for easy status indication and remote signalling, the FR14GG50V50P streamlines fuse monitoring and replacement. Its compact 14x51 mm form factor facilitates straightforward integration into existing fuse holders and panels.
Technical Specifications
- Item number: D211557
- Catalogue No: FR14GG50V50P
- Description: Cylindrical fuse-link gG Size 14x51 IEC 500VAC 50A With Striker
- EAN/UPC Code: 8430399008622
- Rated voltage AC IEC: 500 V
- Rated voltage DC IEC: 250 V
- Ampere Rating: 50 A
- AC or DC: AC/DC
- Speed/Characteristic: gG
- Fuse Size: 14x51
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 120 kA
- Max. Rated Breaking Capacity DC: 100 kA @ 250 V, L/R = 15 ms
- Indication System: Yes
- Indication System Type: Striker
- Connection/Terminal Material: Silver-Plated Copper
- Connection/Terminal Type: Ferrule
- Product Diameter: 14.3 mm
- Product Length: 51 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.21 kg
- Sell Pack Width: 75 mm
- Sell Pack Length: 104 mm
- Sell Pack Height: 16 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.021 kg
- Power Dissipation at Rated Current Value: 4.8 W
Product Code: FR14GG50V50P
Key Benefits
- Reliable protection for low-voltage circuits up to 500VAC and 50A.
- Built-in striker for clear visual indication and remote signalling of fuse status.
- High breaking capacity ensuring safety in demanding industrial environments.
- Compact 14x51 mm size for easy installation in standard fuse holders.
- Ceramic body provides excellent insulation and durability.
- Silver-plated copper terminals ensure optimal electrical conductivity and corrosion resistance.
Compatibility
The FR14GG50V50P fuse-link is compatible with standard IEC 14x51 fuse holders and panels designed for gG characteristic fuses. It supports both AC and DC applications up to the rated voltages and can be integrated seamlessly into existing low voltage industrial electrical systems requiring reliable circuit protection.
Applications
- Industrial motor protection circuits.
- Control panels and distribution boards.
- Power supply and transformer protection.
- Machinery and automation equipment.
- General low-voltage electrical installations requiring gG fuse protection.
Frequently Asked Questions
What does the gG characteristic mean?
The gG characteristic indicates that the fuse is a general-purpose fuse capable of protecting cables and equipment against overloads and short circuits in industrial and commercial applications.
Can this fuse be used in DC circuits?
Yes, the FR14GG50V50P is rated for both AC (500 V) and DC (250 V) applications, making it suitable for a variety of low voltage circuit types.
How does the striker indication system work?
The built-in striker mechanism triggers a visible indicator and can activate remote signalling devices to alert operators when the fuse has blown, facilitating quick maintenance and replacement.
What is the breaking capacity of this fuse?
The fuse has a maximum breaking capacity of 120 kA for AC at 500 V and 100 kA for DC at 250 V with L/R = 15 ms, ensuring safe interruption of high fault currents.
Common Search Terms
14x51 fuse, cylindrical fuse-link, 50A fuse, IEC fuse-link, gG fuse, low voltage fuse, fuse with striker, industrial fuse, 500V fuse, DC and AC fuse, ceramic fuse-link
| Manufacturer Part Number | Z219235 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 8430399008363 |
| Height | 51mm |
| Width | 14.3mm |
| Depth | 14.3mm |
| HS Code | 85361050 |
| Country of Manufacture | Tunisia |
| Manufacturer | Mersen |
| Alternative Product SKU | FR14GG50V50 |
