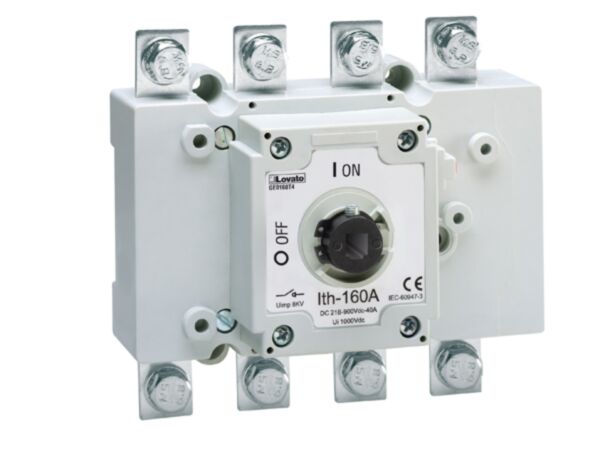

GE0160T4 - 4P SWITCH DISCONNECTOR

Why Choose the GE0160T4?

Lovato GE0160T4 is a four-pole switch disconnector engineered for dependable AC isolation in industrial panels. With Ith 160 A, Ui 1000 V and 8 kV impulse withstand, it handles demanding duties across AC21A, AC22A and AC23A categories, delivering up to 160 A at 400 V AC23A. Rated operational power reaches 90 kW at 400 V and 75 kW at 690 V, supporting robust load breaking and safe maintenance.

Designed for screw-on plate installation, the GE series device offers IP20 frontal protection and a conditional short-circuit current of 100 kA when protected by a gG160 fuse. It delivers a mechanical life of 30000 cycles and low 4 W max dissipation per pole. Operating from -25 to 55 °C up to 3000 m altitude (pollution degree 3), it meets IEC/EN 60947-1 and 60947-3.

Key Benefits

• Four-pole AC isolation with 160 A Ith for robust switching.
• High insulation ratings: Ui 1000 V and Uimp 8 kV.
• AC23A performance up to 160 A at 400 V.
• Conditional short-circuit current 100 kA with gG160 fuse.
• IP20 frontal protection improves safety at the panel interface.
• Screw-on plate mounting for quick, straightforward panel integration.
• Operates -25 to 55 °C; suitable up to 3000 m altitude.

Technical Specification

• Product type designation: GE
• Number of poles: 4
• Operating voltage type: AC
• Ith (IEC): 160 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 160 A
• Operating current Ie AC21A 500 V: 160 A
• Operating current Ie AC21A 690 V: 160 A
• Operating current Ie AC22A 400 V: 160 A
• Operating current Ie AC22A 500 V: 160 A
• Operating current Ie AC22A 690 V: 125 A
• Operating current Ie AC23A 400 V: 160 A
• Operating current Ie AC23A 500 V: 125 A
• Operating current Ie AC23A 690 V: 80 A
• Power dissipation per pole (max): 4 W
• Rated operational power AC23A 400 V: 90 kW
• Rated operational power AC23A 690 V: 75 kW
• Conditional short-circuit current (rms): 100 kA
• Short-circuit protection fuse: gG160
• Making capacity AC23A 400 V: 1600 A
• Breaking capacity AC23A 400 V: 1280 A
• Mechanical life: 30000 cycles
• Terminal tightening torque (max): 13 Nm
• Operating temperature: -25 to 55 °C
• Storage temperature: -40 to 70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GE0160T4 switch disconnector
• Installation and operation guide
• Manufacturer datasheet (PDF)

Applications

• Industrial control panels and distribution switchboards
• Main isolation for machinery and motor circuits
• Load breaking for resistive and mixed AC loads (AC21A/AC22A/AC23A)
• HVAC, pumping and building services equipment
• Maintenance isolation in plant rooms and workshops

Safety note: Install and commission only by qualified personnel. Isolate power before work, use the specified gG160 fuse for short-circuit protection, and observe IP20 frontal rating, temperature limits, and IEC/EN 60947 requirements.
