GE0160B - 3P SWITCH DISCONNECTOR W/BS FUSE HOLDER

Why Choose the GE0160B?

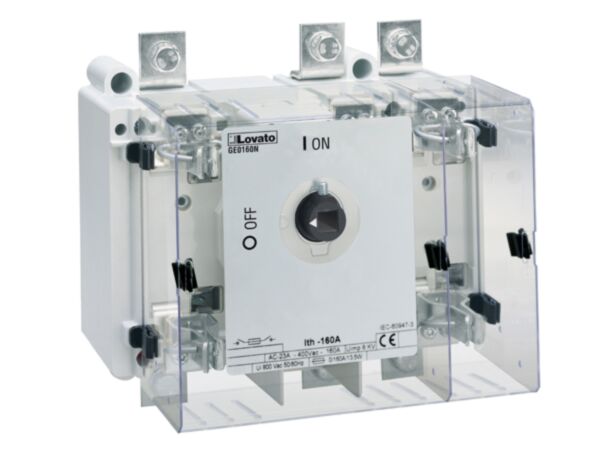

Lovato’s GE0160B is a robust three-pole switch disconnector with BS fuse holder for reliable load isolation and switching. Rated Ith 160 A with AC operation to 690 V, it delivers AC21/AC22/AC23 performance across common voltages. With Ui 800 V and Uimp 8 kV, this compact unit helps safeguard circuits while meeting IEC/EN 60947-1/3 requirements in industrial and commercial panels.

Designed for straightforward panel integration, it features screw-on plate mounting, IP20 frontal protection and a maximum terminal torque of 13 Nm. The device withstands demanding duty with 100 kA conditional short-circuit current, 1600 A making and 1280 A breaking at AC-23A 400 V. Operating from -25 to 55 °C, with 10,000 mechanical cycles and 3000 m altitude capability, it supports dependable service.

Key Benefits

• 3-pole AC switch disconnector with integrated BS fuse holder
• 160 A Ith and up to 690 V AC operation
• High making and breaking capacity for AC-23A duty
• Conditional short-circuit withstand rating of 100 kA rms
• IP20 frontal protection; designed for pollution degree 3 environments
• Long service life with 10,000 mechanical operating cycles
• Screw-on plate mounting and 13 Nm terminal torque
• Rated operational power 90 kW at 400/690 V AC-23A

Technical Specification

• Product type designation: GE
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 160 A
• Rated insulation voltage Ui (IEC/EN): 800 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 160 A
• Operating current Ie AC21A 500 V: 160 A
• Operating current Ie AC21A 690 V: 160 A
• Operating current Ie AC22A 400 V: 160 A
• Operating current Ie AC22A 500 V: 160 A
• Operating current Ie AC22A 690 V: 125 A
• Operating current Ie AC23A 400 V: 160 A
• Operating current Ie AC23A 500 V: 125 A
• Operating current Ie AC23A 690 V: 100 A
• Power dissipation per pole (max): 12 W
• Rated operational power AC23A 400 V: 90 kW
• Rated operational power AC23A 690 V: 90 kW
• Conditional short-circuit current (rms): 100 kA
• Making capacity AC23A 400 V: 1600 A
• Breaking capacity AC23A 400 V: 1280 A
• Mechanical life: 10000 cycles
• Terminal tightening torque (max): 13 Nm
• Operating temperature: -25 to 55 °C
• Storage temperature: -40 to 70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GE0160B three-pole switch disconnector with BS fuse holder
• Downloadable product datasheet
• Basic installation and safety information

Applications

• Load isolation and switching in industrial control panels
• Motor feeders and distribution circuits requiring AC-23A duty
• Panelboard and switchboard incomers up to 160 A Ith
• HVAC, pumping and process equipment mains isolation
• Maintenance isolation and safe circuit disconnection

Safety note: Install and operate only by qualified personnel. Isolate all supplies before work, select suitable BS fuses, and observe the specified torque, IP20 limitations and IEC/EN 60947 requirements.
