GX3292U25 - 4 POLE 2 POS. CONTROL SWITCH GX3292U25 F

Why Choose the GX3292U25?

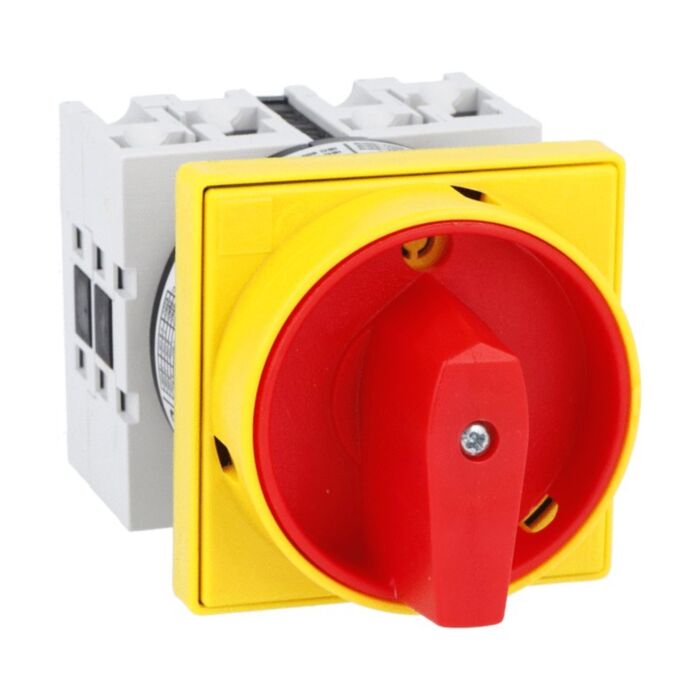

The Lovato GX3292U25 rotary cam ON/OFF switch delivers reliable four-pole isolation for industrial control and power circuits. Part of the GX series with a square-shaped contact block, this GX32 designation device offers 32 A Ith performance. Designed for front mounting, it features a high-visibility red/yellow handle padlockable in 0, supplied with protection covers and a 65 x 65 mm front plate for clean, consistent panel integration.

Built for durability, the GX rotary ON/OFF switch offers IP65 frontal protection, a rated impulse withstand voltage of 6 kV, and dependable operation from -25 to +55 °C. The U25 front-mounting configuration suits new builds or upgrades. Conformity to IEC/EN/BS 60947 series, IEC/EN/BS 61058-1, and UL/CSA standards supports safe, compliant isolation across control panels and equipment where clear, secure switching is essential.

Key Benefits

• Four-pole ON/OFF switching for clear, reliable circuit isolation.
• 32 A Ith conventional free air thermal current capacity.
• U25 front mounting with red/yellow handle for visibility.
• Padlockable in 0 position to support lockout procedures.
• IP65 frontal sealing resists dust and low-pressure water jets.
• Rated impulse withstand voltage Uimp 6 kV for resilience.
• Operates from -25 to +55 °C for varied environments.
• Complies with IEC/EN/BS 60947 and 61058-1 standards.

Technical Specification

• Product type designation: GX32
• Rated impulse withstand voltage Uimp: 6 kV
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• IP degree (frontal): IP65

What’s Included

• GX series rotary cam ON/OFF switch assembly (4-pole, 32 A)
• Red/yellow front handle, padlockable in 0
• 65 x 65 mm front plate
• Protection covers for the front assembly

Applications

• Main ON/OFF isolation on industrial control panels
• Power switching for multi-pole circuits up to 32 A Ith
• Machine and equipment isolation with panel-front operation
• Building services panels and distribution boards requiring clear disconnection
• OEM panel builds and upgrades using front-mounted controls

Safety note: Installation should be performed by qualified personnel. Isolate and verify absence of voltage before work, apply lockout where required, and ensure correct enclosure and sealing to maintain the stated IP65 frontal rating.
