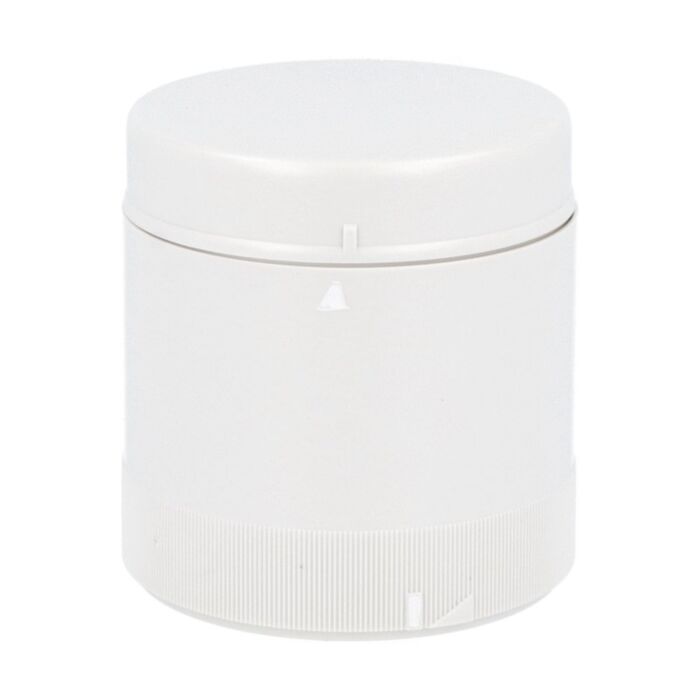

8LT7S1BG - BUZZER ELEMENT 24VAC/DC 16 SOUNDS
MPN: 8LT7S1BG
Special Price
£128.48
£107.07
Regular Price
£214.13
Why Choose the 8LT7S1BG?
The Lovato 8LT7S1BG is a modular signal tower sound module designed for dependable audible status indication. Sized Ø70 mm and powered by 24VAC/VDC, it provides 16 tones with a maximum 90 dB output for clear alerts. Offering pulsed or continuous operation, it is supplied complete with cover and features a grey polycarbonate housing with IP65 protection for harsh industrial environments.
Part of the 8LT7 series, this modular sound module integrates seamlessly into signal tower assemblies and delivers reliable performance from -20 to +50 °C. Conforming to IEC/EN 60947-5-1, IEC/EN 60947-1, UL508 and CSA C22.2 n°14, it weighs 240 g and is finished in grey. Its 24VAC/VDC capability and IP65 sealing suit process, machinery, and building services signalling.
Key Benefits
- Modular Ø70 mm design integrates with Lovato 8LT7 signal towers.
- Sixteen tones up to 90 dB for clear, versatile audible alerts.
- Pulsed or continuous operation to match application requirements.
- IP65 protection against dust and water ingress.
- 24VAC/VDC supply simplifies control panel integration.
- Grey polycarbonate housing for robust, dependable service.
- Operates from -20 to +50 °C for reliable performance.
- Supplied complete with cover for straightforward assembly.
Technical Specification
- Weight: 240 g
- Operating temperature: -20 to +50 °C
What’s Included
- 8LT7S1BG sound module (grey) with cover
- Basic installation information
- Protective packaging
Applications
- Machine status and fault alarms
- Process line and conveyor signalling
- Building services and plant room alerts
- Warehouse and logistics notification
Frequently Asked Questions
What supply voltage does the Lovato 8LT7S1BG require?
The module operates on 24VAC/VDC supply. Ensure your control system provides the rated voltage.
How loud is the unit and how many tones are available?
It provides up to 90 dB with 16 sound tones. Choose pulsed or continuous operation to suit your application.
Is it suitable for dusty or wet environments?
Yes, the IP65 protection rating guards against dust and water jets. Maintain correct assembly to retain the rating.
What are the operating temperature limits?
The specified operating temperature range is -20 to +50 °C.
Which standards does it conform to?
It conforms to IEC/EN 60947-5-1, IEC/EN 60947-1, UL508 and CSA C22.2 n°14.
Safety note: Installation should be performed by qualified personnel. Isolate the 24VAC/VDC supply before work, operate within the stated ratings and temperature range, and assemble correctly to maintain IP65 protection.
| Manufacturer Part Number | 8LT7S1BG |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975218723 |
