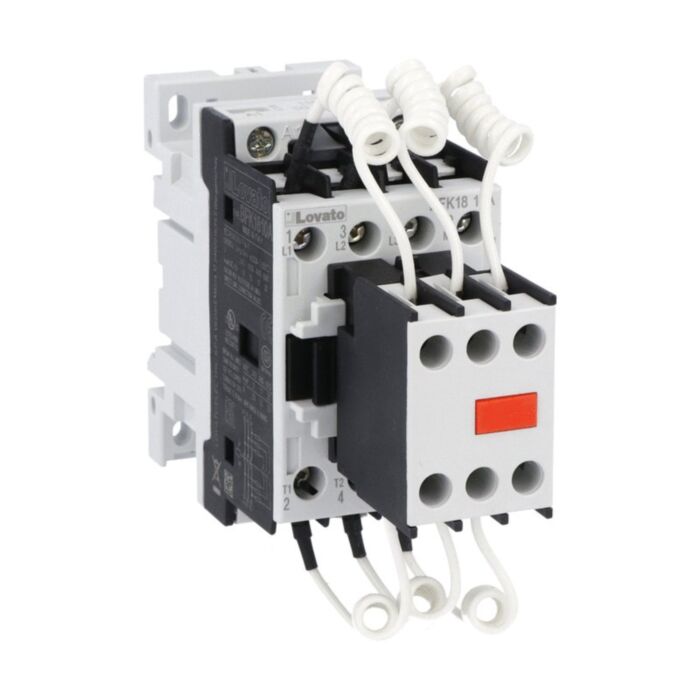

BFK1810A110 - 3P CONTACTOR 15KVAR 110V 50/60HZ

Why Choose the BFK1810A110?

Lovato BFK1810A110 is a contactor for power factor correction with an AC control circuit, designed for dependable capacitor bank switching. It integrates limiting resistors to curb inrush and uses a 110 VAC 50/60 Hz coil for straightforward control integration. The 3-pole device delivers 15 kvar at 400 V and includes a 1NO auxiliary contact. Convenient screw or 35 mm DIN rail mounting speeds panel building and retrofits.

Built for demanding environments, the BFK18 series offers 690 V rated insulation and 6 kV impulse withstand, with Ith 32 A for robust performance. Mechanical life reaches 20,000,000 cycles, and operation is specified from -50 to 70 °C up to 3000 m altitude. Conforms to IEC/EN/BS 60947-1 and 60947-4-1, UL 60947-1/-4-1, and CSA C22.2 n° 60947-1/-4-1 for assured compliance.

Key Benefits

• Built-in limiting resistors for controlled capacitor switching and reduced inrush.
• 15 kvar at 400 V supports common power factor correction steps.
• 110 VAC 50/60 Hz coil suits standard industrial control supplies.
• 3-pole contactor with integrated 1NO auxiliary contact for signalling.
• High dielectric strength: Ui 690 V and Uimp 6 kV.
• Wide -50 to 70 °C operating range, up to 3000 m altitude.
• Flexible screw or 35 mm DIN rail mounting for easy installation.
• Long mechanical life of 20,000,000 cycles to maximise uptime.

Technical Specification

• Product type designation: BFK18
• Number of poles: 3
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 32 A
• Terminal tightening torque: 1.5 to 1.8 Nm
• Weight: 418 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BFK1810A110 power factor correction contactor
• Built-in limiting resistors
• Integrated 1NO auxiliary contact
• Technical documentation

Applications

• Power factor correction panels and automatic capacitor banks
• Industrial switchboards and distribution boards
• OEM equipment with 110 VAC control circuits
• Motor control centres incorporating PFC stages

Safety note: Installation and maintenance must be performed by qualified personnel. Isolate power and discharge capacitors before work, tighten terminals to 1.5–1.8 Nm, and operate within the specified ratings and environmental limits.
