BFK0910A230 - 3P CONTACTOR 7 5KVAR 230V 50/60HZ
MPN: BFK0910A230
Special Price
£60.24
£50.20
Regular Price
£100.39
Why Choose the BFK0910A230?

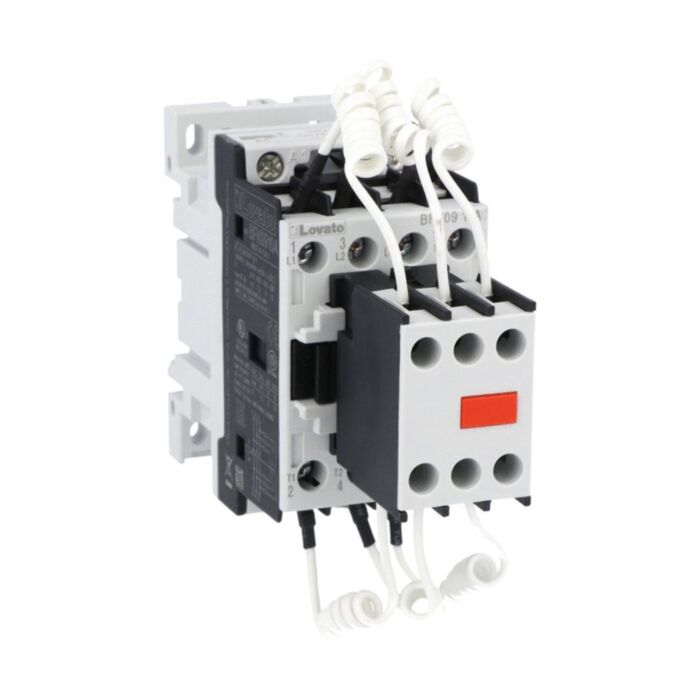

The Lovato BFK0910A230 is a contactor for power factor correction with an AC control circuit, engineered for dependable capacitor switching. It incorporates limiting resistors and delivers 7.5kvar at 400V, driven by a 230VAC 50/60Hz coil. A three-pole design with a built-in 1NO auxiliary contact and versatile screw or 35mm DIN rail mounting makes integration straightforward across panels and OEM assemblies.
Rugged electrical ratings support demanding environments: Ui 690V, Uimp 6kV and Ith 25A, with mechanical life to 20,000,000 cycles. Operates from -50 to 70°C, stores -60 to 80°C, and is suitable up to 3000m altitude, pollution degree 3. Conforms to IEC/EN/BS 60947-1 and 60947-4-1, plus UL and CSA equivalents, ensuring reliable, standards-compliant performance in UK industrial installations.
Key Benefits
- Built-in limiting resistors optimise capacitor switching for power factor correction.
- 230VAC 50/60Hz coil suits common AC control circuits and panels.
- Rated 7.5kvar at 400V for compact PFC stages.
- Three-pole main contacts with integrated 1NO auxiliary for signalling.
- High insulation (Ui 690V) and impulse withstand (Uimp 6kV) capability.
- Long mechanical life of 20,000,000 cycles reduces maintenance.
- Wide -50 to 70°C operating range; up to 3000 m altitude.
- Flexible screw or 35mm DIN rail mounting simplifies installation.
Technical Specification
- Product type designation: BFK09
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 25 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 416 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BFK0910A230 contactor unit
- Integrated limiting resistors
- Built-in 1NO auxiliary contact
- 230VAC 50/60Hz coil pre-fitted
Applications
- Power factor correction capacitor banks up to 7.5kvar at 400V
- Industrial AC control panels requiring PFC contactors
- OEM equipment with 230VAC control circuits
- Electrical distribution boards with DIN rail mounting
Frequently Asked Questions
What control voltage does the coil require?
The coil is rated at 230VAC and operates at 50/60Hz.
What is the reactive power rating at 400V?
It is rated for 7.5kvar at 400V, suitable for PFC capacitor stages.
How can this contactor be mounted?
It supports screw mounting or 35mm DIN rail mounting.
Does it include auxiliary contacts?
Yes, it has a built-in 1NO auxiliary contact.
Which standards does it conform to?
IEC/EN/BS 60947-1 and 60947-4-1, plus UL and CSA equivalents.
Safety note: Install and commission only by qualified personnel. Always isolate power, verify complete capacitor discharge, and follow applicable standards and the specified ratings before working on the equipment.
| Manufacturer Part Number | BFK0910A230 |
|---|---|
| Manufacturer | Lovato |
| Barcode | 8013975163047 |
| Coil Voltage | 230V |
