7T.81.0.000.2301 Finder Panel thermostat 1pole 10A NO
MPN: 7T.81.0.000.2301
Alt. SKU: 7T8100002301
Special Price
£14.44
£12.03
Regular Price
£20.63
Why Choose the Finder 7T.81 Panel Thermostat

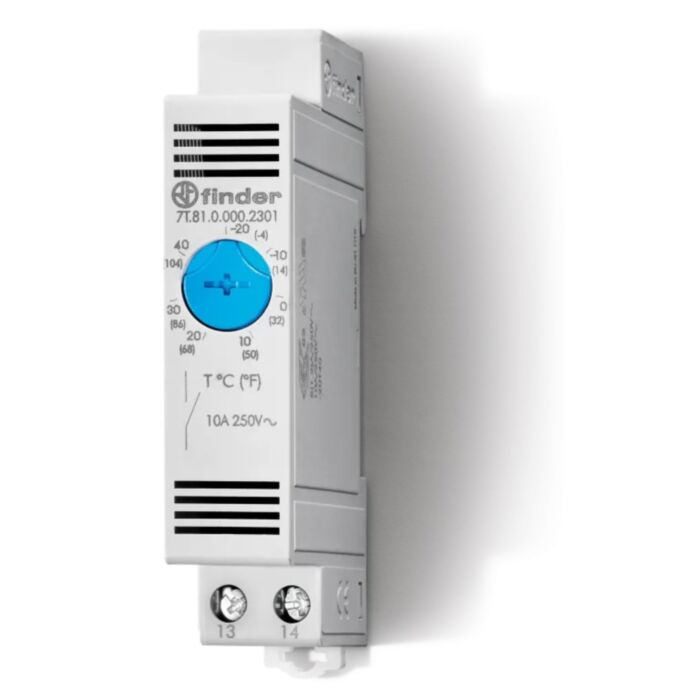

The Finder 7T.81.0.000.2301 is a compact panel thermostat for enclosure ventilation control. It uses a snap action bimetal sensor to close a 1 NO contact when the panel temperature rises above the set point, automatically switching on fans or signalling a controller. When the temperature falls below the set point the contact opens again, protecting equipment from heat build up.
Designed for 35 mm DIN rail mounting and only 17.5 mm wide, it saves space in control panels. The front set dial provides a clear temperature scale, and screw terminals make wiring straightforward. It is rated up to 10 A at 250 V AC for typical fan loads inside enclosures.
Key Features
- Ventilation thermostat with 1 NO contact that closes on temperature rise.
- Set range: typically minus 20 to plus 40 Â CC for this version.
- Contact rating: up to 10 A at 250 V AC for fan and alarm loads.
- Snap action bimetal sensor for long electrical life and reliable switching.
- 17.5 mm slim body, DIN rail 35 mm EN 60715 mounting.
- Screw terminals for secure, simple wiring inside panels.
Technical Specifications
- Manufacturer: Finder
- Series: 7T panel thermo hygrostats and thermostats
- Type: 7T.81
- Model: 7T.81.0.000.2301
- Function: Ventilation control thermostat, closes on temperature rise
- Contacts: 1 NO, AgNi
- Rated load: 10 A at 250 V AC
- Adjustment range: approx. minus 20 to plus 40 Â CC
- Differential: typically 7 K ± 4 K
- Connection: Screw terminals
- Mounting: 35 mm DIN rail EN 60715
- Width: 17.5 mm
- Housing protection: IP20, for use inside enclosures
- Typical use: Control of enclosure fans and alarms when panel temperature rises
Applications
- Switching enclosure fans on when internal temperature exceeds the set point.
- Over temperature signalling to PLC or alarm modules.
- General control panel thermal management to prolong component life.
Frequently Asked Questions
- Does it switch on rising or falling temperature
- What temperature range can I set
- What loads can I switch
- How does it mount
- Is there a heating version
Trusted By Panel Builders
"Slim, easy to set dial and reliable snap action switching make the 7T.81 a go to for enclosure fans." Control Panel Engineer, UK
Frequently Asked Questions
How is this product installed or mounted?
It is designed for 35 mm DIN rail EN 60715 installation, making it suitable for neat, modular wiring in control panels.
What standards or safety ratings are stated for this product?
Relevant ratings are listed in the technical specifications, including: Adjustment range approx. minus 20 to plus 40  CC; Differential typically 7 K ± 4 K. Refer to the manufacturer marking and datasheet for variant-specific approvals.
| Manufacturer Part Number | 7T.81.0.000.2301 |
|---|---|
| Range | 7T |
| Manufacturer | Finder |
| Packed Quantity | 1 |
| Barcode | 8012823366869 |
| Alternative Product SKU | 7T8100002301 |
