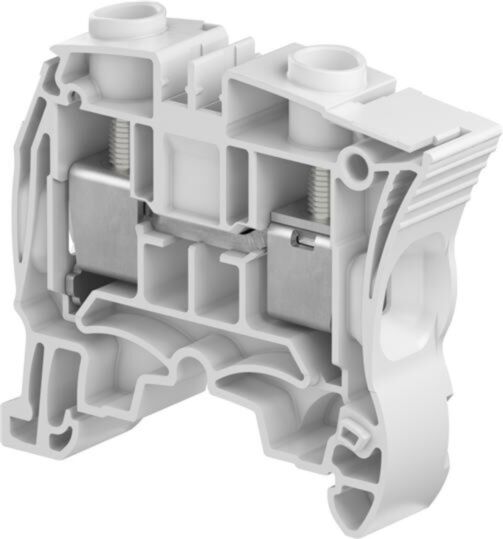

ZS25 - 25mm SCREW TERMINAL GREY
MPN: 1SNK512010R0000
Alt. SKU: ZS25
Special Price
£1.68
£1.40
Regular Price
£2.80
ZS25 - 25mm SCREW TERMINAL GREY is available to buy in increments of 1
Why Choose Terminal Blocks?
Terminal blocks provide secure, modular connections for managing electrical conductors within control panels and automation equipment. They simplify wiring, improve safety, and ensure reliable operation in industrial systems.
Integration
Designed for use in electrical panels and automation systems where reliability and modularity are essential.
What Customers Say
“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead
Key Features
- Industrial-grade durability
- Consistent and safe operation
- Optimised for control panel use
- Compatible with common DIN rail configurations
Comparison with Similar Products
This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.
Technical Specifications
- Block function: Feed-Through
- Product type: Screw Clamp Terminal Block
- Colour: Grey
- Pitch: 12 mm [ .472 in ]
- Number of positions: 2
- Number of Circuits :: 1
- Gauge Type :: A6-B6
- Number of Levels :: 1
- Short-Time Withstanding Current Rating @ 1s (A):: 1920
- Voltage Rating (CSA) (V):: 600
- Voltage Rating (IEC) (V):: 1000
- Dielectric Withstanding Voltage (Max) (V):: 2200
- Current Rating (CSA) (A):: 100
- Current Rating (UL) (A):: 100
- Current Rating (IEC) (A):: 76
- Impulse Withstanding Voltage Rating (IEC) (V):: 8000
- Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V):: 600
- Power Loss (W):: 2.4
- Operating Voltage (VAC):: 600
- Product Weight :: 21.4 g [ .843 oz ]
- Termination Method to Wire & Cable :: Screw Terminal
- Mounting: DIN Rail
- Housing material: Polyamide
- Product Height :: 56.1 mm [ 2.209 in ]
- Product Length :: 48.8 mm [ 1.921 in ]
- Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (mm²):: .5 - 16
- Main Circuit Capacity - 1 Flexible Conductor per Screw Clamp (mm²):: .5 - 25
- Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (AWG):: 24 - 8
- Main Circuit Capacity - 1 Non-Insulated Ferrule per Screw Clamp (mm²):: .5 - 16
- Main Circuit Capacity - 1 Non-Insulated Ferrule per Screw Clamp (AWG):: 24 - 4
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (AWG):: 24 - 3
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²):: .5 - 25
- Main Circuit Capacity - 2 Flexible Conductors per Screw Clamp (mm²):: .5 - 10
- Main Circuit Capacity - Twin Ferrule per Screw Clamp (AWG):: 20 - 10
- Main Circuit Capacity - Twin Ferrule per Screw Clamp (mm²):: .5 - 10
- Main Circuit Capacity - 2 Rigid Stranded Conductors per Screw Clamp (AWG):: 20 - 10
- Main Circuit Capacity - 2 Rigid Stranded Conductors per Screw Clamp (mm²):: .5 - 10
- Wire Stripping Length :: 13.5 mm [ .531 in ]
- Tool Size :: 5.5 mm [ .217 in ]
- Product Depth :: 48.8 mm [ 1.921 in ]
- Wire Size (AWG):: 3
- Wire Size (mm²):: 25
- Installation Temperature Range :: -5 - 40 °C [ 23 - 104 °F ]
- Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
- Circuit Application :: Power & Signal
- UL Flammability Rating :: UL 94V-0
- Ingress protection: IP20
Frequently Asked Questions
What is the terminal spacing?
The pitch between terminals is 12 mm [ .472 in ].
How is the terminal block mounted?
It is designed for DIN Rail mounting.
What IP rating does this terminal block have?
It has an ingress protection rating of IP20.
| Manufacturer Part Number | 1SNK512010R0000 |
|---|---|
| Height | 56.1mm |
| Width | 48.8mm |
| Depth | 48.8mm |
| Manufacturer | Entrelec |
| Packed Quantity | 1 |
| Barcode | 3472595120109 |
| Terminal Type | Feed-through |
| Terminal Size | 25mm |
| Colour | Grey |
| Type of electric connection | Screw connection |
| Alternative Product SKU | ZS25 |
