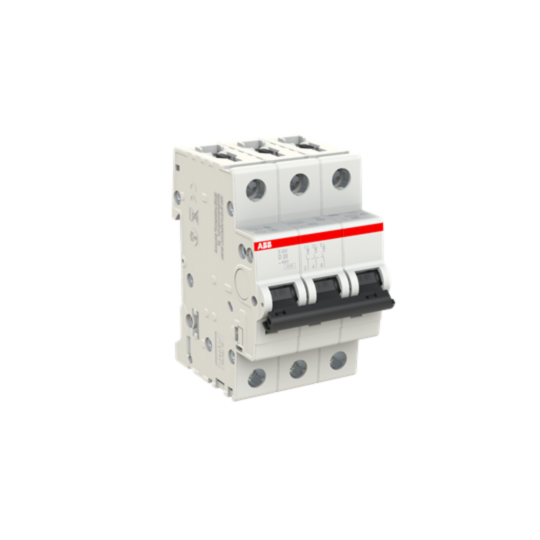

S203-D20 Miniature Circuit Breaker - 3P - D - 20 A
MPN: 2CDS253001R0201
Alt. SKU: S203-D20
Special Price
£51.38
£42.82
Regular Price
£93.42
Why Choose the S203-D20 [2CDS253001R0201]
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical Specification
- Function: Three-pole miniature circuit breaker with thermal and electromechanical tripping for overload and short circuit protection.
- Rated Current: 20 A.
- Rated Voltage: Up to 440 V AC, suitable for 230 V and 400 V systems.
- Breaking Capacity: Ultimate 20 kA at 230 V AC; 10 kA at 400/440 V AC.
- Contact Configuration: 3 poles (3P) with toggle actuator.
- Terminal Type: Screw terminals, failsafe bi-directional cylinder-lift, accommodating 0.75 to 35 mm² conductors.
- Electrical Endurance: 20,000 AC cycles.
- Mechanical Endurance: 20,000 cycles.
- Insulation and Test Voltage: Dielectric test at 2 kV (50/60 Hz, 1 min).
- Connection Capacity: Suitable for busbars (10/10 mm²) and flexible, rigid, stranded conductors.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the System pro M compact S200 miniature circuit breakers?
They provide overload and short circuit protection through thermal and electromechanical tripping mechanisms.
What are the available configurations for the S200 circuit breakers?
Configurations include 1P, 1P+N, 2P, 3P, 3P+N, and 4P.
What is the maximum breaking capacity of the S200 circuit breakers?
The ultimate breaking capacity is 20 kA at 230 V AC and 10 kA at 400/440 V AC.
What is the rated current for the S200 circuit breaker?
The rated current is 20 A.
What type of conductors can be accommodated by the S200 circuit breakers?
They can accommodate 0.75 to 35 mm² conductors, including flexible, rigid, and stranded types.
Is the S200 circuit breaker suitable for residential and industrial applications?
Yes, it complies with IEC/EN standards allowing use in residential, commercial, and industrial applications.
What are the electrical and mechanical endurance ratings for the S200 circuit breakers?
Electrical endurance is rated at 20,000 AC cycles and mechanical endurance at 20,000 cycles.
| Manufacturer Part Number | 2CDS253001R0201 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779530934 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 20A |
| Alternative Product SKU | S203-D20 |
