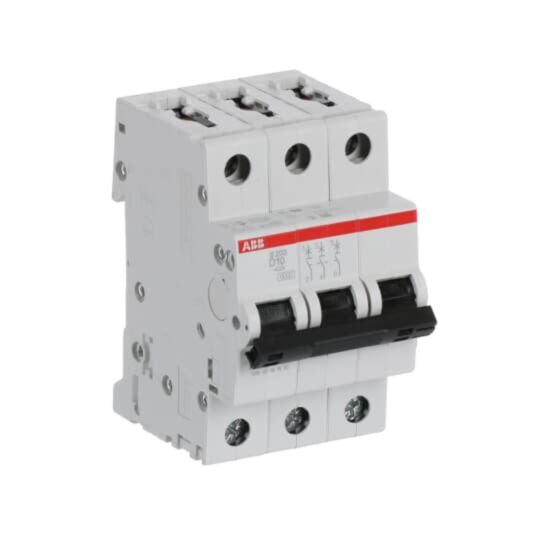

S203-D10 Miniature Circuit Breaker - 3P - D - 10 A
MPN: 2CDS253001R0101
Alt. SKU: S203-D10
Special Price
£51.43
£42.86
Regular Price
£93.50
Why Choose the S203-D10 [2CDS253001R0101]
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical Specification
- Function: 3-pole miniature circuit breaker with thermal and electromechanical tripping for overload and short circuit protection.
- Rated Current: Up to 63 A.
- Rated Voltage: 230/400 V AC (max. operating voltage UL/CSA: 110 V DC, 480Y/277 V AC).
- Breaking Capacity: Ultimate up to 20 kA (230 V AC), service up to 15 kA (230 V AC).
- Contact Configuration: 3 poles, toggle actuator with red ON/green OFF indication.
- Terminal Type: Screw terminals, failsafe bi-directional cylinder-lift.
- Connecting Capacity: Busbar 10/10 mm²; flexible 0.75–25 mm²; rigid and stranded 0.75–35 mm².
- Mechanical and Electrical Endurance: 20,000 cycles each.
- Tightening Torque: 2.8 N·m (18 in·lb UL/CSA).
- Insulation and Test Voltage: Dielectric test 2 kV at 50/60 Hz for 1 min; insulation group II actuator.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum rated current for the S200 miniature circuit breakers?
The maximum rated current for the S200 miniature circuit breakers is up to 63 A.
What are the available configurations for the S200 circuit breakers?
The S200 circuit breakers are available in configurations of 1P, 1P+N, 2P, 3P, 3P+N, and 4P.
What is the breaking capacity of the S200 circuit breakers?
The breaking capacity is ultimate up to 20 kA at 230 V AC and service up to 15 kA at 230 V AC.
Can auxiliary contacts be mounted on the S200 circuit breakers?
Yes, bottom-fitting auxiliary contacts can be mounted on the S200 to save 50% space.
What types of terminals are used in the S200 circuit breakers?
The S200 circuit breakers use screw terminals with failsafe bi-directional cylinder-lift.
What is the connecting capacity for the S200 circuit breakers?
The connecting capacity is busbar 10/10 mm²; flexible 0.75–25 mm²; rigid and stranded 0.75–35 mm².
What standards do the S200 circuit breakers comply with?
All S200 circuit breakers comply with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS253001R0101 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779530903 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 10A |
| Alternative Product SKU | S203-D10 |
