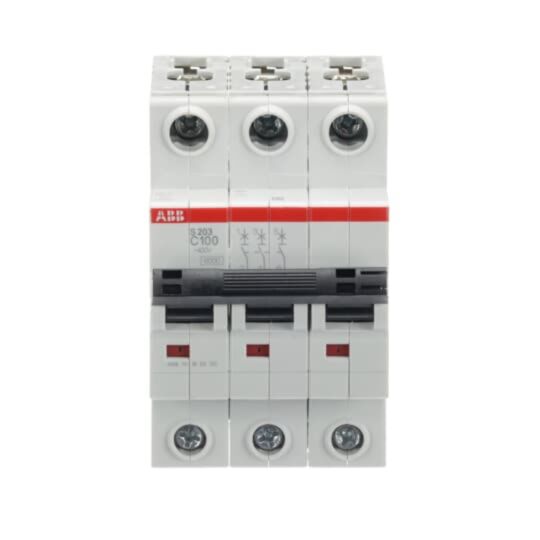

S203-C100 Miniature Circuit Breaker - 3P - C - 100 A
MPN: 2CDS253001R0824
Alt. SKU: S203C100
Special Price
£128.54
£107.12
Regular Price
£233.72
Why Choose the S203-C100 [2CDS253001R0824]
S203-C100 Miniature Circuit Breake C-Char., 6kA, 100A, 3P
Technical Specification
- Function: Miniature Circuit Breaker, C Characteristic.
- Rated Current: 100 A.
- Poles: 3P (three poles).
- Rated Ultimate Short-Circuit Breaking Capacity: 10 kA at 230 V AC, 6 kA at 400 V AC.
- Rated Service Short-Circuit Breaking Capacity: 6 kA at 400 V AC.
- Dielectric Test Voltage: 2 kV (50/60 Hz, 1 minute).
- Terminal Type: Screw, failsafe bi-directional cylinder-lift.
- Connecting Capacity: 2.5 to 50 mm² for rigid and stranded conductors; 4 to 35 mm² for flexible.
- Electrical Endurance: 10,000 AC cycles.
- Mechanical Endurance: 20,000 cycles.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the S203-C100 Miniature Circuit Breaker?
The rated current is 100 A.
How many poles does the S203-C100 have?
The S203-C100 has 3 poles (3P).
What is the short-circuit breaking capacity of this circuit breaker?
It has a rated ultimate short-circuit breaking capacity of 10 kA at 230 V AC and 6 kA at 400 V AC.
What is the connecting capacity for conductors?
The connecting capacity is 2.5 to 50 mm² for rigid and stranded conductors, and 4 to 35 mm² for flexible conductors.
What type of terminal does the S203-C100 use?
It uses a screw terminal with a failsafe bi-directional cylinder-lift.
What is the electrical endurance of the S203-C100?
The electrical endurance is rated for 10,000 AC cycles.
What standards and approvals does the S203-C100 conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS253001R0824 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779916288 |
| HS Code | 85362090 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 100A |
| Alternative Product SKU | S203C100 |
