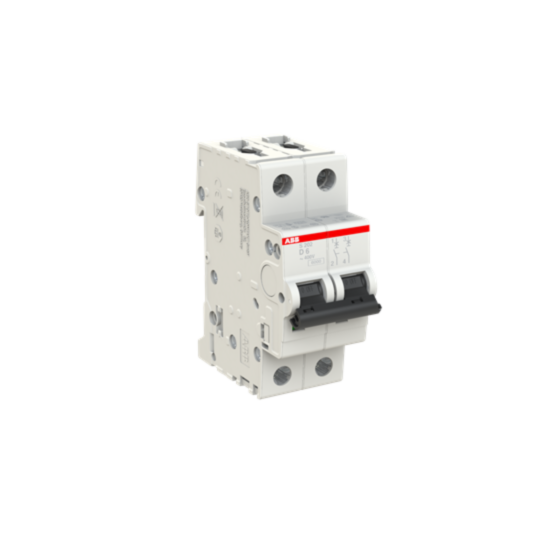

S202-D6 Miniature Circuit Breaker - 2P - D - 6 A
MPN: 2CDS252001R0061
Alt. SKU: S202-D6
Special Price
£37.44
£31.20
Regular Price
£68.08
Why Choose the S202-D6 [2CDS252001R0061]
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical Specification
- Function: Miniature circuit breaker with thermal and electromechanic tripping for overload and short circuit protection.
- Rated Current: Up to 63A (S202-D6 model is 6A).
- Voltage Rating: 230/400 V AC; also suitable for DC voltages up to 125 V DC.
- Contact Configuration: 2 poles (2P).
- Breaking Capacity: 20 kA at 230 V AC, 10 kA at 400 V AC.
- Terminal Type: Screw terminals, bi-directional cylinder-lift type.
- Connecting Capacity: Flexible and rigid conductors 0.75–35 mm²; busbar 10 mm².
- Mechanical and Electrical Endurance: 20,000 cycles each.
- Actuator: Toggle type, black with red ON/green OFF indication, sealable.
- Installation Size: Single module width per DIN 43880.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What are the tripping mechanisms used in the S200 miniature circuit breakers?
The S200 miniature circuit breakers utilise a delayed thermal tripping mechanism for overload protection and an electromechanic tripping mechanism for short circuit protection.
What is the maximum breaking capacity of the S200 series?
The S200 series has a breaking capacity of up to 20 kA at 230 V AC and 10 kA at 400 V AC.
What is the rated current range for the S200 miniature circuit breakers?
The rated current for the S200 series is up to 63A, with the S202-D6 model specifically rated at 6A.
What types of conductors can be connected to the S200 circuit breakers?
The S200 circuit breakers can connect flexible and rigid conductors ranging from 0.75 to 35 mm², and busbars of 10 mm².
What is the installation size for the S200 miniature circuit breakers?
The installation size is a single module width per DIN 43880.
Are the S200 miniature circuit breakers suitable for DC applications?
Yes, they are suitable for DC voltages up to 125 V DC.
What standards do the S200 miniature circuit breakers comply with?
All MCBs in the S200 range comply with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS252001R0061 |
|---|---|
| Packed Quantity | 5 |
| Barcode | 4016779530545 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 2 Pole |
| Amperage | 6A |
| Alternative Product SKU | S202-D6 |
