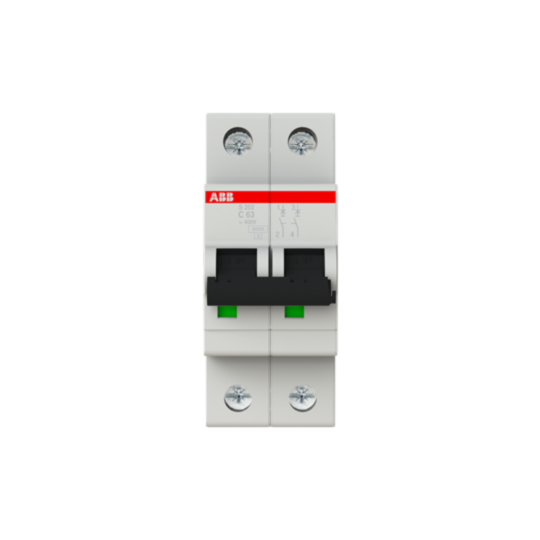

S202-C63 Miniature Circuit Breaker - 2P - C - 63 A
MPN: 2CDS252001R0634
Alt. SKU: S202C63
Special Price
£38.04
£31.70
Regular Price
£69.16
Why Choose the S202-C63 [2CDS252001R0634]
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical Specification
- Function: Overload and short circuit protection with thermal and electromechanic tripping mechanisms.
- Voltage Ratings: Up to 480Y/277 V AC and 110 V DC.
- Current Rating: Up to 63 A.
- Contact Configuration: 2 poles (2P) with red ON / green OFF indication.
- Breaking Capacity: Rated ultimate short-circuit breaking capacity up to 20 kA (230 V AC); rated service short-circuit breaking capacity up to 15 kA (230 V AC).
- Terminal Type & Size Range: Screw terminals; suitable for flexible and rigid conductors from 0.75 to 35 mm².
- Mechanical Endurance: 20,000 operating cycles.
- Electrical Endurance: 10,000 AC cycles.
- Actuator: Toggle type, black, sealable, with I/O marking.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum breaking capacity of the S200 miniature circuit breakers?
The rated ultimate short-circuit breaking capacity is up to 20 kA at 230 V AC.
What current ratings are available for the S200 MCBs?
The S200 MCBs are available with rated currents up to 63 A.
What types of tripping mechanisms do the S200 MCBs use?
They utilise a delayed thermal tripping mechanism for overload protection and an electromechanic tripping mechanism for short circuit protection.
Can I use the S200 MCBs in residential applications?
Yes, the S200 MCBs comply with relevant standards for use in residential, commercial, and industrial applications.
What is the terminal size range for the S200 MCBs?
The terminals are suitable for flexible and rigid conductors from 0.75 to 35 mm².
Is it possible to mount auxiliary contacts on the S200 MCBs?
Yes, a bottom-fitting auxiliary contact can be mounted to save 50% space.
What standards do the S200 MCBs comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS252001R0634 |
|---|---|
| Packed Quantity | 5 |
| Barcode | 4016779551052 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 2 Pole |
| Amperage | 63A |
| Alternative Product SKU | S202C63 |
