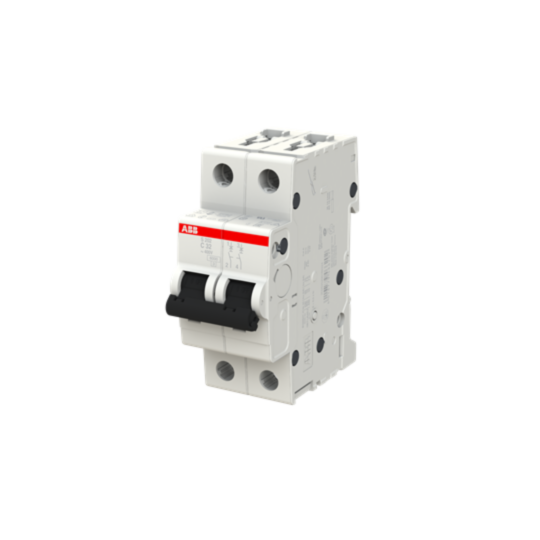

S202-C32 Miniature Circuit Breaker - 2P - C - 32 A
MPN: 2CDS252001R0324
Alt. SKU: S202-C32
Special Price
£33.48
£27.90
Regular Price
£60.88
Why Choose the S202-C32 [2CDS252001R0324]
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical Specification
- Function: Miniature circuit breaker with thermal overload and electromechanical short circuit tripping.
- Rated Current: Up to 63A, model S202-C32 is 32A.
- Contact Configuration: 2 poles (2P) with red ON / green OFF position indication.
- Voltage Rating: Up to 440 V AC; max operating voltage UL/CSA 480Y/277 V AC, 110 V DC.
- Breaking Capacity: Up to 20 kA (230 V AC), 10 kA (400 V AC), 10 kA (440 V AC).
- Terminal Type and Size: Screw terminals; accommodates flexible and rigid conductors from 0.75 to 35 mm².
- Mechanical Endurance: 20,000 operating cycles.
- Electrical Endurance: 10,000 AC cycles.
- Insulation and Dielectric Strength: Dielectric test voltage 2 kV (50/60 Hz, 1 min).
- Actuator Details: Toggle switch, black, sealable, marked I / O.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum rated current for the S200 miniature circuit breakers?
The S200 miniature circuit breakers have a maximum rated current of up to 63A.
What are the available configurations for the S200 circuit breakers?
The S200 circuit breakers are available in configurations of 1P, 1P+N, 2P, 3P, 3P+N, and 4P.
What is the breaking capacity of the S200 circuit breakers?
The breaking capacity is up to 20 kA at 230 V AC, 10 kA at 400 V AC, and 10 kA at 440 V AC.
What types of conductors can be accommodated by the S200 circuit breakers?
The S200 circuit breakers can accommodate flexible and rigid conductors from 0.75 to 35 mm².
Can auxiliary contacts be mounted on the S200 circuit breakers?
Yes, a bottom-fitting auxiliary contact can be mounted on the S200 to save 50% space.
What standards do the S200 circuit breakers comply with?
All S200 circuit breakers comply with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS252001R0324 |
|---|---|
| Packed Quantity | 5 |
| Barcode | 4016779466202 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 2 Pole |
| Amperage | 32A |
| Alternative Product SKU | S202-C32 |
