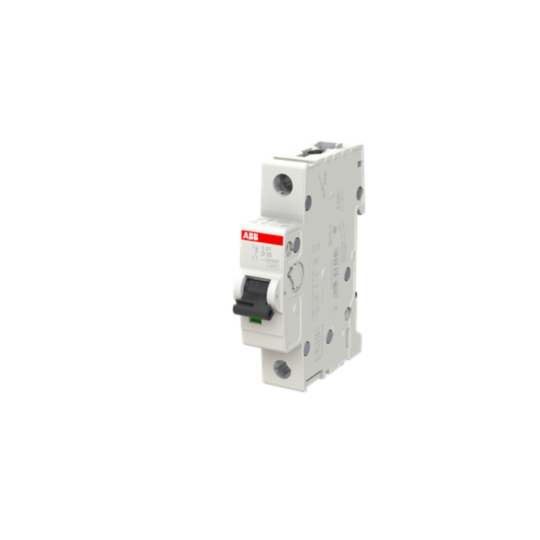

S201-D20 Miniature Circuit Breaker - 1P - D - 20 A
MPN: 2CDS251001R0201
Alt. SKU: S201D20
Special Price
£13.63
£11.36
Regular Price
£24.78
Why Choose the S201-D20 [2CDS251001R0201]
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical Specification
- Type: System pro M compact S200 miniature circuit breaker with thermal and electromechanic tripping.
- Rated Current: Up to 63 A.
- Rated Voltage: 230/400 V AC, 60 V DC.
- Breaking Capacity: Up to 10 kA at 230/400 V AC, 20 kA at 133 V AC and 24 V DC.
- Contact Configuration: 1 Pole (1P).
- Terminal Type: Screw terminals suitable for flexible/ferrule and rigid cables from 0.75 to 35 mm².
- Mechanical Endurance: 20,000 cycles.
- Electrical Endurance: 20,000 AC cycles.
- Impulse Withstand Voltage: 2 kV dielectric test voltage at 50/60 Hz for 1 minute.
- Contact Position Indication: Red ON / Green OFF.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What are the tripping mechanisms used in the S200 miniature circuit breakers?
The S200 miniature circuit breakers utilise a delayed thermal tripping mechanism for overload protection and an electromechanic tripping mechanism for short circuit protection.
What is the maximum breaking capacity of the S200 circuit breakers?
The S200 circuit breakers have a breaking capacity of up to 10 kA at 230/400 V AC.
What cable sizes can be connected to the S200 circuit breakers?
The S200 circuit breakers can accommodate flexible/ferrule and rigid cables from 0.75 to 35 mm².
Are the S200 circuit breakers suitable for industrial applications?
Yes, all MCBs in the S200 range comply with IEC/EN standards, making them suitable for residential, commercial, and industrial applications.
How many mechanical and electrical cycles can the S200 circuit breakers endure?
The S200 circuit breakers have a mechanical endurance of 20,000 cycles and an electrical endurance of 20,000 AC cycles.
Can auxiliary contacts be mounted on the S200 circuit breakers?
Yes, a bottom-fitting auxiliary contact can be mounted on the S200 to save 50% space.
What standards do the S200 circuit breakers comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS251001R0201 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 4016779530040 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 20A |
| Alternative Product SKU | S201D20 |
