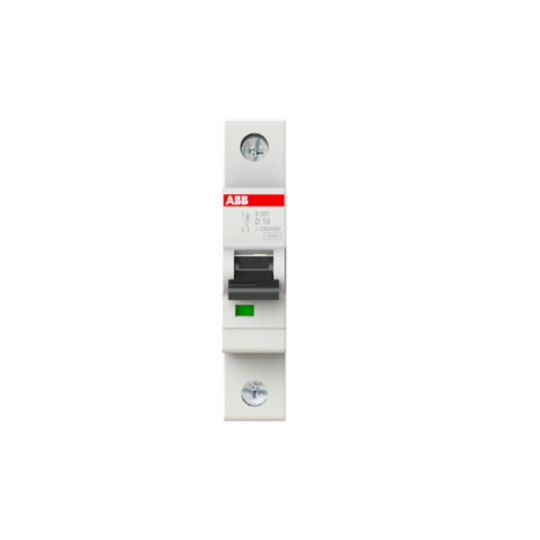

S201-D10 Miniature Circuit Breaker - 1P - D - 10 A
MPN: 2CDS251001R0101
Alt. SKU: S201D10
Special Price
£13.63
£11.36
Regular Price
£24.78
Why Choose the S201-D10 [2CDS251001R0101]
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical Specification
- Function: Miniature circuit breaker with thermal and electromechanical tripping for overload and short circuit protection.
- Rated Voltage: Up to 400 V AC, 60 V DC maximum operating voltage.
- Breaking Capacity: Up to 20 kA (133 V AC), 10 kA (230/400 V AC), 20 kA (24 V DC), 10 kA (60 V DC).
- Contact Configuration: 1 pole (1P).
- Terminal Type: Failsafe bi-directional cylinder-lift screw terminals, wire size 0.75 to 35 mm².
- Insulation and Dielectric Strength: Rated dielectric test voltage 2 kV (50/60 Hz, 1 min).
- Mechanical and Electrical Endurance: 20,000 cycles each.
- Actuator Type: Toggle switch with red ON / green OFF indication, sealable.
- Tightening Torque: 2.8 N·m (18 in·lb UL/CSA).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What are the tripping mechanisms of the S200 miniature circuit breakers?
The S200 miniature circuit breakers feature a delayed thermal tripping mechanism for overload protection and an electromechanical tripping mechanism for short circuit protection.
What is the maximum breaking capacity of the S200 MCBs?
The S200 MCBs have a breaking capacity of up to 20 kA at 133 V AC and up to 10 kA at 230/400 V AC.
What is the rated current range for the S200 circuit breakers?
The rated currents for the S200 circuit breakers range up to 63A.
Can auxiliary contacts be mounted on the S200 MCBs?
Yes, a bottom-fitting auxiliary contact can be mounted on the S200 to save 50% space.
What are the terminal specifications for the S200 MCBs?
The S200 MCBs feature failsafe bi-directional cylinder-lift screw terminals with a wire size capacity of 0.75 to 35 mm².
What standards do the S200 MCBs comply with?
All MCBs of the S200 range comply with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS251001R0101 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 4016779530019 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 10A |
| Alternative Product SKU | S201D10 |
