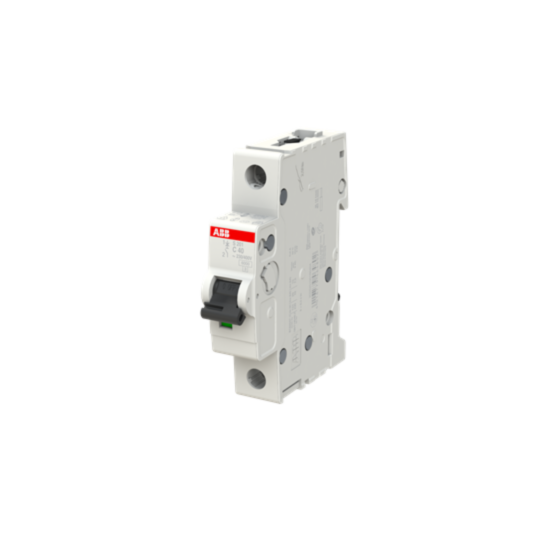

S201-C40 Miniature Circuit Breaker - 1P - C - 40 A
MPN: 2CDS251001R0404
Alt. SKU: S201-C40
Special Price
£13.02
£10.85
Regular Price
£23.66
Why Choose the S201-C40 [2CDS251001R0404]
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical Specification
- Function: Miniature circuit breaker with thermal overload and electromechanical short circuit trip.
- Rated Current: Up to 63A.
- Voltage Ratings: 230/400 V AC, max 60 V DC (UL/CSA max 480Y/277 V AC).
- Breaking Capacity: Up to 20 kA at 133 V AC, 10 kA at 230/400 V AC.
- Contact Configuration: 1 Pole (1P).
- Terminal Type: Screw terminals, connecting capacity up to 35 mm² rigid and 25 mm² flexible conductors.
- Insulation & Dielectric Strength: Dielectric test voltage 2 kV at 50/60 Hz for 1 min.
- Mechanical Endurance: 20,000 cycles.
- Electrical Endurance: 10,000 AC cycles.
- Contact Position Indication: Red ON / Green OFF for clear status.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum rated current for the S200 miniature circuit breakers?
The maximum rated current for the S200 miniature circuit breakers is up to 63A.
What types of tripping mechanisms are used in the S200 circuit breakers?
The S200 circuit breakers use a delayed thermal tripping mechanism for overload protection and an electromechanical tripping mechanism for short circuit protection.
What is the breaking capacity of the S200 circuit breakers?
The breaking capacity is up to 20 kA at 133 V AC and 10 kA at 230/400 V AC.
Can auxiliary contacts be mounted on the S200 circuit breakers?
Yes, bottom-fitting auxiliary contacts can be mounted on the S200 to save 50% space.
What is the terminal type and cable capacity for the S200 circuit breakers?
The S200 circuit breakers have screw terminals with a connecting capacity of up to 35 mm² for rigid conductors and 25 mm² for flexible conductors.
Are the S200 circuit breakers compliant with any standards?
Yes, all MCBs of the S200 product range comply with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS251001R0404 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 4016779464802 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 40A |
| Alternative Product SKU | S201-C40 |
