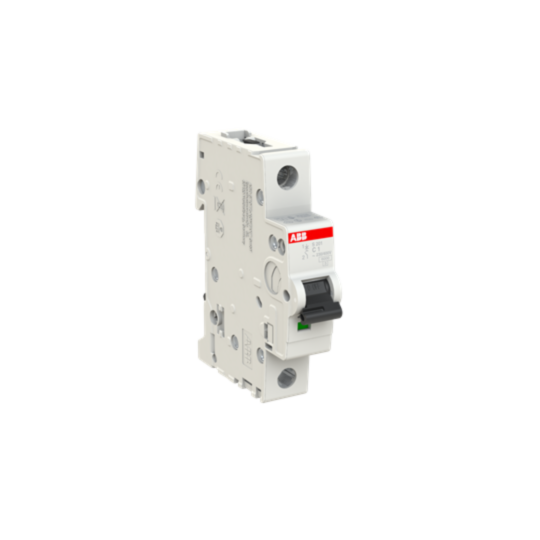

S201-C1 Miniature Circuit Breaker - 1P - C - 1 A
MPN: 2CDS251001R0014
Alt. SKU: S201C1
Special Price
£13.16
£10.97
Regular Price
£23.93
Why Choose the S201-C1 [2CDS251001R0014]
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical Specification
- Function: Miniature circuit breaker with thermal and electromechanical tripping for overload and short circuit protection.
- Voltage Ratings: Up to 480Y/277 V AC and 60 V DC.
- Current Rating: 1 A rated current.
- Contact Configuration: Single pole (1P) with Red ON / Green OFF indication.
- Breaking Capacity: Up to 20 kA at 133 V AC, 10 kA at 230/400 V AC.
- Terminal Type and Capacity: Failsafe bi-directional screw terminals; compatible with 0.75–35 mm² flexible and rigid conductors.
- Insulation and Dielectric Strength: Rated dielectric test voltage 2 kV (50/60 Hz, 1 min).
- Durability: Electrical and mechanical endurance rated for 20,000 cycles each.
- Mounting Size: Complies with DIN 43880 size 1 for panel installation.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What are the tripping mechanisms used in the S200 miniature circuit breakers?
The S200 miniature circuit breakers utilise a delayed thermal tripping mechanism for overload protection and an electromechanical tripping mechanism for short circuit protection.
What is the maximum breaking capacity of the S200 circuit breakers?
The S200 circuit breakers have a breaking capacity of up to 6 kA at 230/400 V AC.
What current ratings are available for the S200 series?
The S200 series is available with rated currents up to 63A.
Can I mount auxiliary contacts on the S200 circuit breakers?
Yes, bottom-fitting auxiliary contacts can be mounted on the S200 to save 50% space.
What conductor sizes are compatible with the S200 circuit breakers?
The S200 circuit breakers are compatible with 0.75–35 mm² flexible and rigid conductors.
What standards do the S200 circuit breakers comply with?
All MCBs of the S200 range comply with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077. See the manufacturer's data sheet for standards and approvals.
What is the mounting size for the S200 circuit breakers?
The S200 circuit breakers comply with DIN 43880 size 1 for panel installation.
| Manufacturer Part Number | 2CDS251001R0014 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 4016779523318 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 1A |
| Alternative Product SKU | S201C1 |
