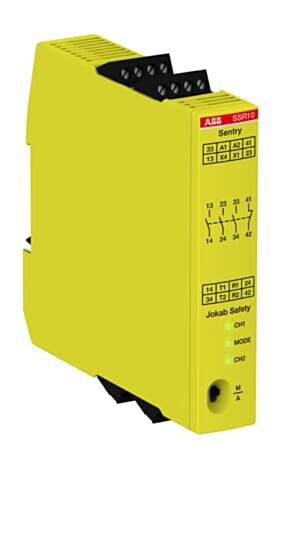

ABB SENTRY SSR10 24VDC 3no 1nc output
MPN: 2TLA010050R0000
Alt. SKU: SENTRY SSR10
Special Price
£158.96
£132.47
Regular Price
£187.02
This product replaces this item:
Why Choose the Sentry SSR10 [2TLA010050R0000]
Sentry SSR10 Safety relay with relay outputs 3NO+1NC, +24 VDC supply voltage and screw terminals. For monitoring of safety devices with contacts, 1 or 2 equivalent channels, and safety devices with OSSD outputs. Manual or automatic reset selectable by switch on front. Sentry safety relays cover various types of safety applications up to PLe / SIL3. Basic models provide reliable supervision of simpler safety functions, while universal models provide advanced features and high flexibility. Models with display offer preset configurations and extensive information to further simplify troubleshooting. Additional variants offer a high accuracy timer function of ± 1% and an adjustable time setting range from 0-999 s. High output current capacity of up to 6 A can save the use of an intermediary contactor. Multi-reset allows up to 10 safety relays connected to one reset light-button. All models are available with detachable push-in or screw terminals. Terminals and coding kit to mark removed terminals are available as accessories.
Technical Specification
- Function: Safety relay for monitoring safety devices with manual or automatic reset selectable by switch.
- Contact Configuration: 3 Normally Open (NO) + 1 Normally Closed (NC) relay outputs.
- Supply Voltage: 24 V DC rated control supply voltage.
- Operational Current: 5 A AC-15, 6 A DC-13 output current capacity.
- Degree of Protection: IP20 enclosure rating.
- Terminal Type and Size: Screw terminals, supporting wire sizes 0.2–3.3 mm² for single, 0.2–1.5 mm² for double conductors.
- Mounting: DIN rail TH35-15 and TH35-7.5 (IEC 60715).
- Tightening Torque: 0.7 N·m for terminal screws.
- Wire Stripping Length: 6.5 mm.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the Sentry SSR10 Safety Relay?
The Sentry SSR10 Safety Relay monitors safety devices with contacts and OSSD outputs, providing manual or automatic reset options.
What is the contact configuration of the relay outputs?
The relay outputs are configured as 3 Normally Open (NO) and 1 Normally Closed (NC).
What is the maximum output current capacity of the SSR10?
The maximum output current capacity is 6 A for DC-13 applications.
What types of terminals does the SSR10 use?
The SSR10 uses screw terminals that support wire sizes of 0.2–3.3 mm² for single conductors and 0.2–1.5 mm² for double conductors.
How is the SSR10 mounted?
The SSR10 can be mounted on DIN rail TH35-15 and TH35-7.5 as per IEC 60715 standards.
What is the degree of protection for the SSR10?
The SSR10 has an IP20 enclosure rating.
Where can I find conformity information for the SSR10?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2TLA010050R0000 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 7350024483284 |
| HS Code | 85364900 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Alternative Product SKU | SENTRY SSR10 |
