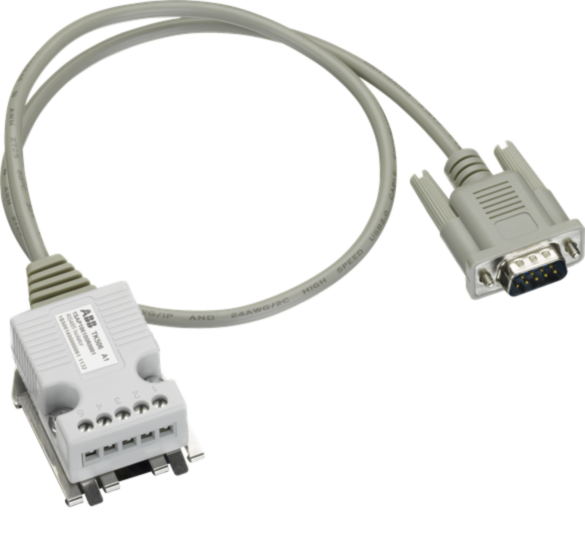

ABB RS485 isolator, Sub-D 9 poles / Terminal 5 poles for COM1
MPN: 1SAP186100R0001
Alt. SKU: TK506
Why Choose the Distributed Automation PLCs [1SAP186100R0001]
The TK506:AC500 RS485 Isolator features a D-Sub connector combined with a 5-pole terminal interface, providing galvanic isolation for RS485 communication lines. Designed to enhance signal integrity and protect equipment from ground loops and electrical noise, this isolator ensures reliable data transmission in industrial and commercial environments. Its robust construction and compatibility with standard RS485 networks make it an essential component for maintaining system stability and safeguarding sensitive control equipment.
Technical Specification
- Function: PLC - other devices.
- Category: Programmable Logic Controller.
- Connection Type: Screw Clamp.
- Weight: 0.08 kg.
- Insulation: RS485 Isolator.
- Terminal Configuration: D-Sub / 5 pole terminal.
- SKU: 1SAP186100R0001.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the TK506:AC500,RS485 Isolator?
The primary function is to serve as an isolator for PLC and other devices.
What type of connection does the TK506 use?
The TK506 uses a screw clamp connection type.
What is the weight of the TK506:AC500,RS485 Isolator?
The weight is 0.08 kg.
What is the terminal configuration of the TK506?
The terminal configuration is D-Sub with a 5 pole terminal.
Is there any conformity information available for this product?
See the manufacturer's data sheet for standards and approvals.
| PLC Range | AC500 |
|---|---|
| Barcode | 4016779877367 |
| Product Image | For Illustration Purposes Only |
| Manufacturer | ABB |
| Manufacturer Part Number | 1SAP186100R0001 |
| Module type | Cable |
| Alternative Product SKU | TK506 |
| Product Lead Time | Contact us for a delivery time before you order |
Write Your Own Review
AC500 PLC range
The AC500 PLC range provides a powerful and platform enabling you to create and design cost-effective, scalable, and highly flexible automation solutions with a range of benefits. This includes scalability achieved through a wide range of devices for the implementation and design of control task configurations and complex automation solutions. Additional benefits are action flexibility in a single integrated piece of software, and cost-effectiveness through a variety of I/O modules, CPUs, communication interface modules, communication modules, and accessories.
You can expect high-performance and memory capacities in networking capabilities provided advanced visualization, increased functionality, improved operating comfort, and highly individual client solutions. The AC500-eCo comes with the additional advantages of enhanced scalability, exceptional ease of handling, and increased flexibility through its approval for client use by globally accredited certification organizations. The result is a reliable and safe range that can be deployed on a global scale.
| The AC500 offers effective scalability through a wide variety of devices for the design and implementation of configurations suitable for controlling simple tasks and complex automation solutions. It provides flexibility in a single piece of integrated software that's cost-effective, with various I/O modules, CPUs, communication interface modules, communication modules, and accessories. ABB’s lifecycle policy and “all modules used on any CPUs concept” allows swift reactions, flexibility, and economical solutions, with the required reliability, security and ease needed to expand the automation system and meet new challenges. High levels of memory, performance, and networking capabilities allow for superior individual customer solutions. |
